Sill Cover

Sill Cover

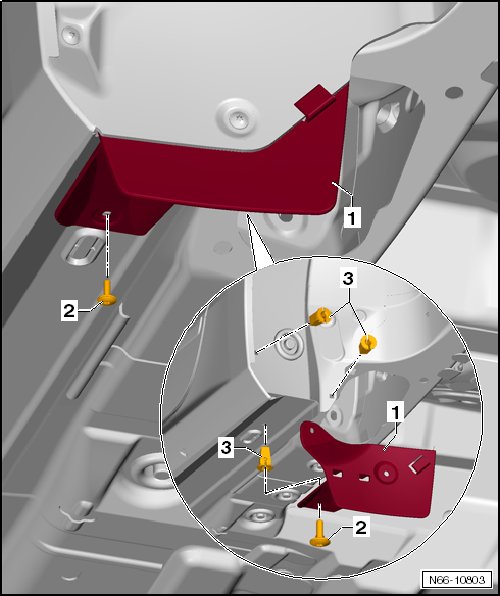

• The illustration shows the left side. The right side is identical.






Removing

- Loosen the rear wheel housing liner. Refer to => [ Rear Wheel Housing Liner ] Rear Wheel Housing Liner.

- Remove the sill panel cover - 1 - downward.

Installation

- Install the expanding rivet - 3 - (quantity: 3).

• The rear rear wheel housing liner is pre-installed.

- Position the sill panel cover. The rear wheel housing liner is inserted behind the tab.

- Install and tighten the bolt - 2 - to 2 Nm.

- Install the rear wheel housing liner. Refer to => [ Rear Wheel Housing Liner ] Rear Wheel Housing Liner.
