Power Mirror Switch: Service and Repair







Mirror Adjusting Switch (E43)

Driver side mirror adjustment switch (depending on the vehicle equipment level)

• Mirror Adjustment Switch (E43)

• Mirror Selector Switch (E48)

• Outside Mirror Heating Switch (E231)

• Mirror Folding Switch (E263)

• Mirror Adjustment Switch Illumination (L78)

The components listed above cannot be replaced separately.

- Replace the driver side mirror adjustment switch module if it is faulty.

• Turn off the ignition and all electrical consumers.

• Remove the key.

• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( trim removal wedge (3409) , screwdriver) will be positioned using commercially available adhesive tape.

Removing

- Remove the door trim panel.

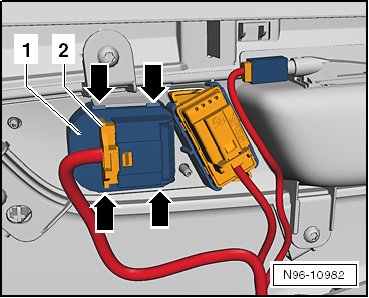

- Disconnect the connector - 2 -.






- Open the tabs - arrows - and remove the switch module - 1 - from the door trim panel.

Installing

Install in reverse order of removal.
