Engine, Securing to the Engine and Transmission Holder

• The engine can be secured to the engine and transmission holder (VAS 6095) using a universal mount or the engine support (3269). Use the engine support (3269) when working on the chain drive.

Special tools, testers and auxiliary items required

• Lifting Tackle (3033)

• Shop Crane - Load Cap = 700-1200 KG (VAS 6100)

• Engine and Transmission Holder (VAS 6095)

• Engine Support (3269)

Procedure

- Separate the transmission from the engine. Refer to => [ Engine and Transmission, Separating ] Engine and Transmission, Separating.

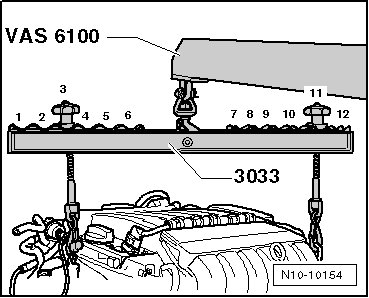

- Install the lifting tackle (3033) as shown and lift the engine using the shop crane - load cap = 700-1200 KG (VAS 6100) off of the engine-/gearbox jack (V.A.G 1383 A).






Vibration damper side: Position 3.

Flywheel side: Position 11.

Securing the engine to the engine and transmission holder (VAS 6095) using a universal mount.






Securing the engine to the engine and transmission holder (VAS 6095) using the engine support (3269).
