Adjusting Rear Camber






Adjusting Rear Camber

Special tools, testers and auxiliary items required

• Insert tool 18 (T10179)

- Loosen nut - A - of threaded connection of upper transverse link at subframe.






- Adjust camber by turning hex of eccentric bolt - arrow -.

• The maximum adjustment range is 90° to left or right of center position.

- Tighten the nut - A -.






- Use the socket wrench (T10179) for this.






Tighten the nut to 80 Nm using the socket wrench (T10179).

- Check the camber value again after tightening the nut - A -.

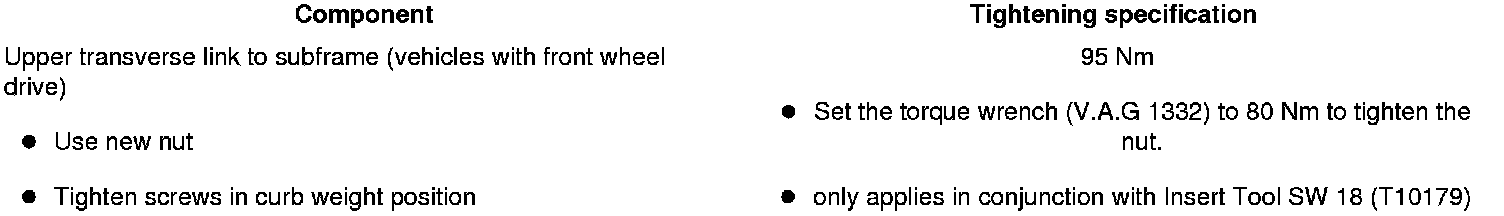

Tightening Specifications
