Evaluating Need for Wheel Alignment

Evaluating Need for Wheel Alignment

When Vehicle Alignment is Necessary

• Vehicle shows handling problems.

• There is an accident damage and components were replaced.

• Axle components have been removed or replaced.

• Tire wear patterns are uneven.

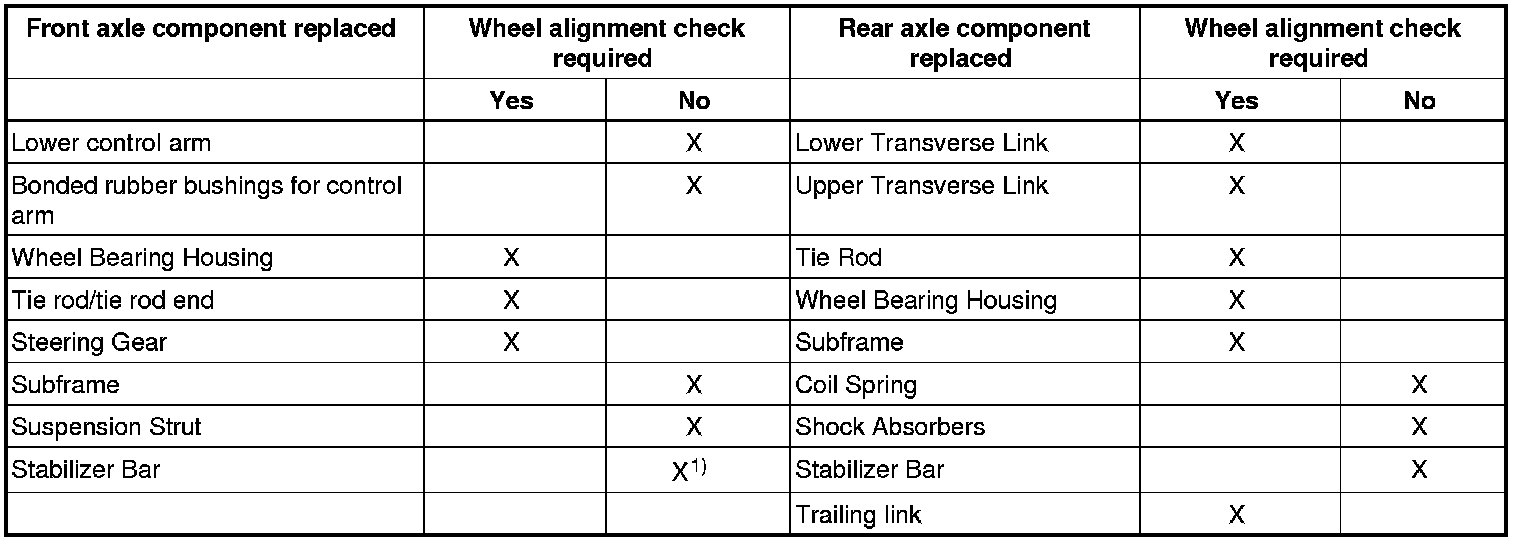

Components replaced






1)Requirement: The subframe and brackets must be secured before removal.

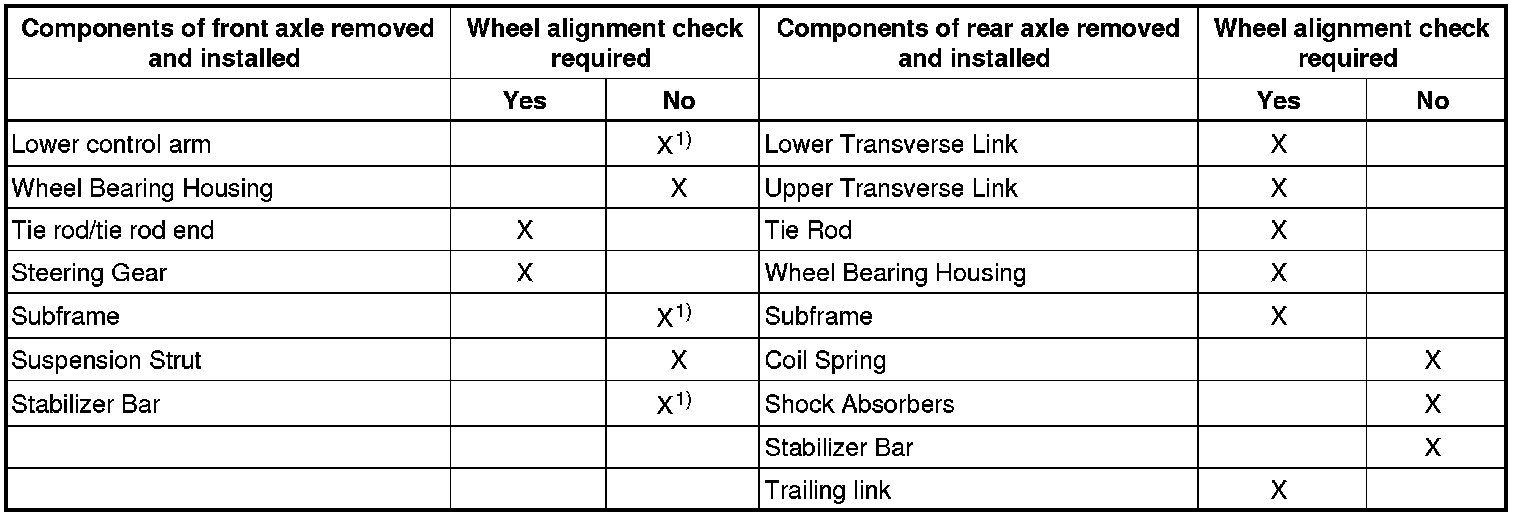

Components removed and installed






1)Requirement: The subframe and brackets must be secured before removal.
