Materials







Materials

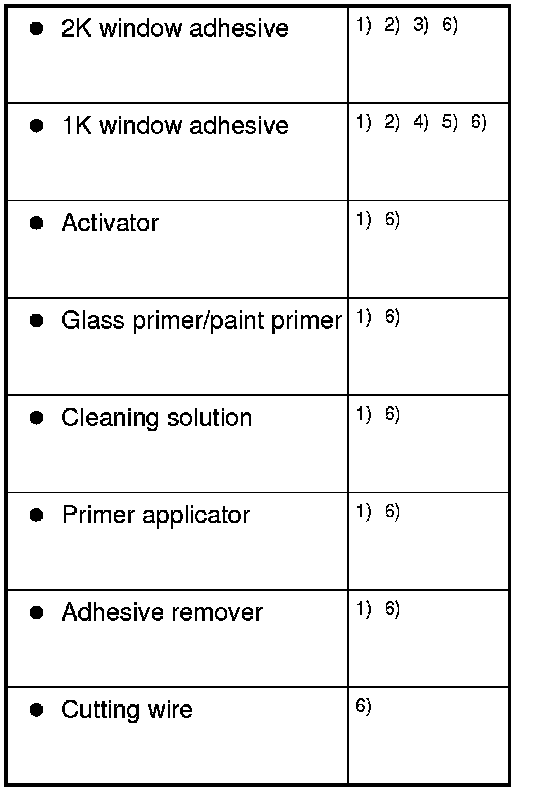

For the part numbers for the different materials, refer to the Parts Catalog.






1) Follow the manufacturer instructions supplied in the packaging.

2) Note the minimum curing time. Refer to => [ Minimum Curing Time for Bonded Windows ] Minimum Curing Time for Bonded Windows.

3) The double cartridge gun (VAS 5237) must be used with this material.

4) Warm with the heater cartridge (V.A.G 1939) according to manufacturer instructions.

5) Small 180 ml cartridge for sealing and/or when a 400 ml double cartridge is not enough.

6) For the part numbers of the different materials, refer to the Parts Catalog.
