Rear Window Assembly Overview

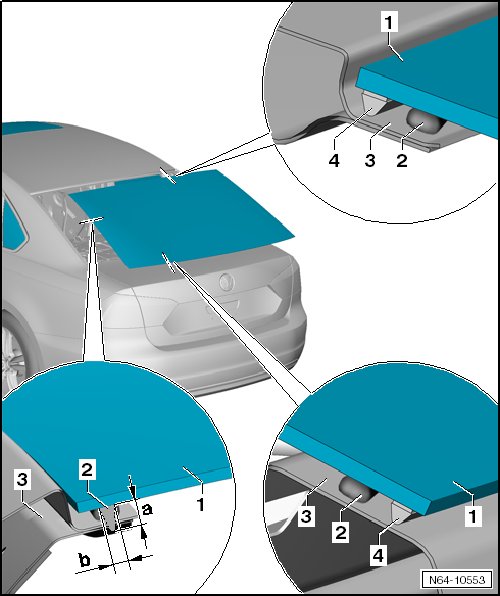

Rear Window Assembly Overview

1 Rear Window

• Removing and Installing, refer to => [ Rear Window ] Rear Window

2 PUR adhesive sealant

• Bead diameter: - Width b - = 7 mm - Height a - = 10 mm (including the precoating, residual material on the window and the window flange)

• Minimum curing time, refer to => [ Minimum Curing Time for Bonded Windows ] Minimum Curing Time for Bonded Windows

3 Body flange

4 Spacer
