Front Door Window Assembly Overview

Front Door Window Assembly Overview

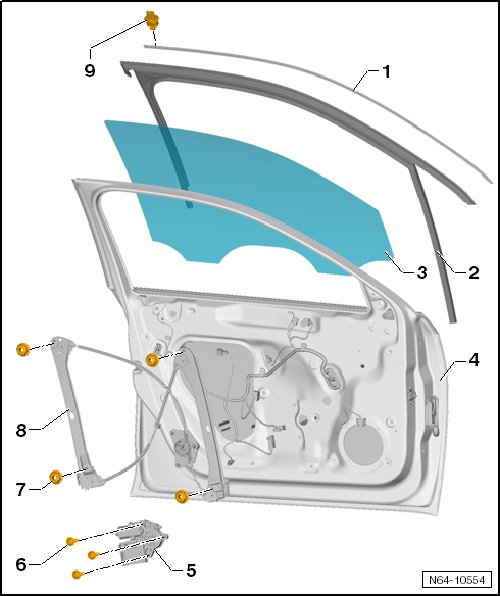

• The illustration shows the left side. The right side is identical.






1 Decorative strip

• Removing and Installing, refer to => [ Front Window Guide Decorative Strip Assembly Overview ] Front Window Guide Decorative Strip Assembly Overview

2 Window guide

• Removing and Installing, refer to => [ Front Window Guide ] Front Window Guide

3 Door window

• Removing and Installing, refer to => [ Front Door Window ] Front Door Window

4 Front door

5 Window regulator motor

• Removing and Installing, refer to => [ Front Window Regulator Motor ] Service and Repair

6 Bolt

• Quantity: 3

• Tightening specification: 3 Nm

7 Nut

• Quantity: 4

• Tightening specification: 8 Nm

8 Window regulator

• Removing and Installing, refer to => [ Front Window Regulator ] Service and Repair

9 Expanding clip
