Rear Side Windows Assembly Overview

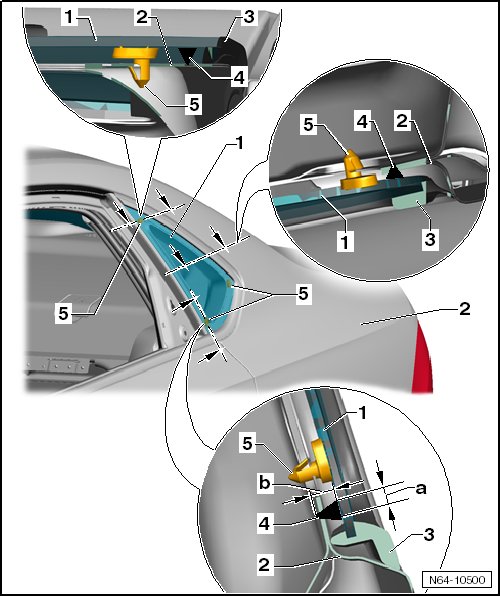

Rear Side Windows Assembly Overview






1 Side Window

• Remove side window => [ Rear Side Window ] Rear Side Window

2 Body flange

3 Seal

• Component part of side window.

4 PUR adhesive sealant

• Bead cross section: width = 6.5 mm - dimension a - height = 10 mm - dimension b - (including pre-coating, residual material on window glass and window flange)

• Minimum curing time => [ Minimum Curing Time for Bonded Windows ] Minimum Curing Time for Bonded Windows

5 Retaining clip

• Quantity: 3

• Disconnected with the cutting cord during removal
