Windshield Assembly Overview

Windshield Assembly Overview

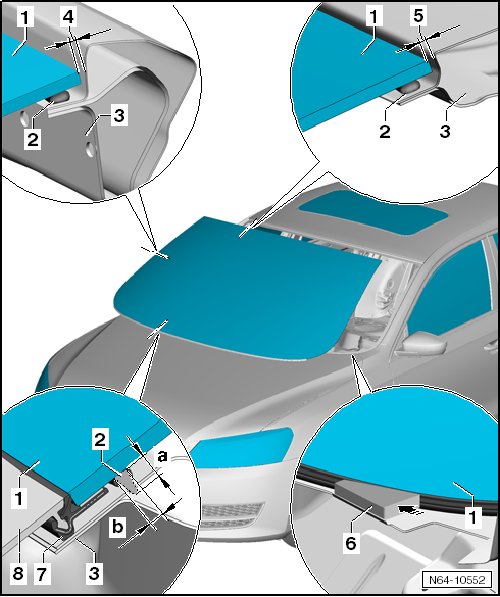

1 Windshield

• Removing and Installing, refer to => [ Windshield ] Windshield

2 PUR adhesive sealant

• Bead diameter: - Width b - = 7 mm - Height a - Height = 10 mm (including the precoating, residual material on the window and the window flange).

• Minimum curing time => [ Minimum Curing Time for Bonded Windows ] Minimum Curing Time for Bonded Windows

3 Body flange

4 Gap dimension

• Must be the same on the left and right sides

5 Gap dimension

• Must be even

6 Window adjuster

• 443 845 631 A

• Remove 2 hours after installing the windshield

7 Retainer

• Is a part of the windshield

8 Plenum chamber cover

• Must only be pulled out of binding profile by hand.

• Removing and Installing, refer to => [ Plenum Chamber Cover ] Plenum Chamber Cover
