Voltage stabilizer -J532-

Control modules in passenger compartment

Voltage stabilizer -J532-

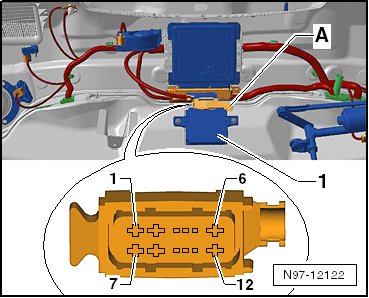

1 - Voltage stabilizer -J532-

- Component Location:
• behind the glove compartment

- Connectors from November 2009
• -A- 10-pin connector - T10sw

- Connector from May 2011
• -A- 12-pin connector - T12sw

Note::
• Component location RHD: on the left side next to the steering column
trim
