Voltage Stabilizer J532, Removing and Installing, LHD

Voltage Stabilizer J532, Removing and Installing, LHD

Removing:

- Remove the glove compartment.

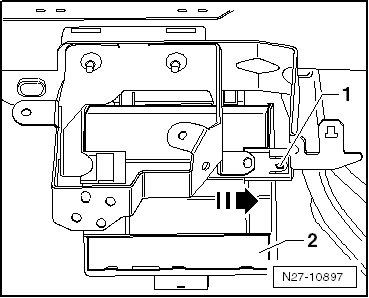

• The following illustration shows the voltage stabilizer in its bracket from behind.

- Disconnect the connector from the voltage stabilizer (J532).

- Press the button - 1 - and pull the voltage stabilizer (J532) - 2 -, together with its bracket, in - direction of arrow -.

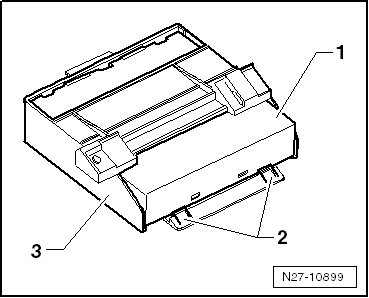

- Press the retainers - 2 - and remove the voltage stabilizer (J532) - 1 - from the bracket - 3 -.






Installing:

Installation is performed in the reverse order of removal. Note the following:

The voltage stabilizer (J532) must engage in its bracket securely when installing.

The voltage stabilizer bracket must click into place on its mount in the vehicle body when installing.
