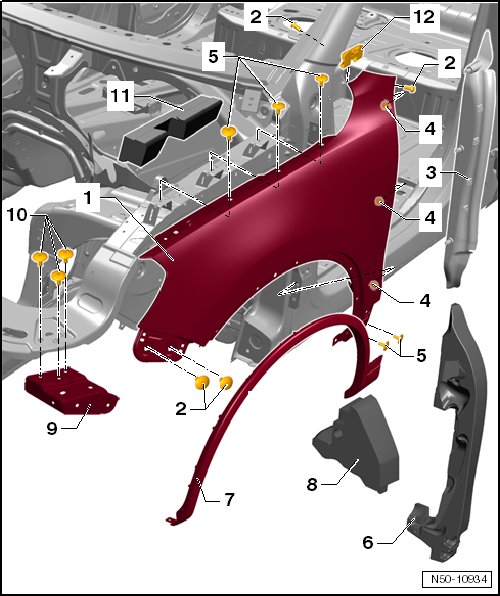

Front Fender Assembly Overview

Front Fender Assembly Overview

• The illustration shows a left fender. The right fender is identical.






1 Fender

2 Bolt

• A-pillar, quantity: 2

• Sill panel, quantity: 1

• Fender brace, quantity: 2

• Tightening specification: 6 Nm

3 Fender cover

• Engaged with fender, refer to => [ Fender Cover ] Fender Cover

4 Hex nut

• Quantity: 3

• Tightening specification: 6 Nm

5 Bolt

• Sill panel, quantity: 2

• Fender connecting piece, quantity: 3

• Tightening specification: 6 Nm

6 Insulation

• Placed in front of the cover

7 Wheel cover

8 Foam piece

• Inserted between the fender and the upper front longitudinal member

9 Fender brace

• Secured with bolts - 10 -

10 Bolt

• For fender brace

• Quantity: 2

• Tightening specification: 6 Nm

11 Foam piece

• Inserted between the fender and the upper front longitudinal member
