Solar Sensor: Service and Repair






Sunlight Photo Sensor (G107)

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removal

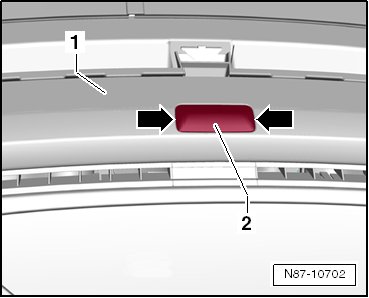

- Completely detach instrument panel - 1 -. and pull it forward several cm.

- Use the (3409) to unclip the sunlight photo sensor - 2 - on the right and left - arrows -.






- Disconnect the harness connector from sunlight photo sensor - 2 -.

Installation

- Install the sunlight photo sensor in the reverse order of removal.

- Install the instrument panel..

- After completing the repair, perform the following: basic setting, refer to => [ Checking and Adjusting Components ] Checking and Adjusting Components.
