Control Modules In Engine Compartment







Control modules in engine compartment

Auxiliary hydraulic pump control module -J922-

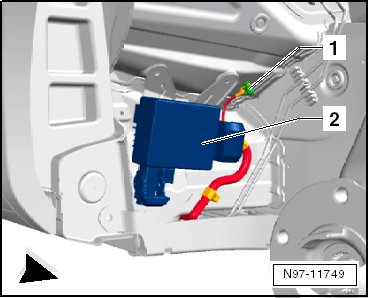

Component Location


1 - (683)Ground connection on right front side member
2 - Control unit for auxiliary hydraulic pump -J922- (1)
1) only for vehicles with hybrid drive

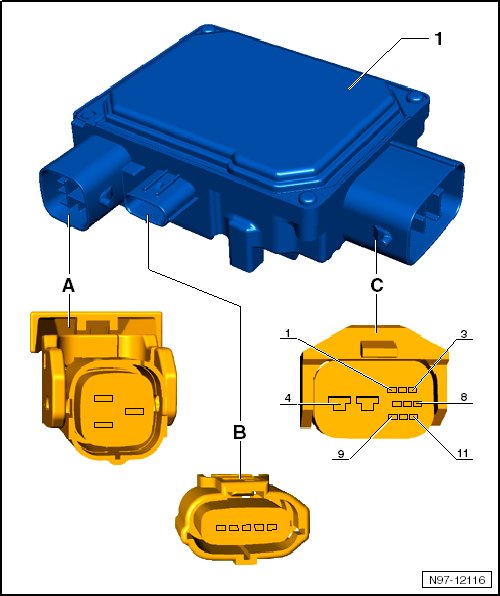

Pin Arrangements







1 - Auxiliary hydraulic pump control module -J922-

A - 3-pin connector -T3x-

B - 5-pin connector -T5x-

C - 11-pin connector -T11b-
