Control Modules In Interior







Control modules in interior

Auxiliary hydraulic pump control module -J922-

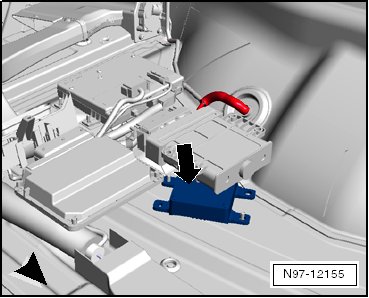

Component Location


Auxiliary hydraulic pump control module -J922- -arrow-

Note:
For models with hybrid drive, see control modules in engine compartment.

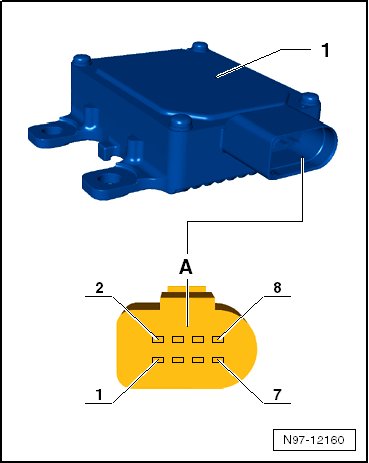

Pin Arrangements







1 - Auxiliary hydraulic pump control module -J922-
A - 8-pin connector -T8e-
