Center Console Switch Module

Center Console Switch Module

The center console switch module is located inside the center console, behind the shifter cover and includes, depending on the vehicle equipment level, the following:

• Start/Stop Mode Button (E693)

• ASR/ESP Button (E256)

• Dampening Adjustment Button (E387)

Removal

- Turn off the ignition and all electric consumers and remove the key.

- Remove selector lever trim.

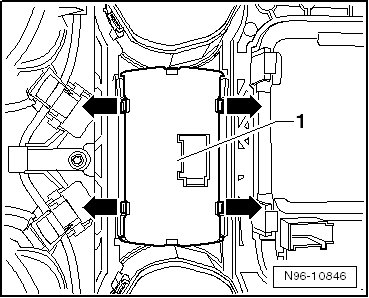

- Pull the 4 retainers in - direction of arrow - and remove the switch module- 1 - from the trim.






Installation

Install in reverse order of removal.
