Front Axle Camber, Adjusting
Front Axle Camber, Adjusting Special tools, testers and auxiliary items required •
Socket Wrench 21 mm (T10188)
•
Torque Wrench (V.A.G 1332)
Perform the Following Work:
-

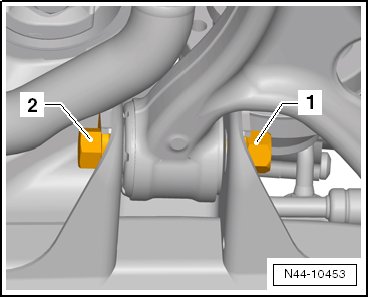

Loosen the nut -
1 - and adjust the camber by rotating the eccentric bolt -
1 -.
-

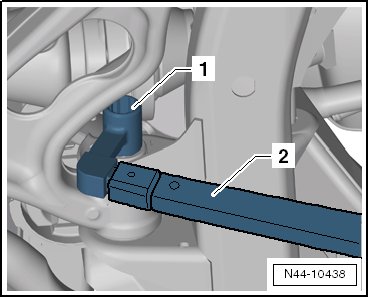

Tighten the camber adjustment bolt nut.
1. (T10188)
2. (V.A.G 1332)
Tightening Specifications
