Comfort System Central Control Module (J393) Bracket

Comfort System Central Control Module (J393) Bracket

Removal

- Turn off the ignition and all electric consumers and remove the key.

- Remove the comfort system central control module. Refer to => [ Comfort System Central Control Module (J393) ] Comfort System Central Control Module (J393).

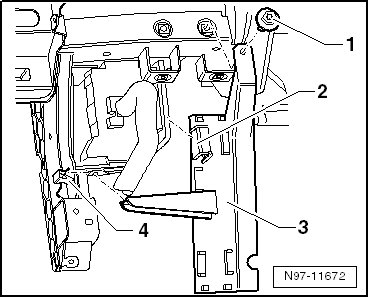

- Remove screw - 1 -.






- Loosen the comfort system central control module bracket - 3 - from the clamps - 4 - and pull it out of the guide- 2 -.

Installation

Install in reverse order of removal. Note the following:

- When installing the bracket - 3 -, make sure it is pushed with its guide - 2 - onto the bracket for the gateway control module and the bracket is secured with the clip.






- Tighten the screw - 1 - to 3.5 Nm.
