LR Door Control Module -J388-







Control modules in interior

Left rear door control module -J388-

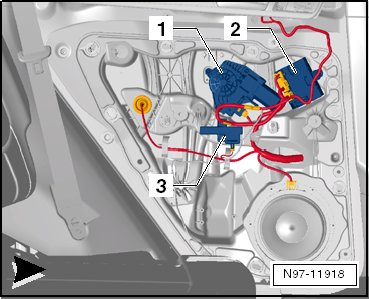

Component Location


1 - Left rear window regulator motor -V26-
2 - Left rear door control module -J388-
3 - Left rear access/start authorization antenna -R165-


Pin Arrangements







1 - Left rear door control module -J388-

A - 6-pin connector -T6g-

B - 20-pin connector -T20b-

C - 16-pin connector -T16e-

D - Not installed

Note:
• The illustration may deviate!
