Controls, Housing

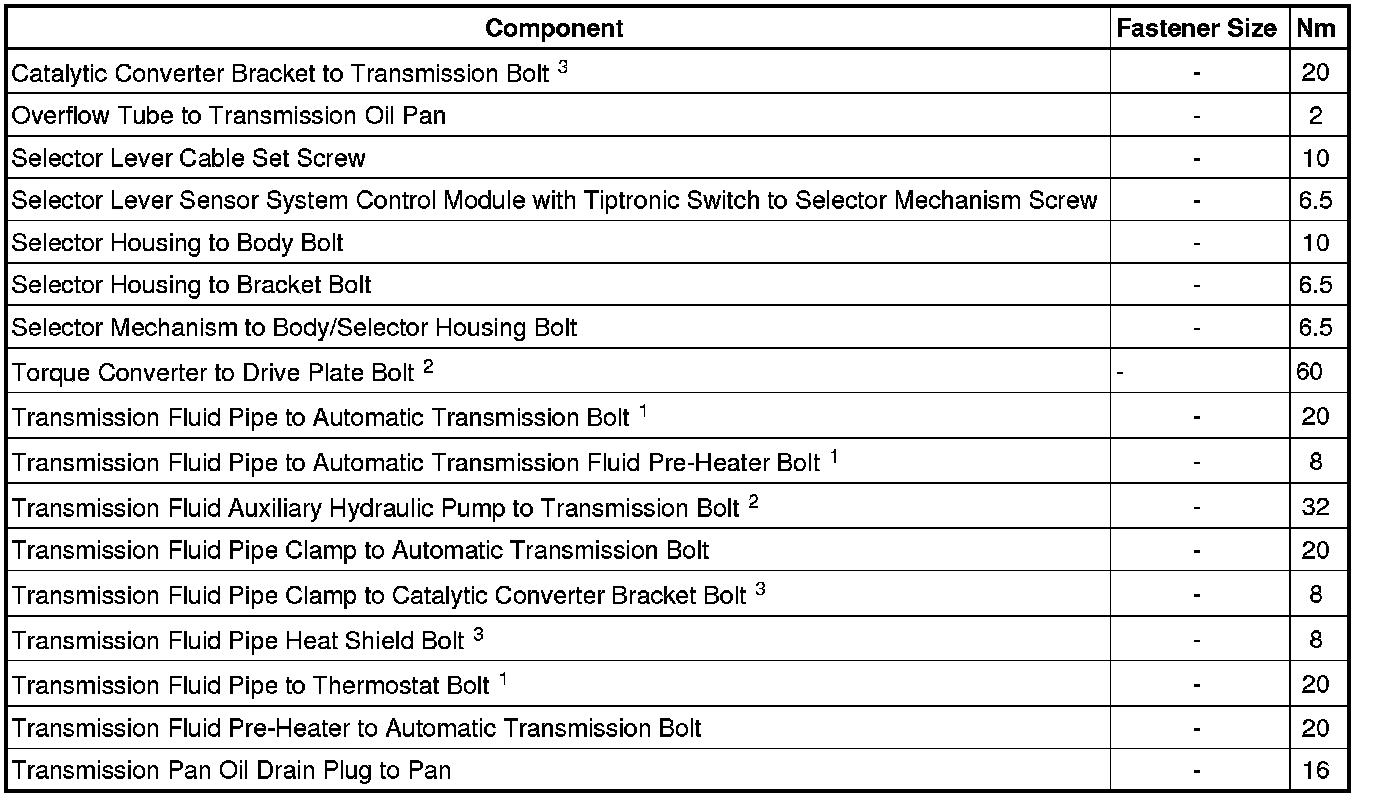

Fastener Tightening Specifications






• 1 Before tightening the bolt, push in the pipe by hand, until seated

• 2 3.0L hybrid engine only

• 3 3.6L engine only

3.0L Hybrid Engine

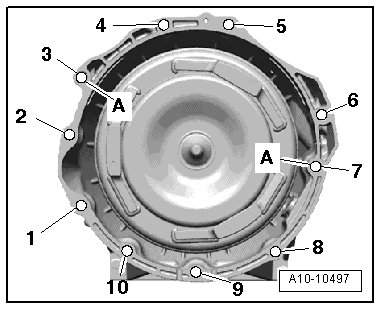

Transmission to Electro-Drive Drive Motor (V141) Bolt Tightening Sequence and Specification






- Using new bolts, tighten the transmission to electro-drive drive motor bolts in the sequence - 1 through 10 - shown to 30 Nm + 90° (1/4) additional turn.

3.0L TDI Engine

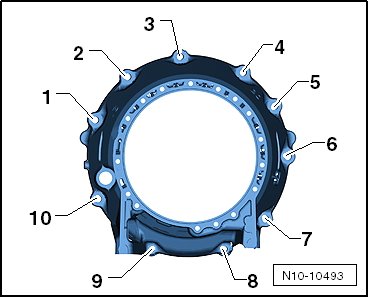

Transmission to Engine Bolt Tightening Sequence and Specification











3.6L Engine

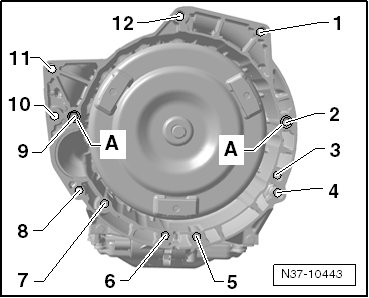

Transmission to Engine Bolt Tightening Sequence and Specification
