Steering Column Electronic Systems Control Module -J527-







Control modules in interior

Steering column electronics control module -J527-

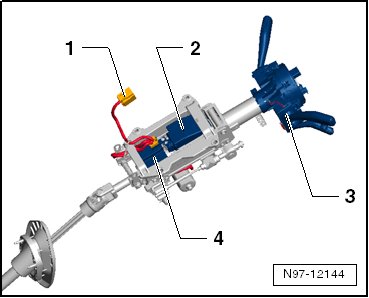

Component Location


1 - 6-pin connector -T6an-
2 - Electronic steering column lock control module -J764-
3 - Steering column electronics control module -J527-
4 - Power adjustable steering column control module -J866-

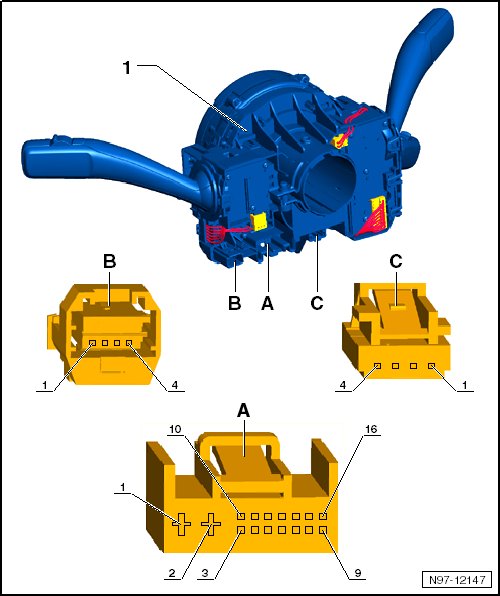

Pin Arrangements







1 - Steering column electronics control module -J527-

A - Black 16-pin connector -T16b-

B - 4-pin connector -T4b- , yellow

C - 4-pin connector -T4ci- , black
