Axle Differential Lock Control Module (J647)







Axle Differential Lock Control Module (J647)

Removing

- Turn off the ignition and all electric consumers.

- Remove the lock carrier cover.

- Remove the right D-pillar trim.

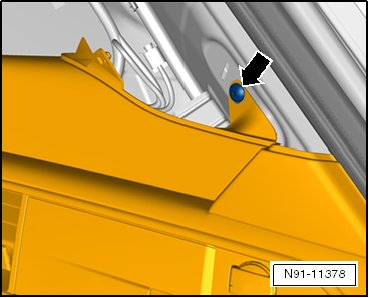

- Remove the clip- arrow -.

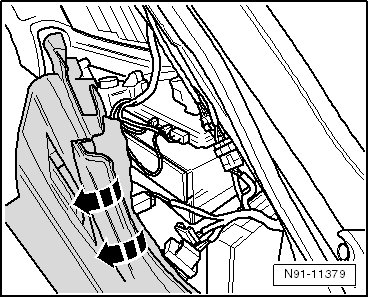

- Unclip the side trim panel on the side window and carefully push it slightly to the side in the - direction of the arrow -.






- If necessary, disconnect the connectors and unclip the interior lamp from the side trim panel.

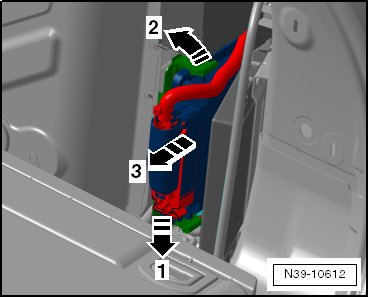

- Disconnect the connector - 1 - from the axle differential lock control module.






- Unclip and remove - 3 - the axle differential lock control module from the bracket - 2 -.

Installing

Installation is performed in the reverse order of removal:
