Engine Management Systems - Parts, Information

SECTION
2

GROUP
28

NO.
206

DATE
Oct. 1996

RE:
Fuel injection/ignition systems and control modules

200, 4 cyl. F engines

REFERENCE: TP 30869/1, SECTION 2 (20-22), ENGINE B230F; 240 1985-19..

Engine management systems and control modules for 200, 4cyl. F engines

The number of engine management systems and variants has increased over the years.

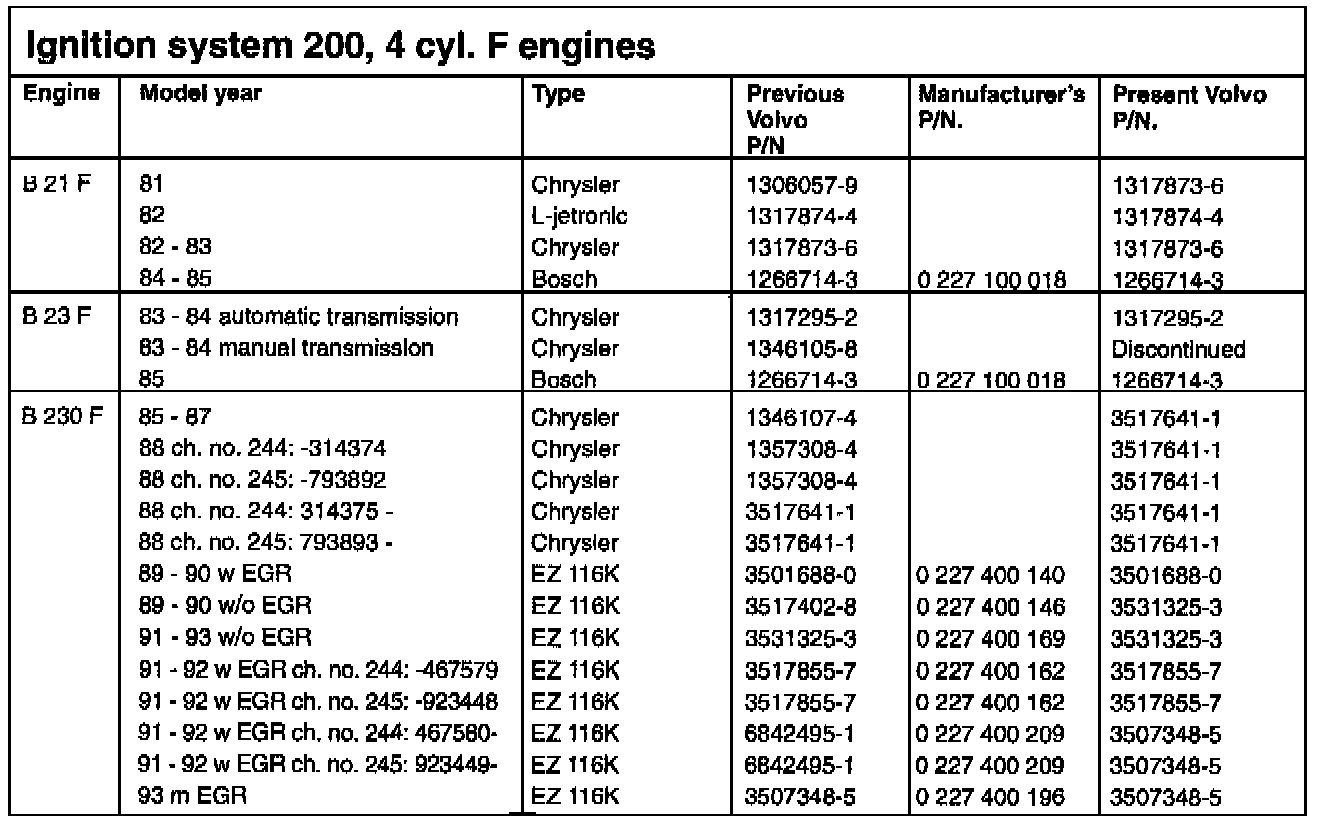

The tables contain the type of fuel injection system, ignition system and control module P/N for each engine type and model year.

The P/Ns apply to factory installed control modules. Replacement part numbers may vary depending on whether the control module is a replacement unit or not. If necessary compare with the cross-list.

Note that some systems are only available in certain markets and may not be available in your market.
