CI Injection System

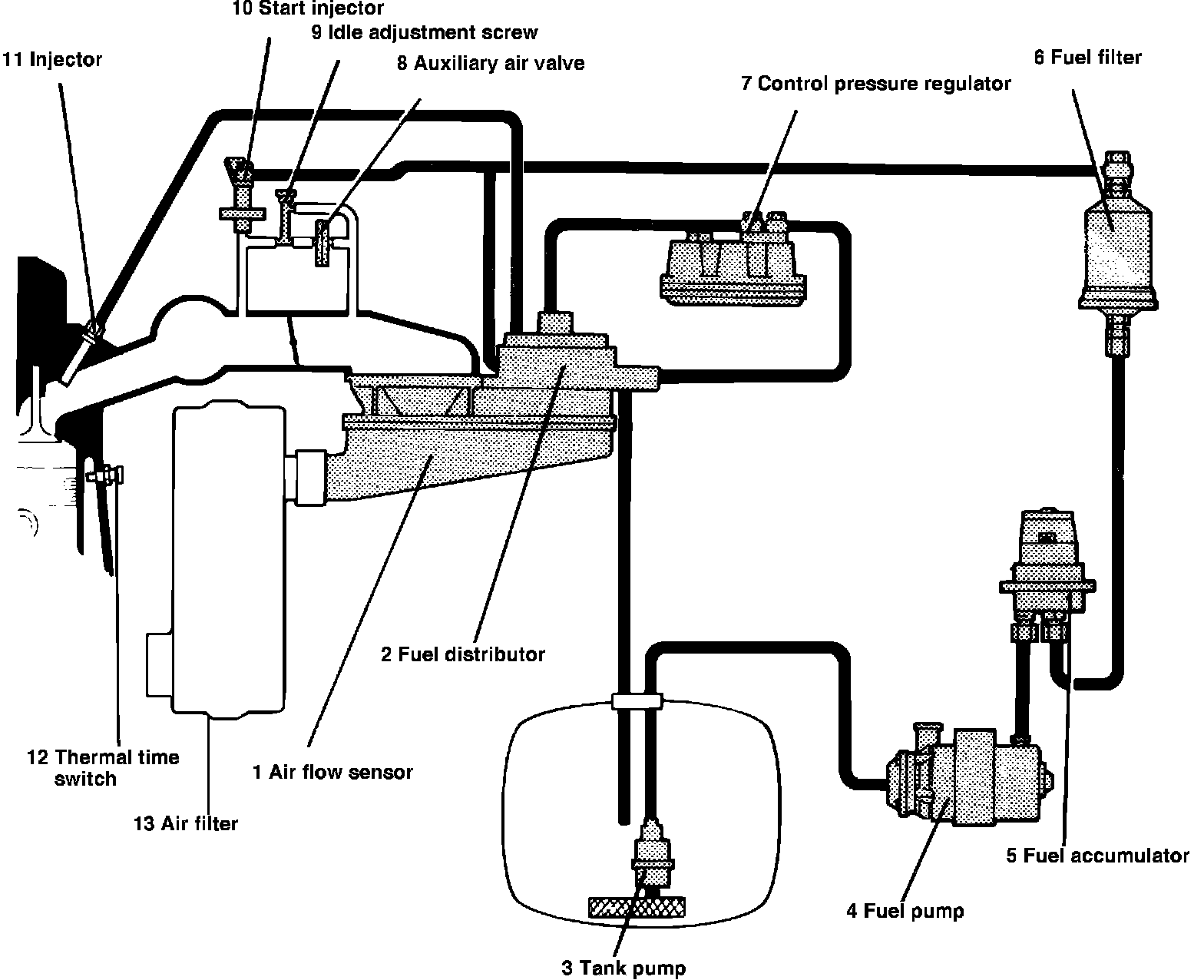

Fig. 1 Typical Continuous Injection (CI) System:
This system,
Fig. 1, continuously measures the air flow into the engine and uses this information to control the amount of fuel supplied to the engine. Incoming air and fuel flow are regulated by the air flow control unit which consists of the air flow sensor and the
fuel distributor.
