CI Fuel Injection System

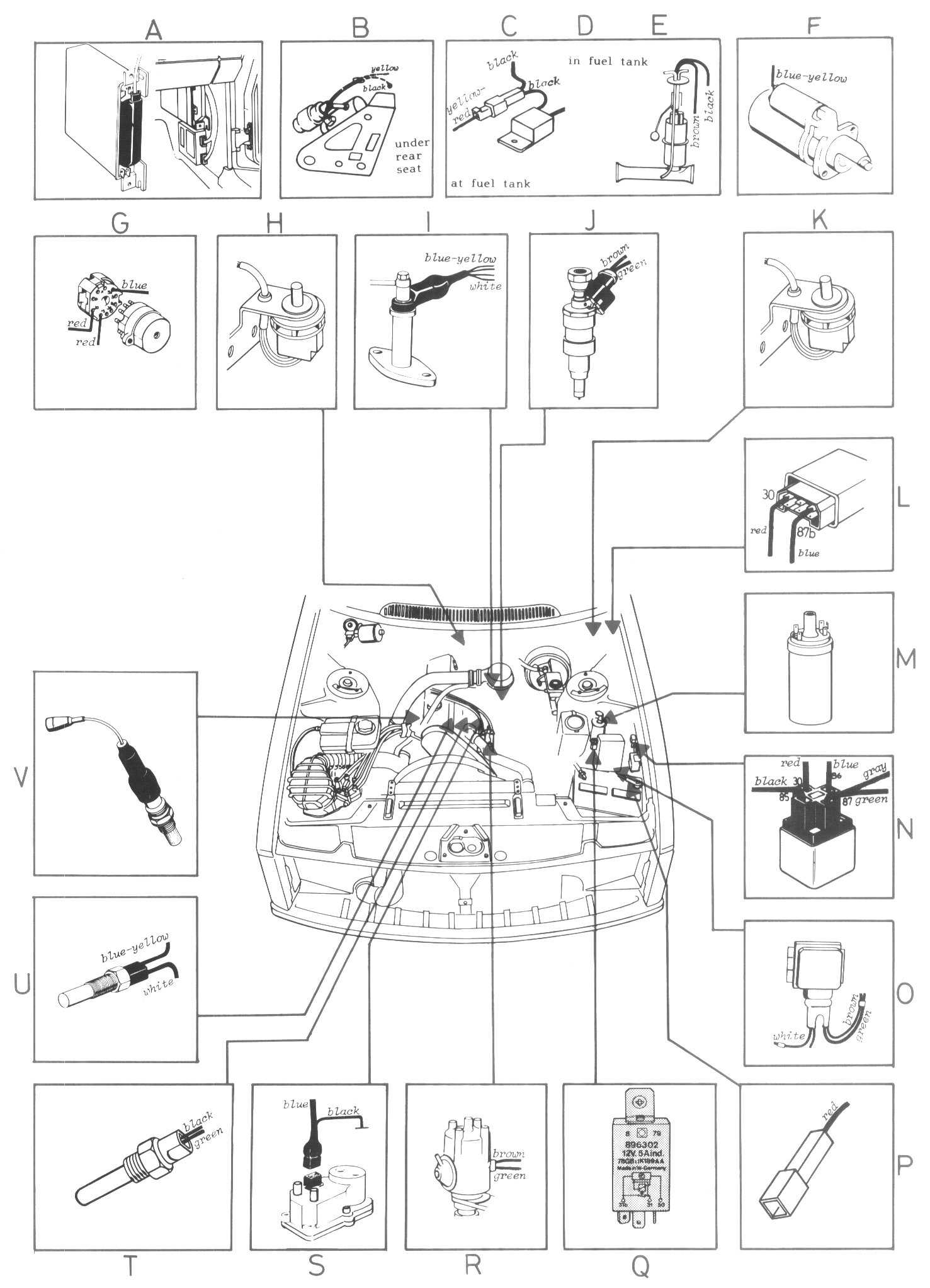

Locations/Connector Views:

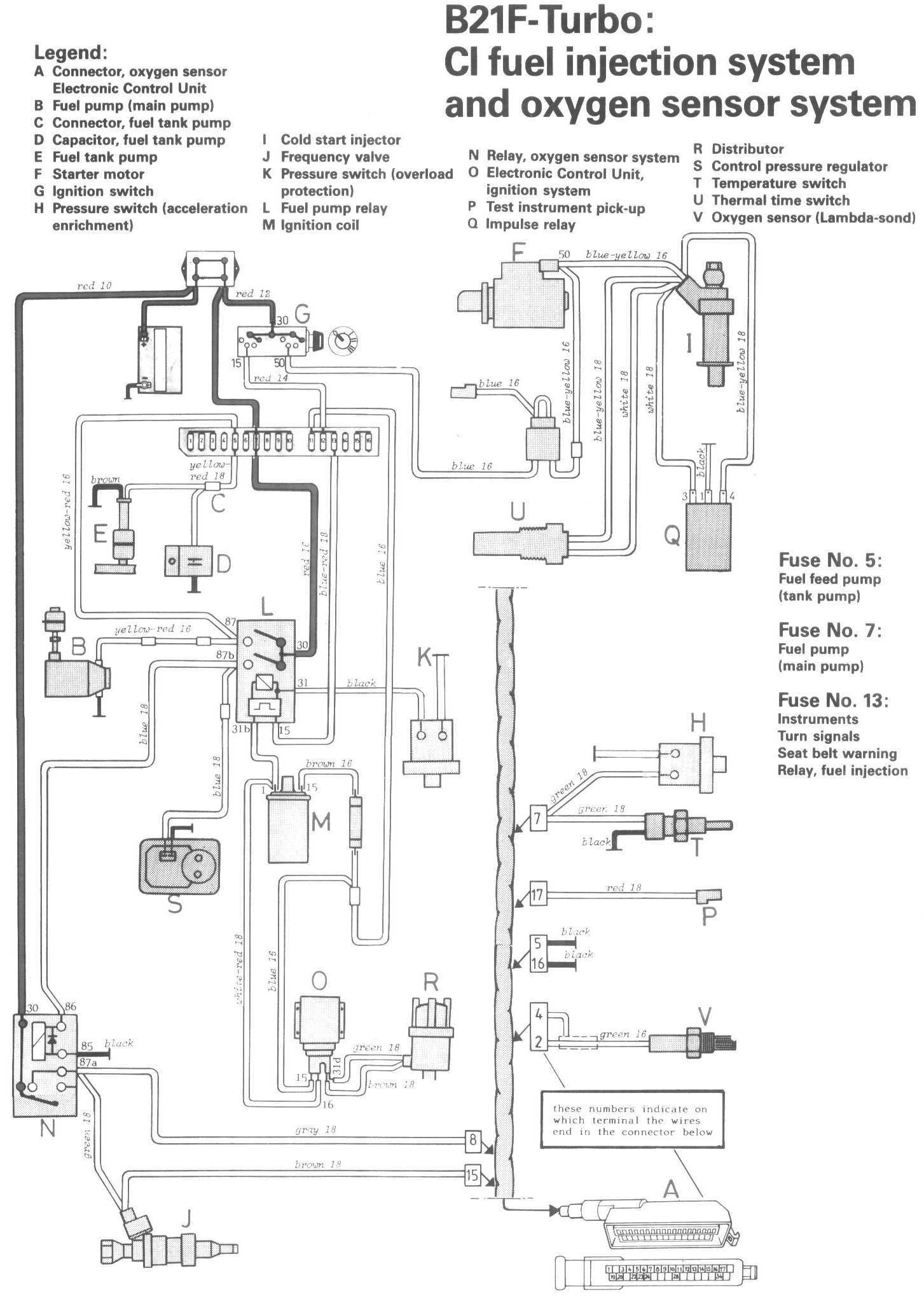

Diagrams:

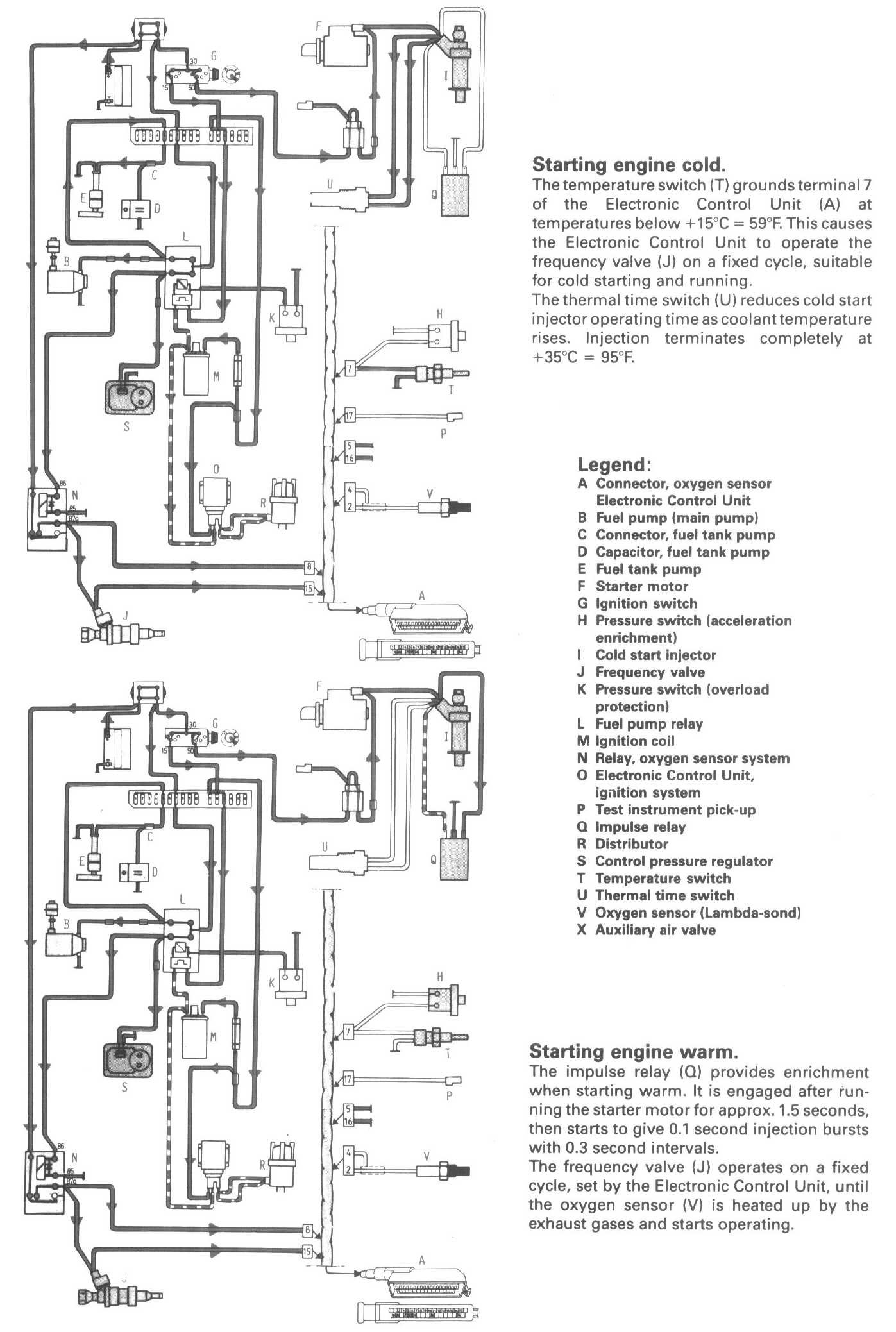

Conditions 1:

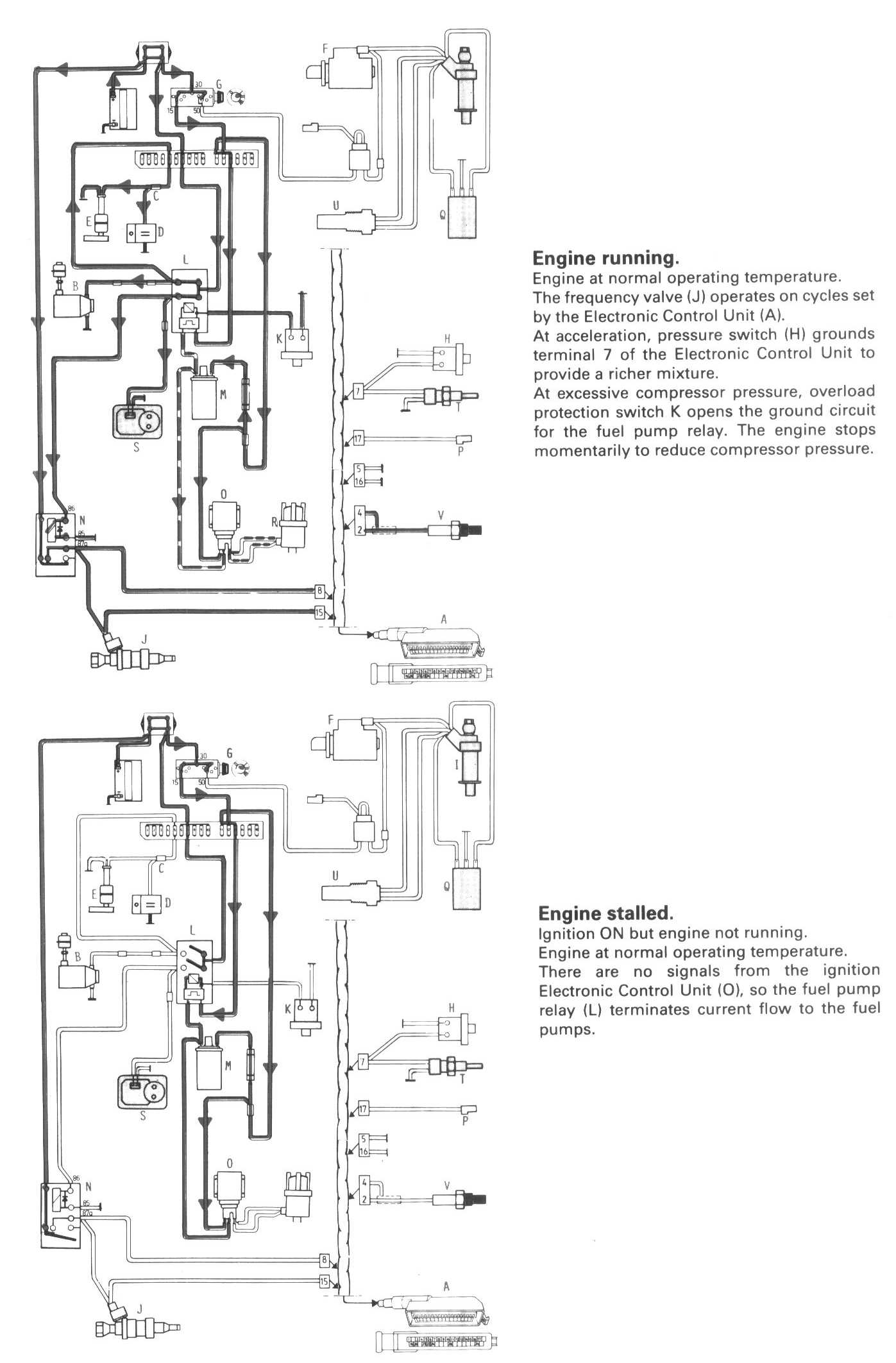

Conditions 2:

Legend:
A Connector, oxygen sensor Electronic Control Unit
B Fuel pump (main pump)
C Connector, fuel tank pump
D Capacitor. fuel tank pump
E Fuel tank pump
F Starter motor
G Ignition switch
H Pressure switch (acceleration enrichment)
I Cold start injector
J Frequency valve
K Pressure switch (overload protection)
L Fuel pump relay
M Ignition coil
N Relay oxygen sensor system
O Electronic Control Unit, ignition system
P Test instrument pick-up
Q Impulse relay
R Distributor
S Control pressure regulator
T Temperature switch
U Thermal time switch
V Oxygen sensor (Lambda-sond)
