CI Fuel Injection System

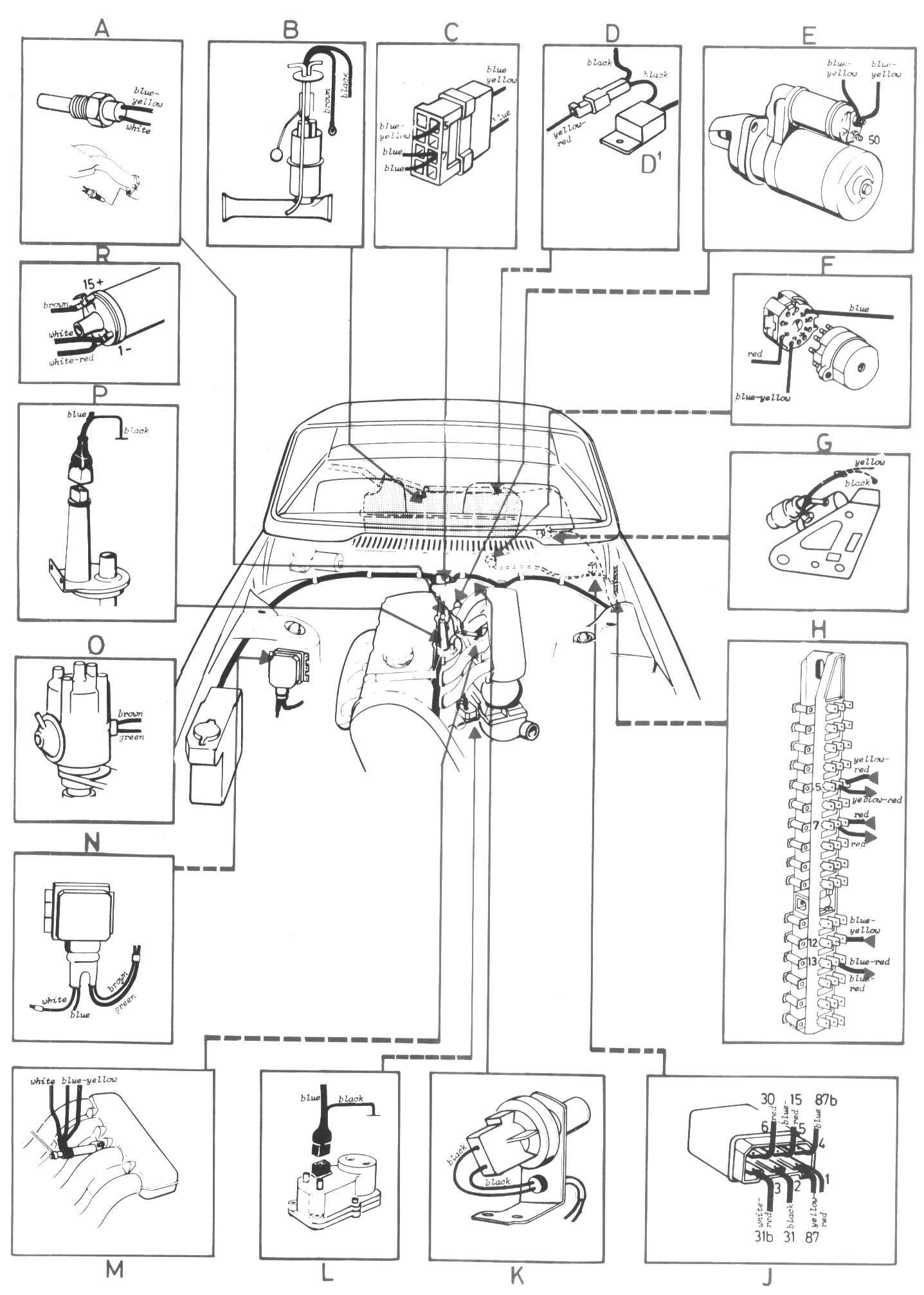

Locations/Connector Views:

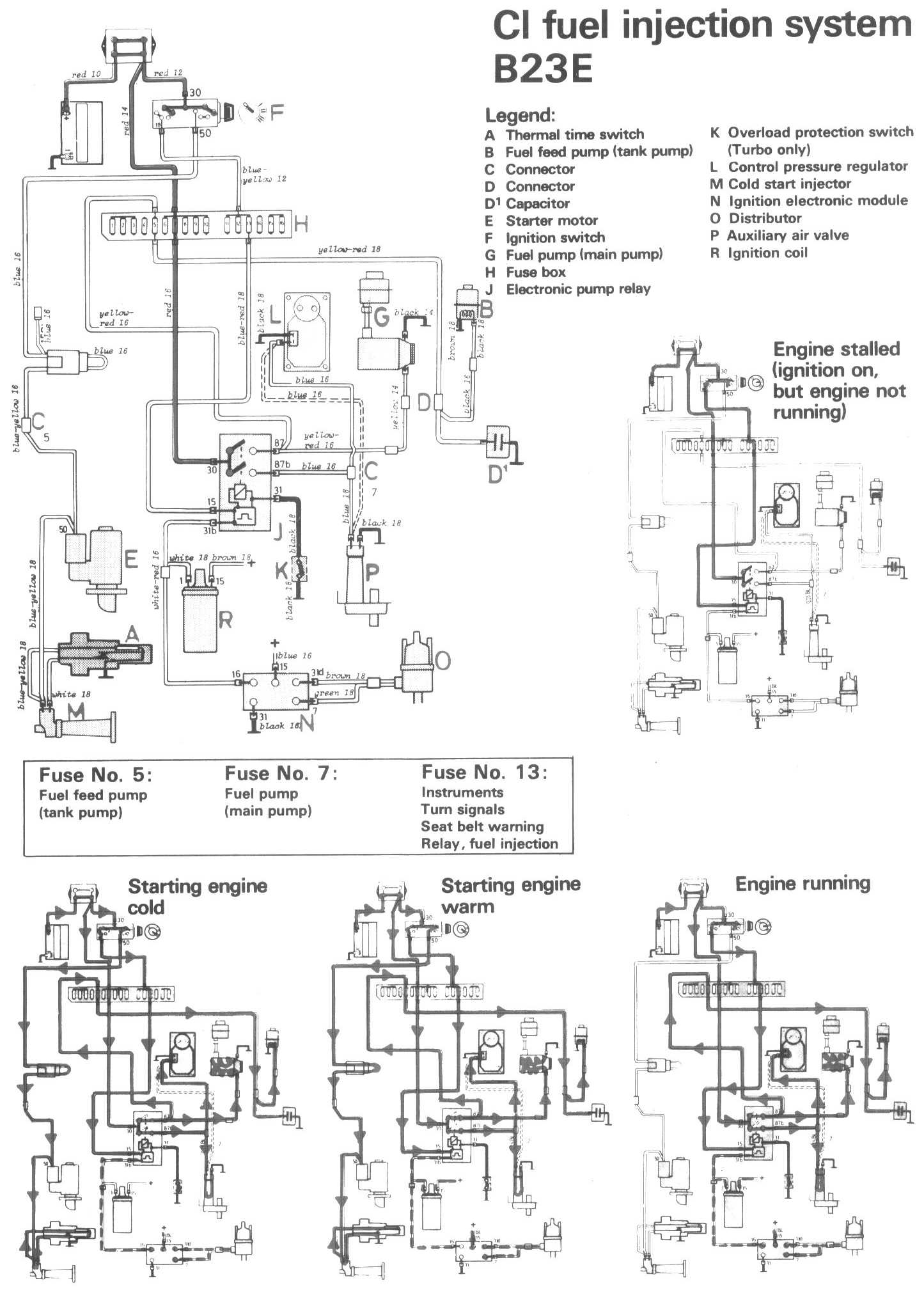

Diagrams:
Legend: A Thermal time switch
B Fuel feed pump (tank pump)
C Connector
D Connector
D1 Capacitor
E Starter motor
F Ignition switch
G Fuel pump (main pump)
H Fuse box
J Electronic pump relay
K Overload protection switch (Turbo only)
L Control pressure regulator
M Cold start injector
N Ignition electronic module
O Distributor
P Auxiliary air valve
R Ignition coil
