Breakerless Electronic Ignition System (B28F)

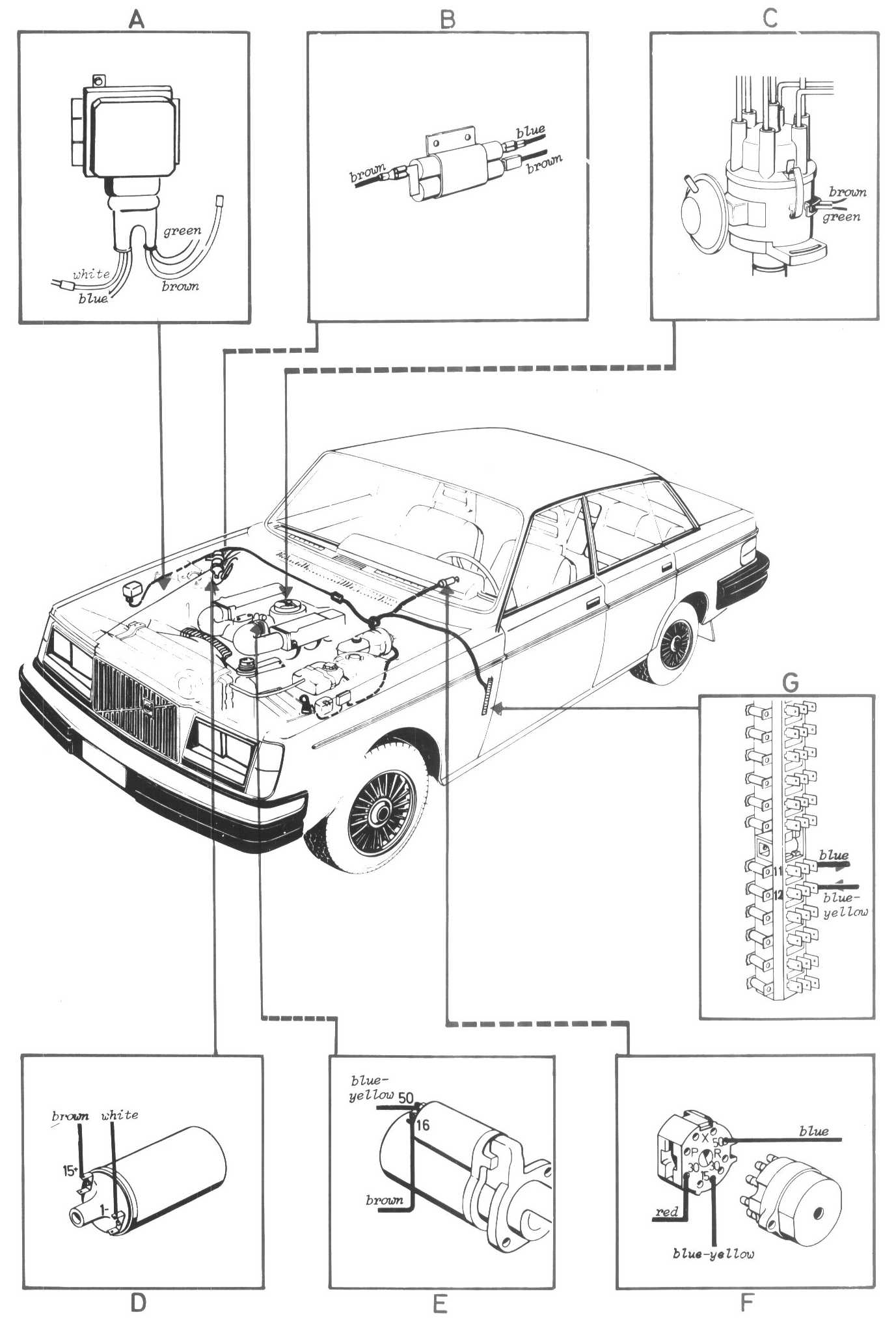

Locations/Connector Views:

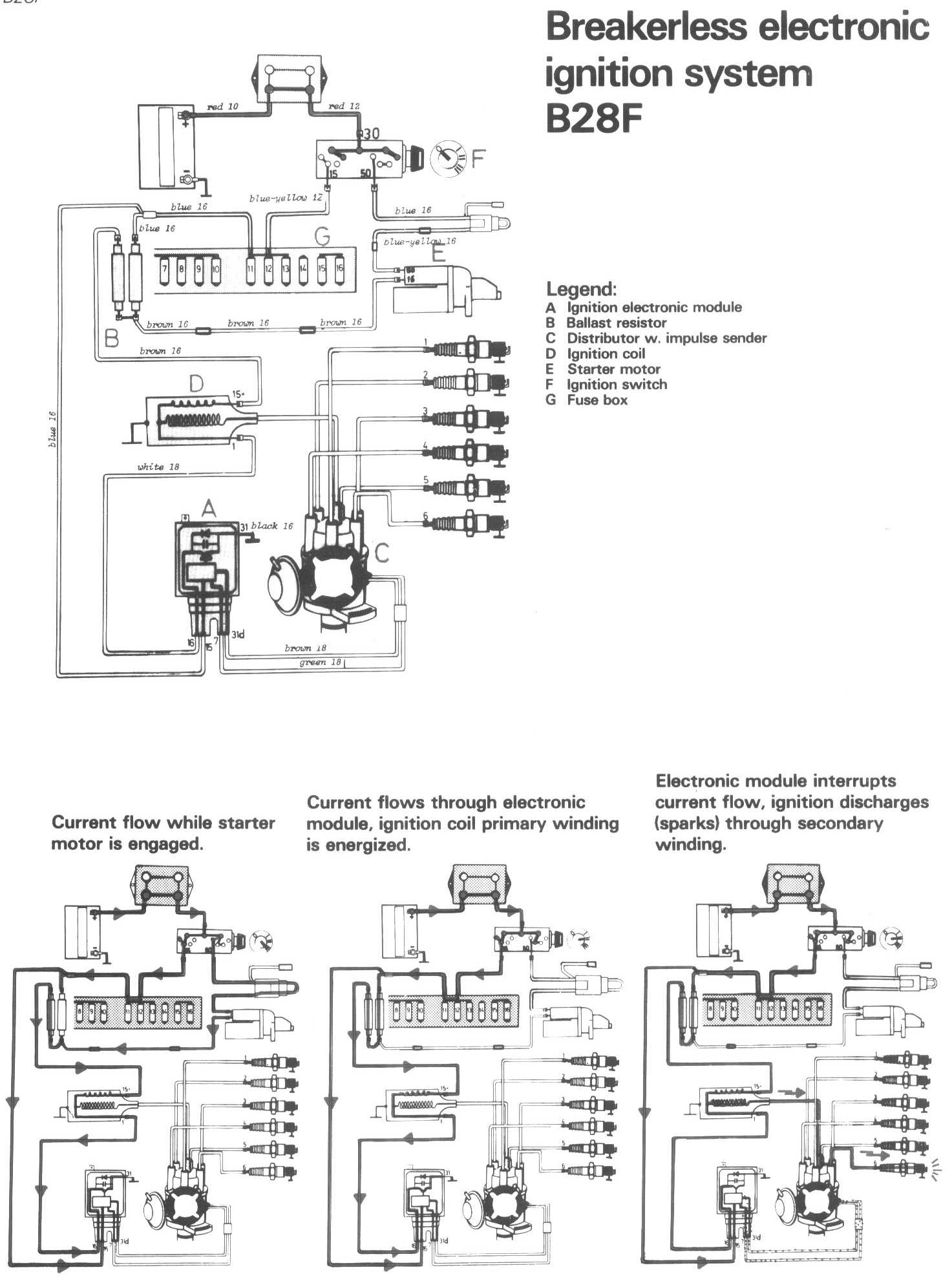

Diagrams:




Legend:
A Ignition electronic module
B Ballast resistor
C Distributor with impulse sender
D Ignition coil
E Starter motor
F Ignition switch
G Fuse box
