Installation
1.

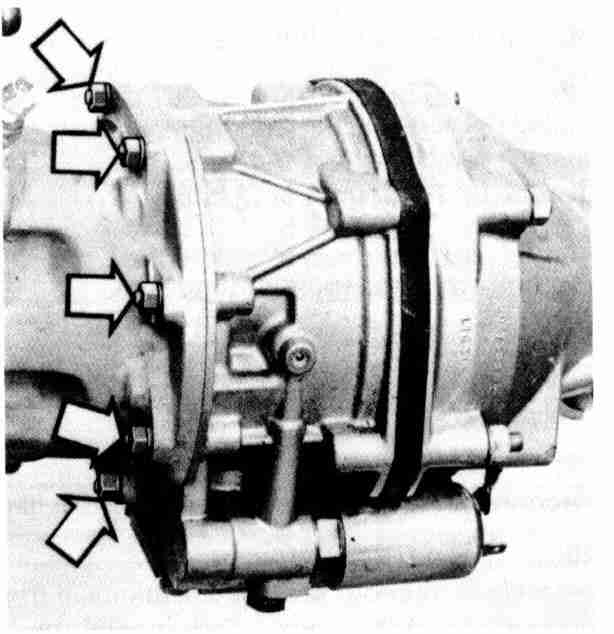

Position the overdrive on the transmission output shaft. Install the nuts. Torque to
7-11 Nm (5-8 ft lb).
2.

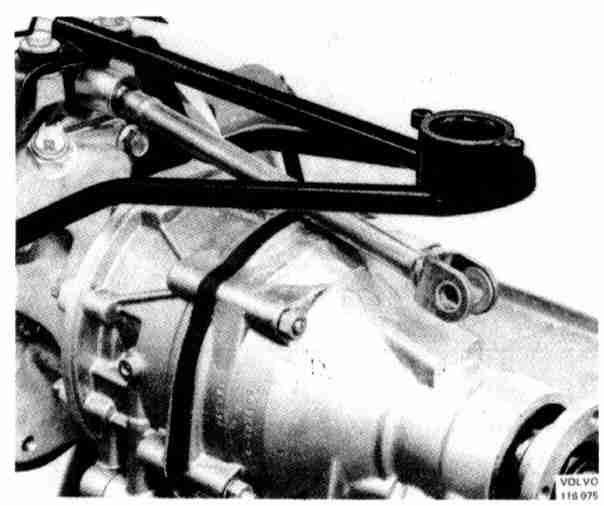

Raise the transmission and install the cross member.
3.
Reconnect the wires at the solenoid.
4.
Reconnect the drive shaft.
5.
Fill with oil to plug hole level. M46:
Automatic Transmission Fluid Type F or G.
6.
Recheck oil level after driving approx.
15 km (10 miles).
