Charging System: Locations

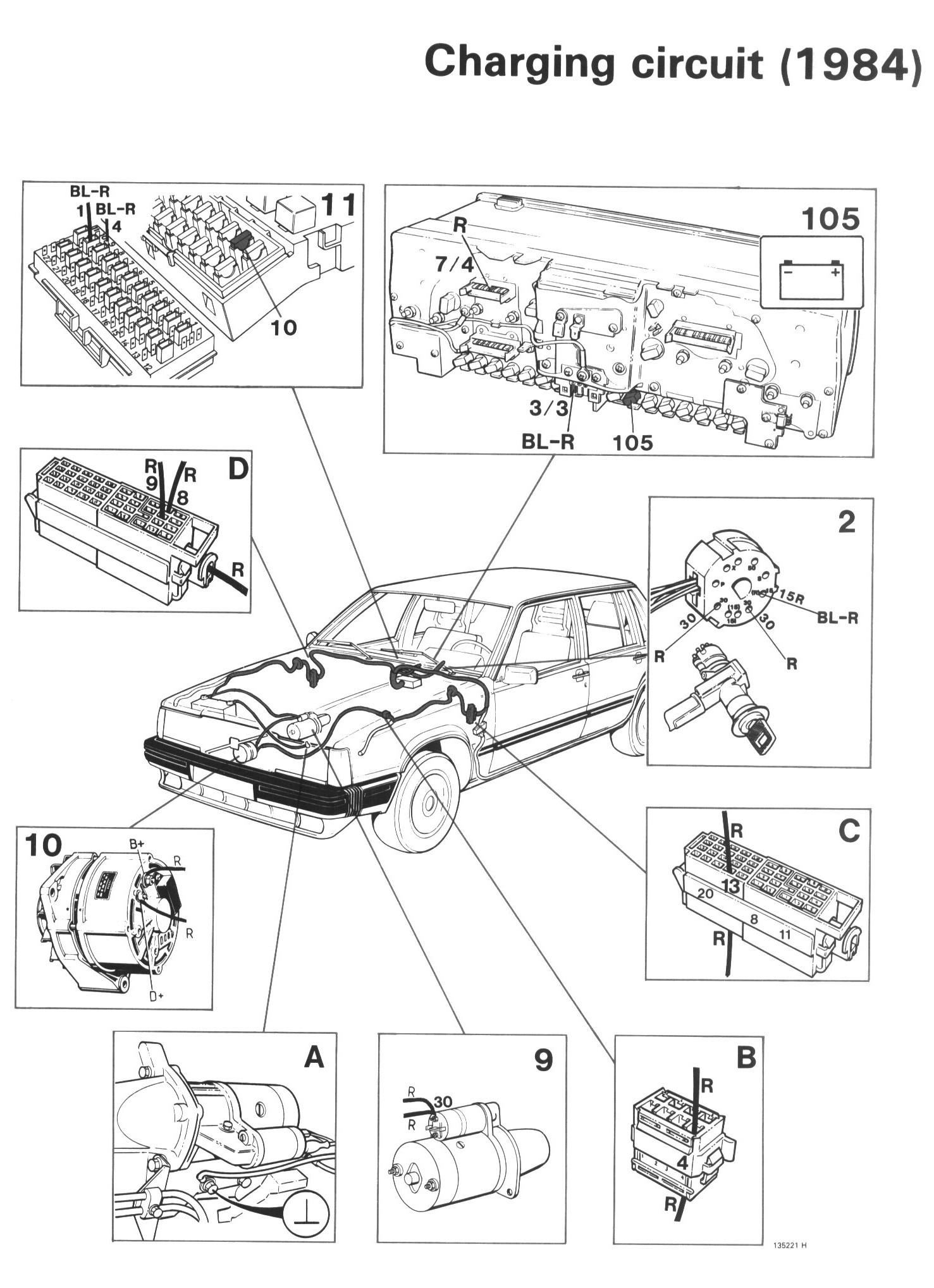

Component / Connector Views:

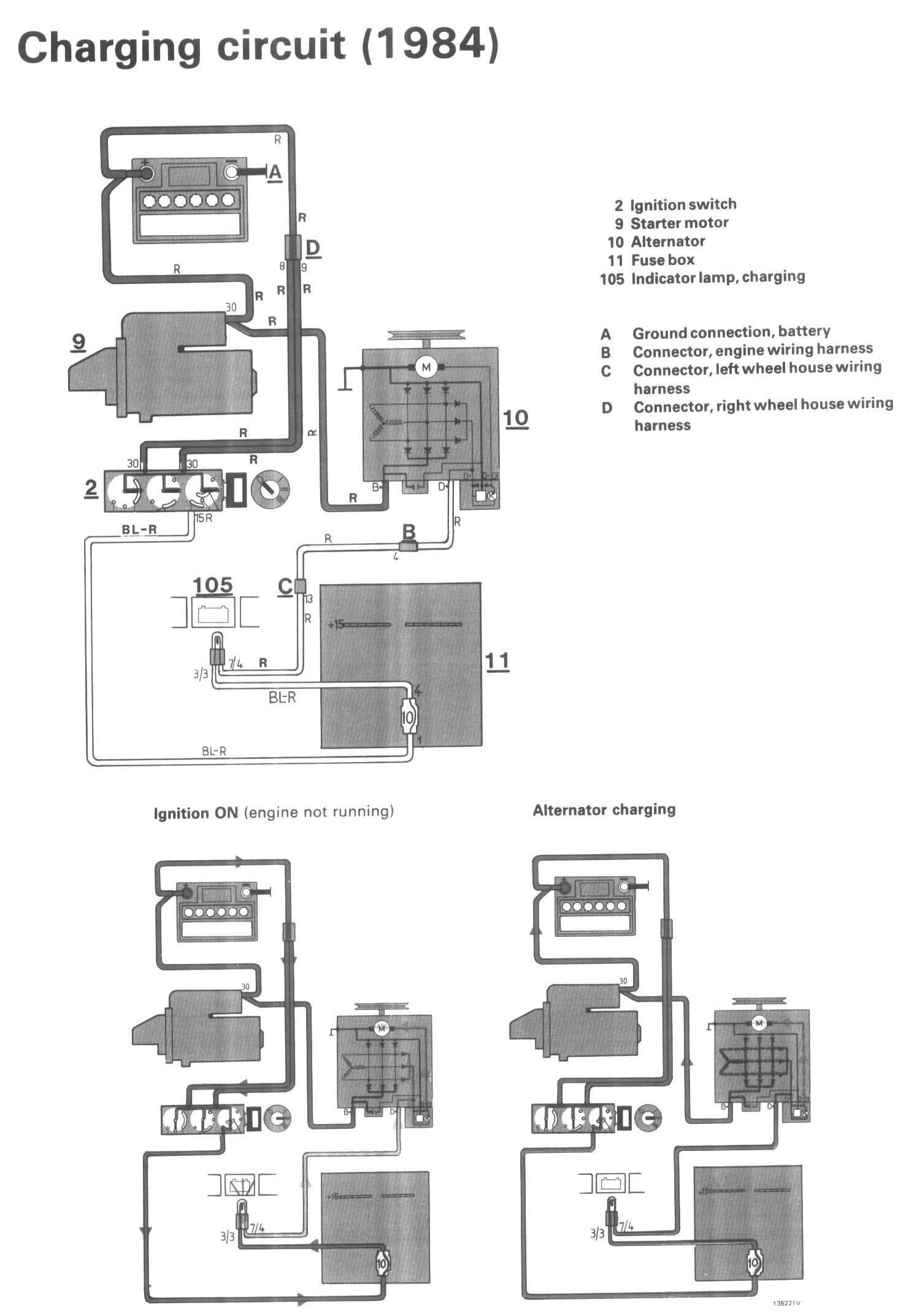

Wiring Diagrams:




LEGEND
2 Ignition switch
9 Starter motor
10 Alternator
11 Fusebox
105 Indicator lamp, charging
A Ground connection, battery
B Connector, engine wiring harness
C Connector, left wheel house wiring harness
D Connector, right wheel house wiring harness
