Cruise Control: Locations

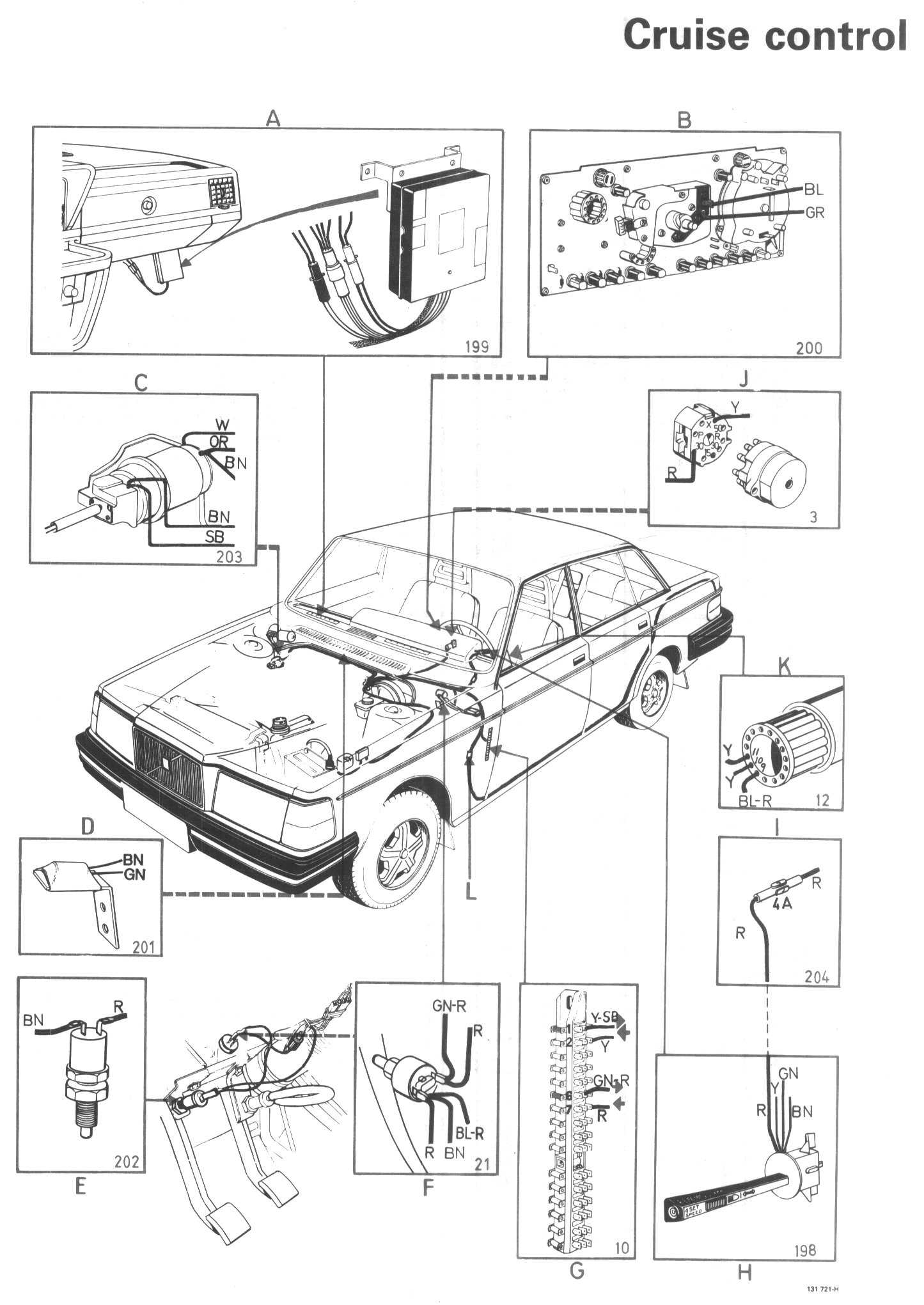

Locations/Connector Veiws:

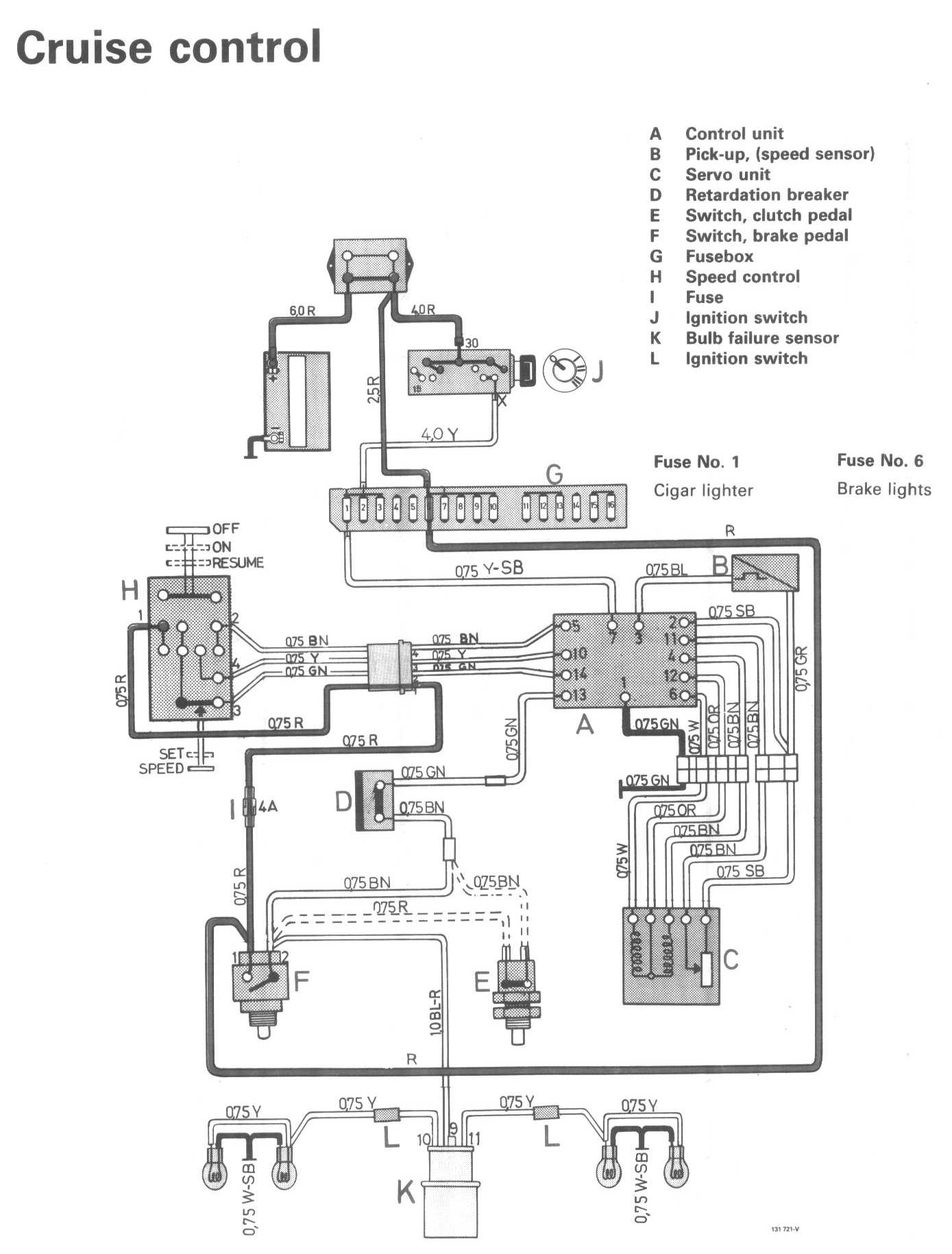

Wiring Diagrams:

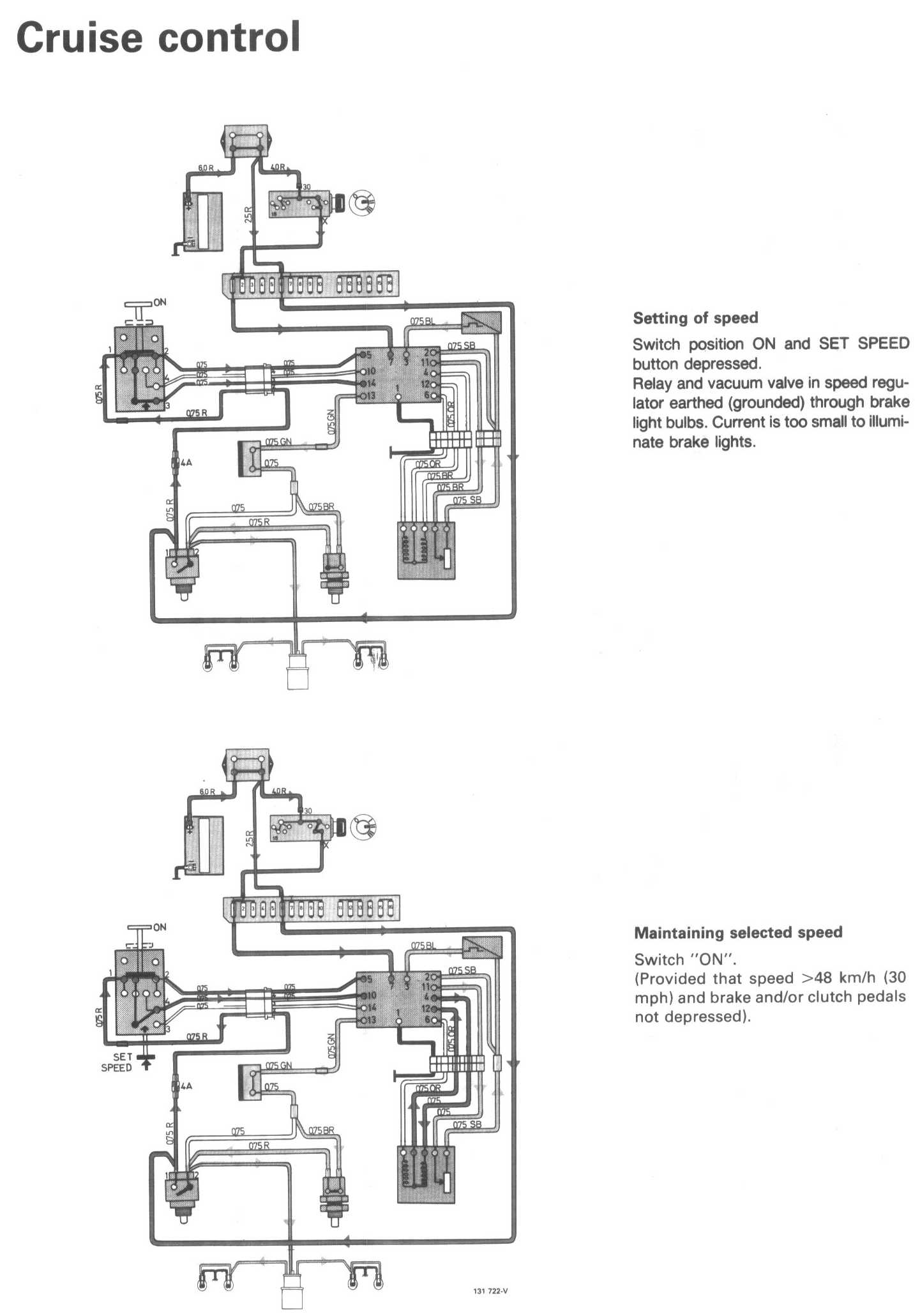

Setting / Maintaining Of Speed:

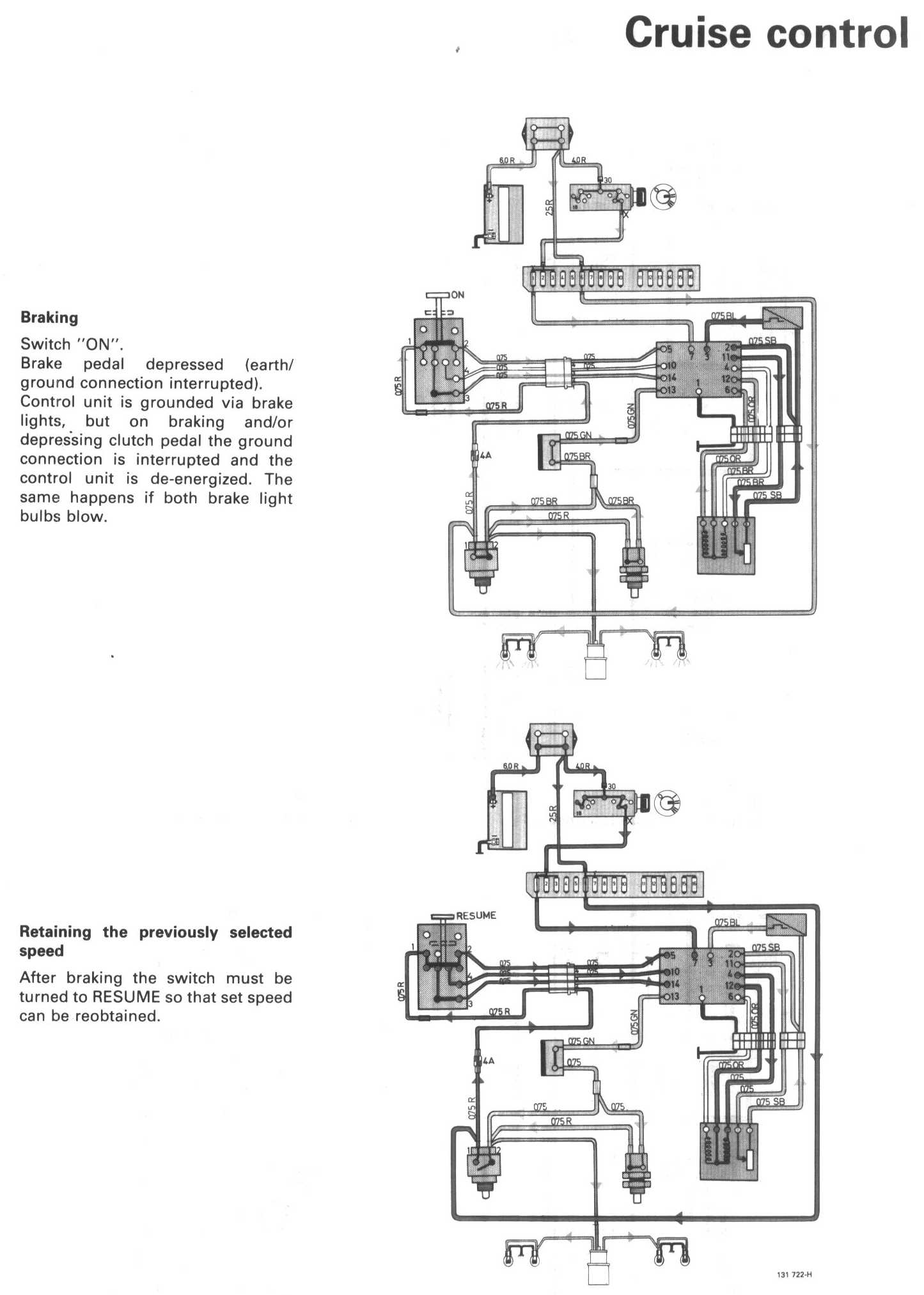

Braking / Retaining Selected Speed:

LEGEND
A Control unit
B Pick-up, (speed sensor)
C Servo unit
D Retardation breaker
E Switch, clutch pedal
F Switch, brake pedal
G Fusebox
H Speed control
I Fuse
J Ignition switch
K Bulb failure sensor
I Ignition switch
