Fuel Injection System

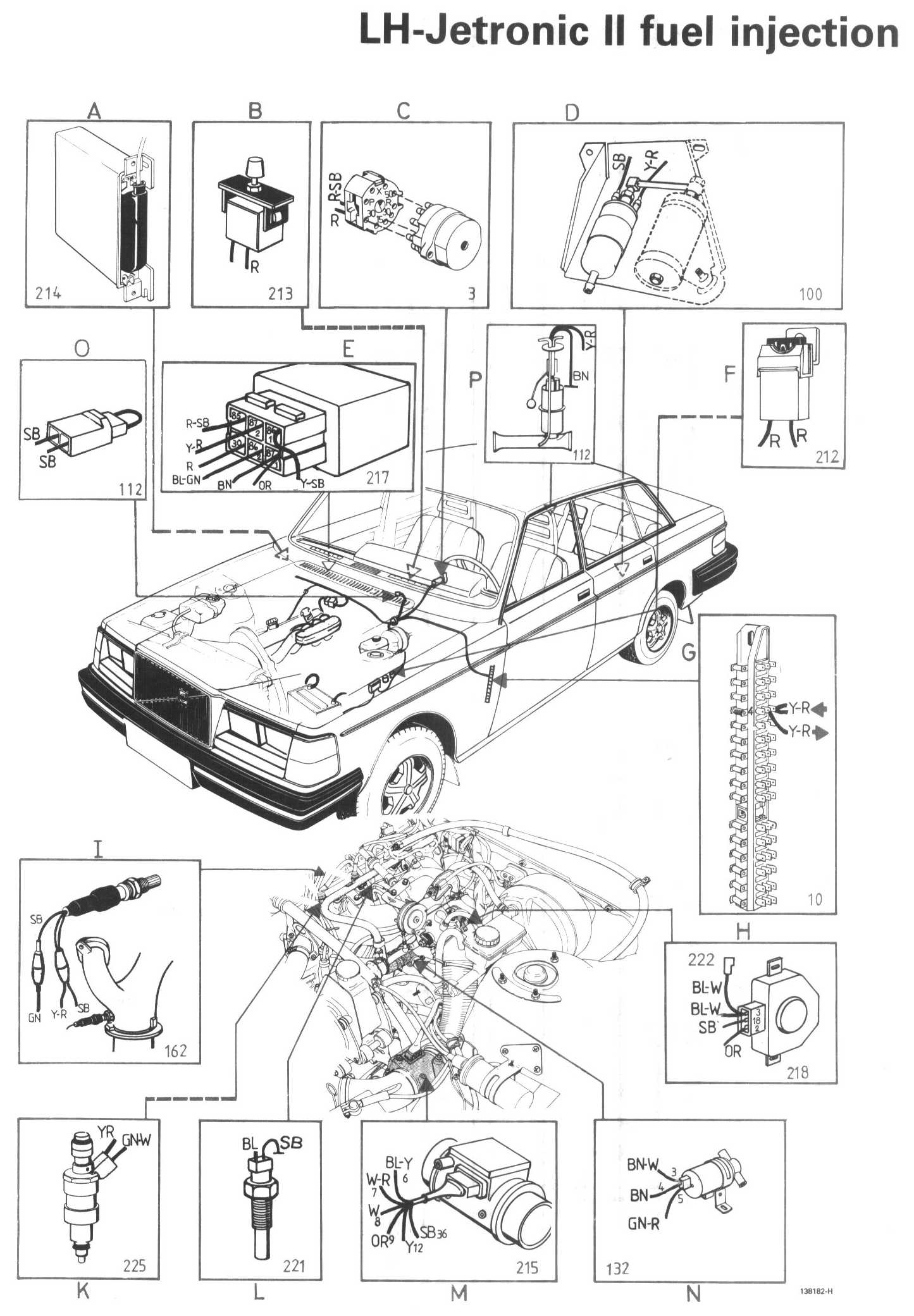

Component Locations:

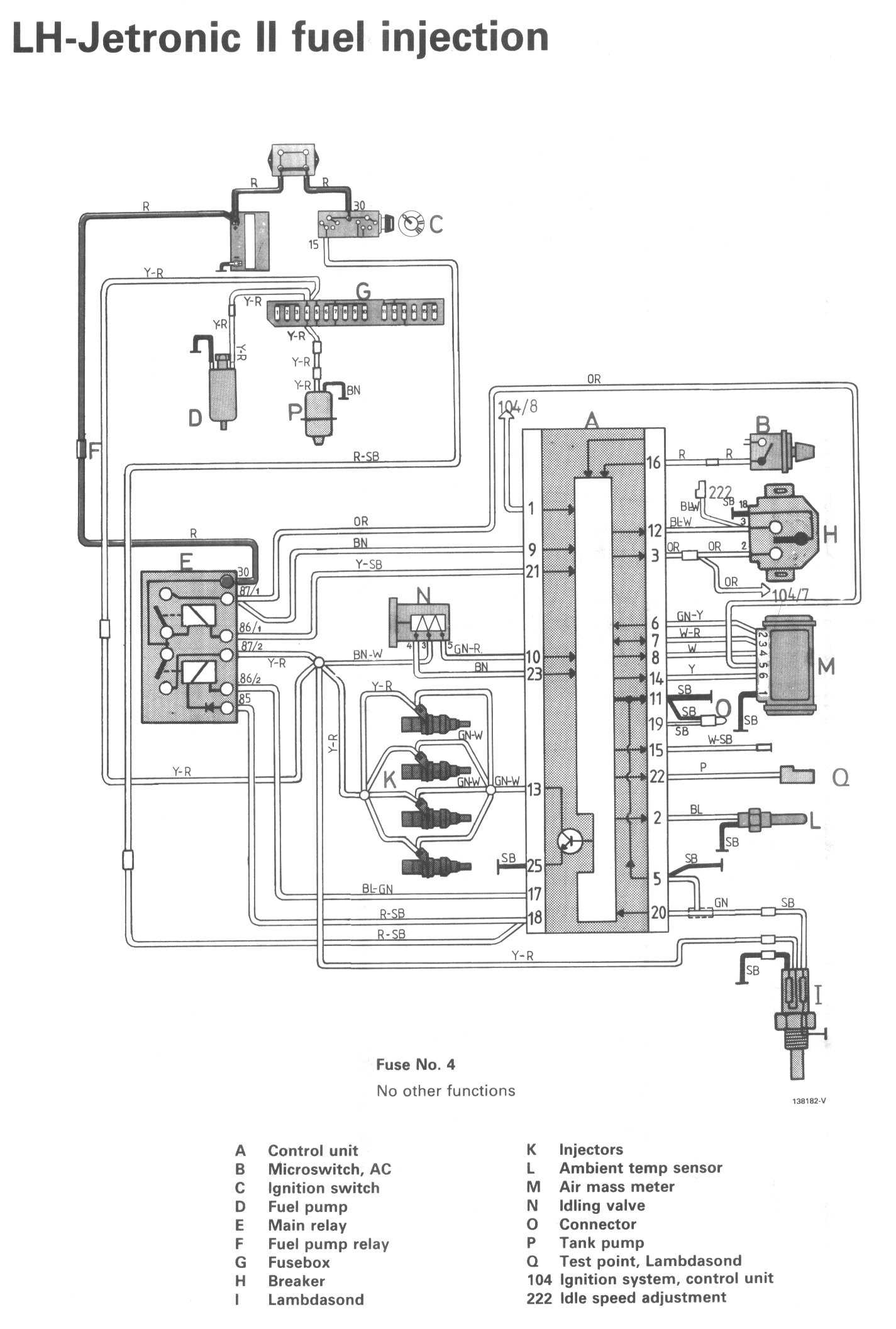

Wiring Diagram:

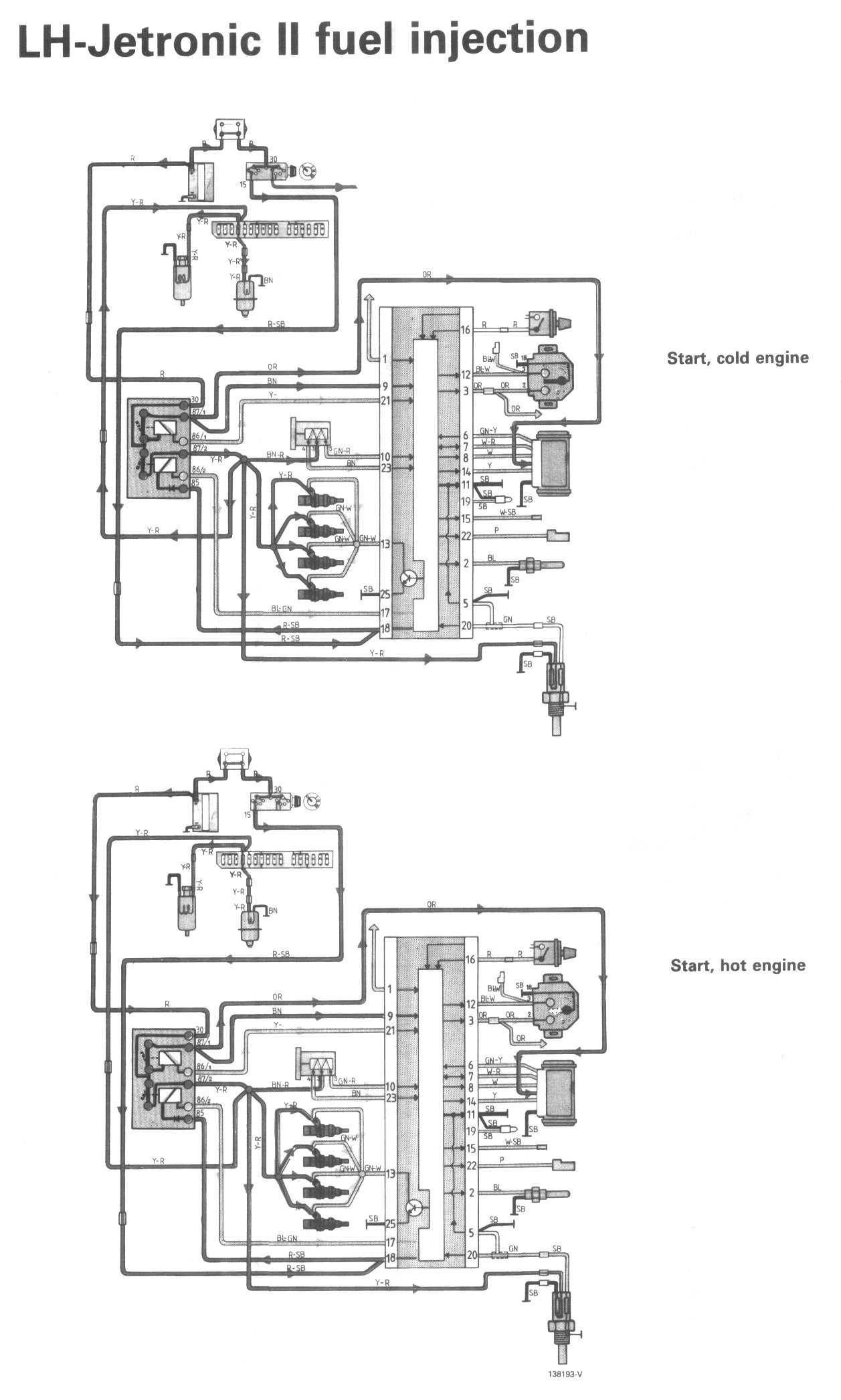

Start (Engine Cold/Hot):

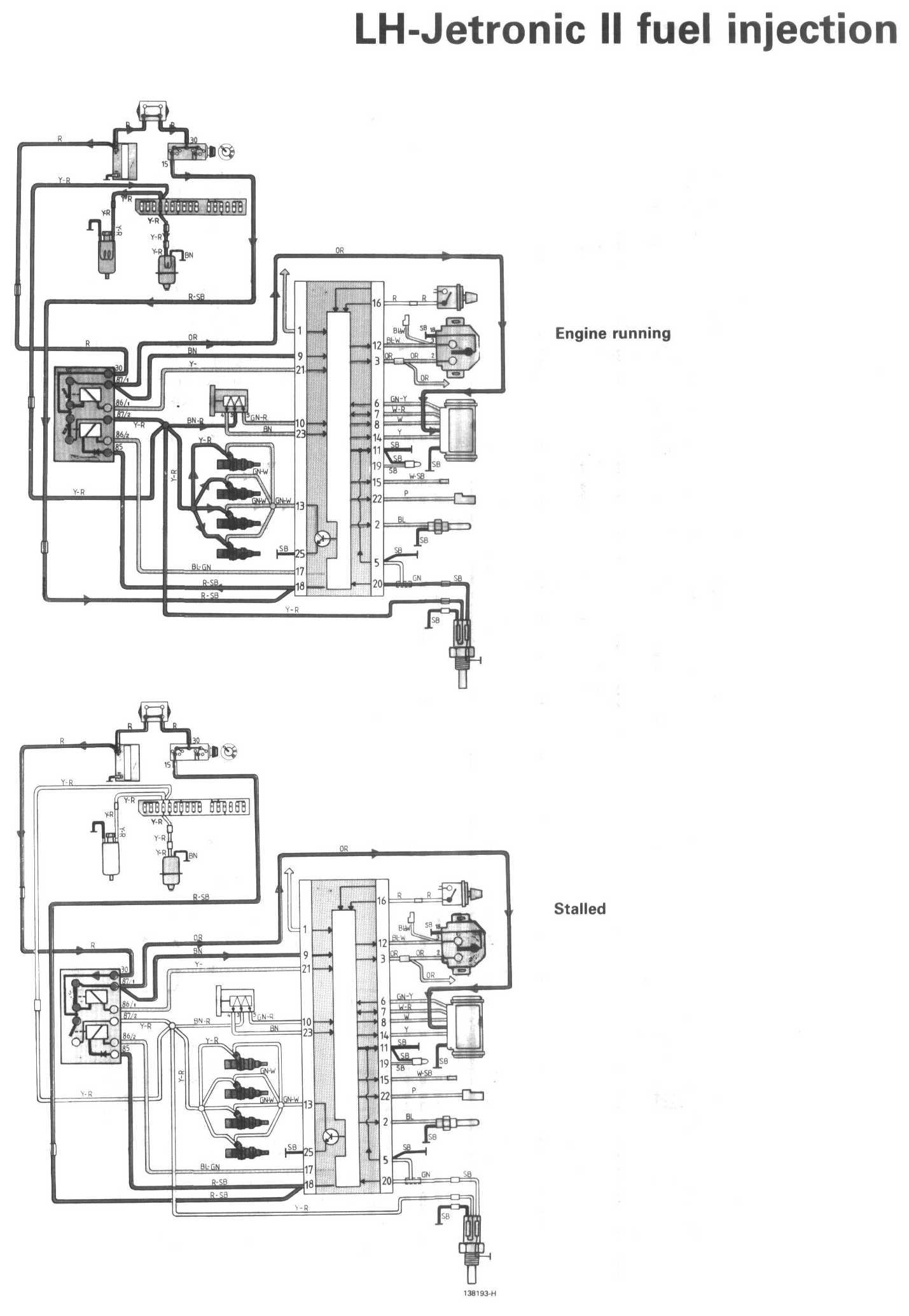

Engine Running/Stalled:




LEGEND
A Control unit
B Microswitch, AC
C Ignition switch
D Fuel pump
E Main relay
F Fuel pump relay
G Fusebox
H Breaker
I Lambdasond
K Injectors
I Ambient temperature sensor
M Air mass meter
N Idling valve
O Connector
P Tank pump
Q Test point, Lambdasond
104 Ignition system. control unit
222 Idle speed adjustment
