Idle Speed

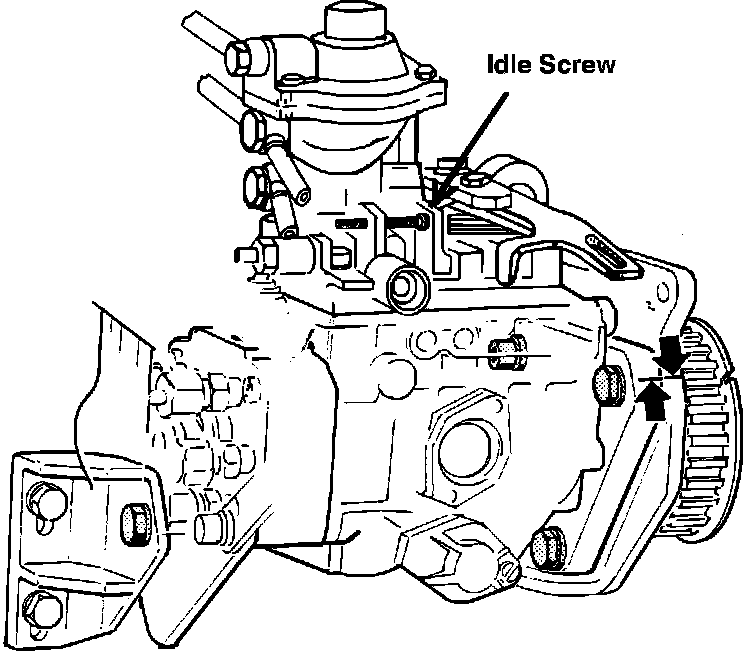

Fig. 404 IDLE SPEED SCREW:
1.
Connect a photoelectric RPM-meter (or use VOLVO MONOTESTER and adapter #9950)
2.
Warm up engine and idle additional five minutes after thermostat has opened
3.
Turn off air conditioner
4.
Adjust
idle speed with idle screw
Fig. 404. to 830 ± 50 RPM
5.
Seal idle screw and lock nut with paint after adjustment
