Temperature Controlled Ignition Advance (B28F)

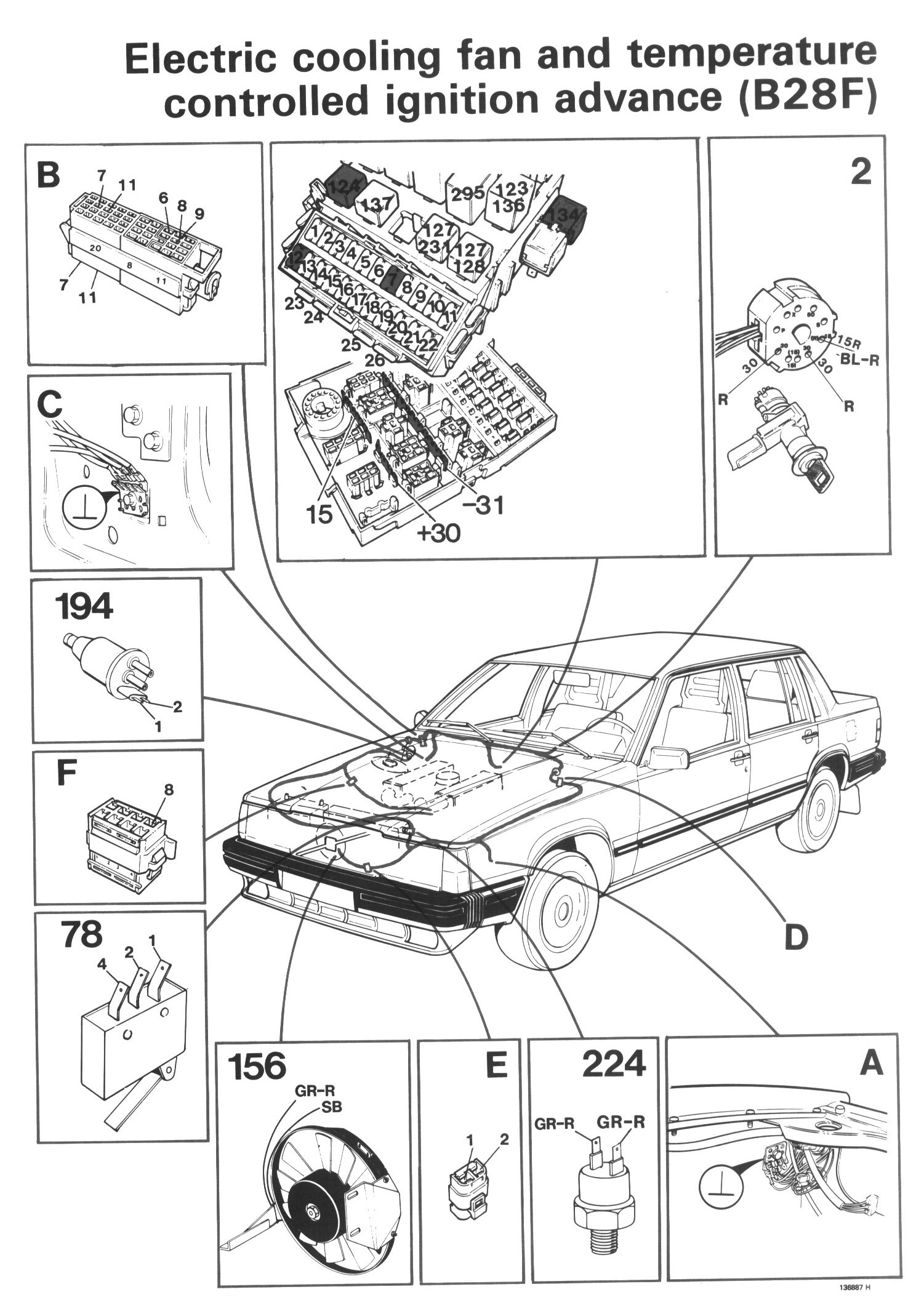

Component / Connector Views:

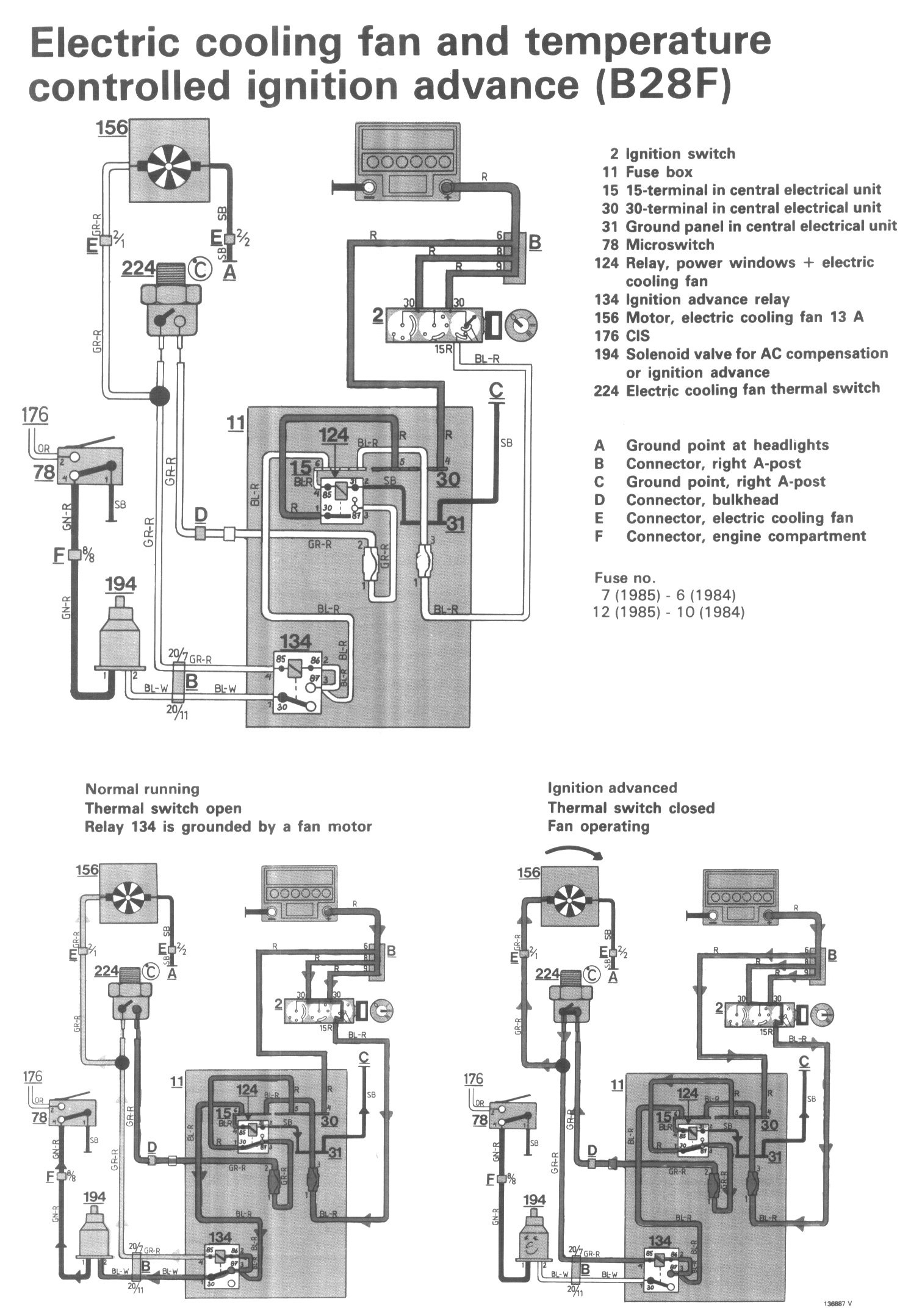

Wiring Diagrams:

LEGEND
2 Ignition switch
11 Fuse box
15 15-terminal in central electrical unit
30 30-terminal in central electrical unit
31 Ground panel in central electrical unit
78 Microswitch
124 Relay, power windows + electric cooling fan
134 Ignition advance relay
156 Motor, electric cooling fan 13 A
176 CIS
194 Solenoid valve for AC compensation or ignition advance
224 Electric cooling fan thermal switch
A Ground point at headlights
B Connector, right A-post
C Ground point, right A-post
D Connector, bulkhead
E Connector, electric cooling fan
F Connector, engine compartment

Fuse no.
7 (1985) - 6 (1984)
12 (1985) - 10 (1984)
