Microswitch Test

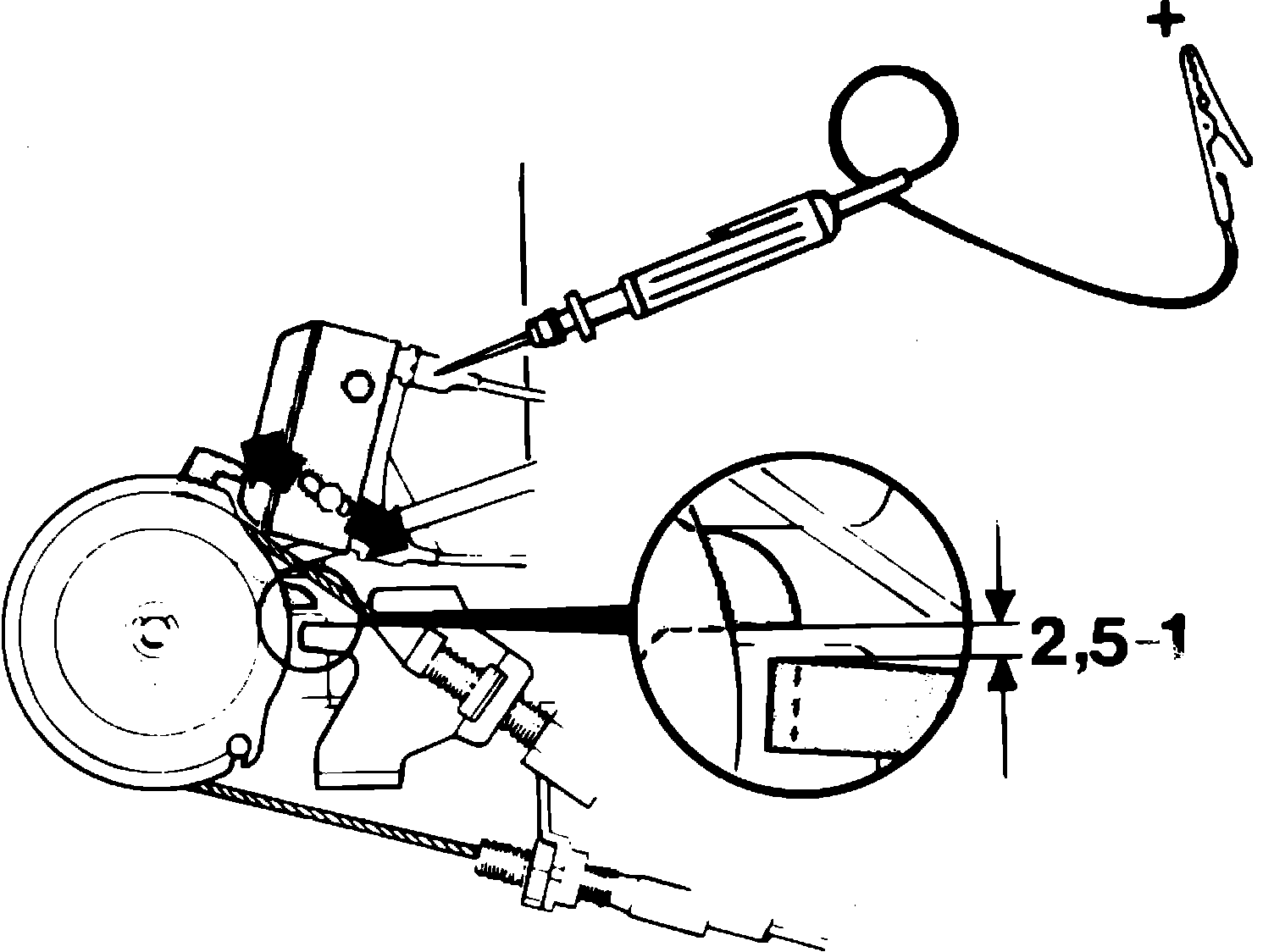

Fig. 5 Testing microswitch:
1.
Connect a test light between microswitch yellow wire,
Fig. 5, and a 12 volt supply.
2.
Ensure test light comes on before the throttle control pulley touches the full throttle stop. If not, adjust microswitch as required.
