Throttle Full Close Switch: Testing and Inspection

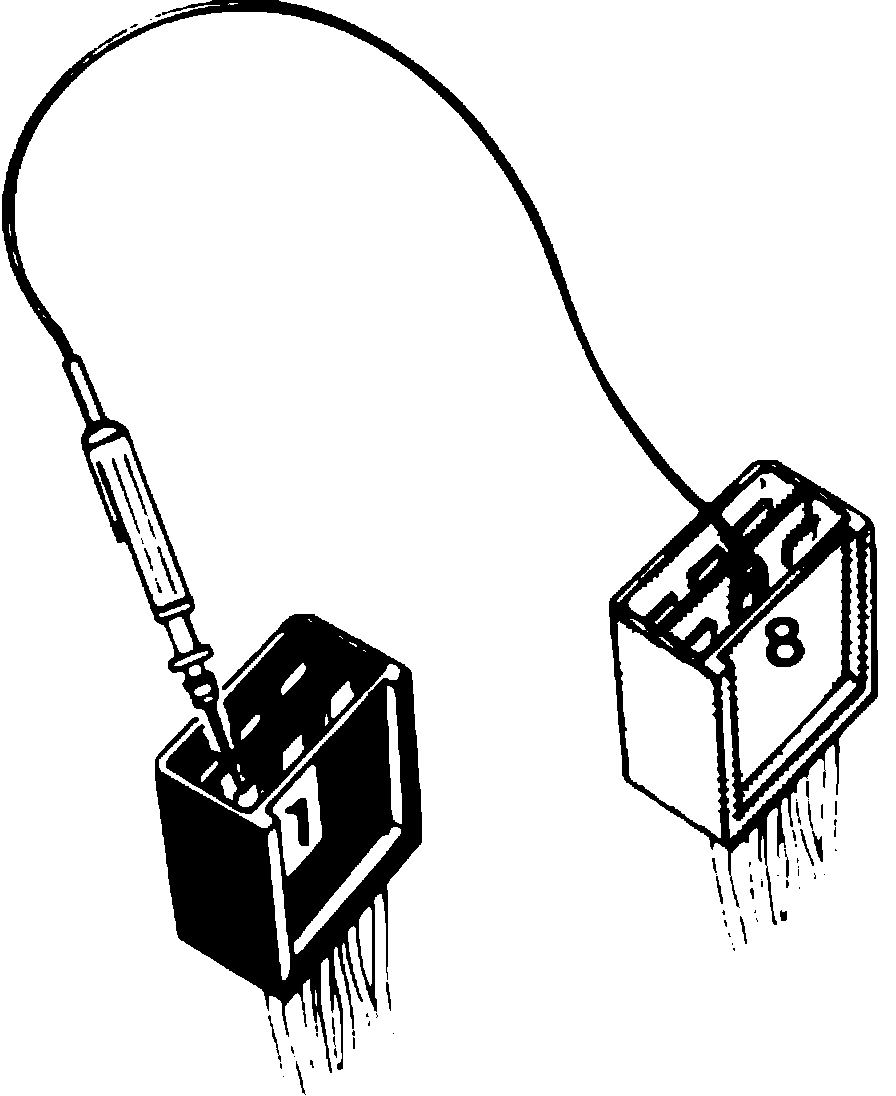

Fig. 4 Connecting test light between electrical connector terminals 1 and 8:
1.
Connect test light between electrical connector terminals 1 and 8,
Fig. 4. 2.
With engine off and throttle at idle position. Test light should be off. If not, refer to ``System Service'' under ``Microswitch, Adjust.''
3.
Depress accelerator pedal, test light should be off. If not, adjust microswitch.
