Air Conditioning

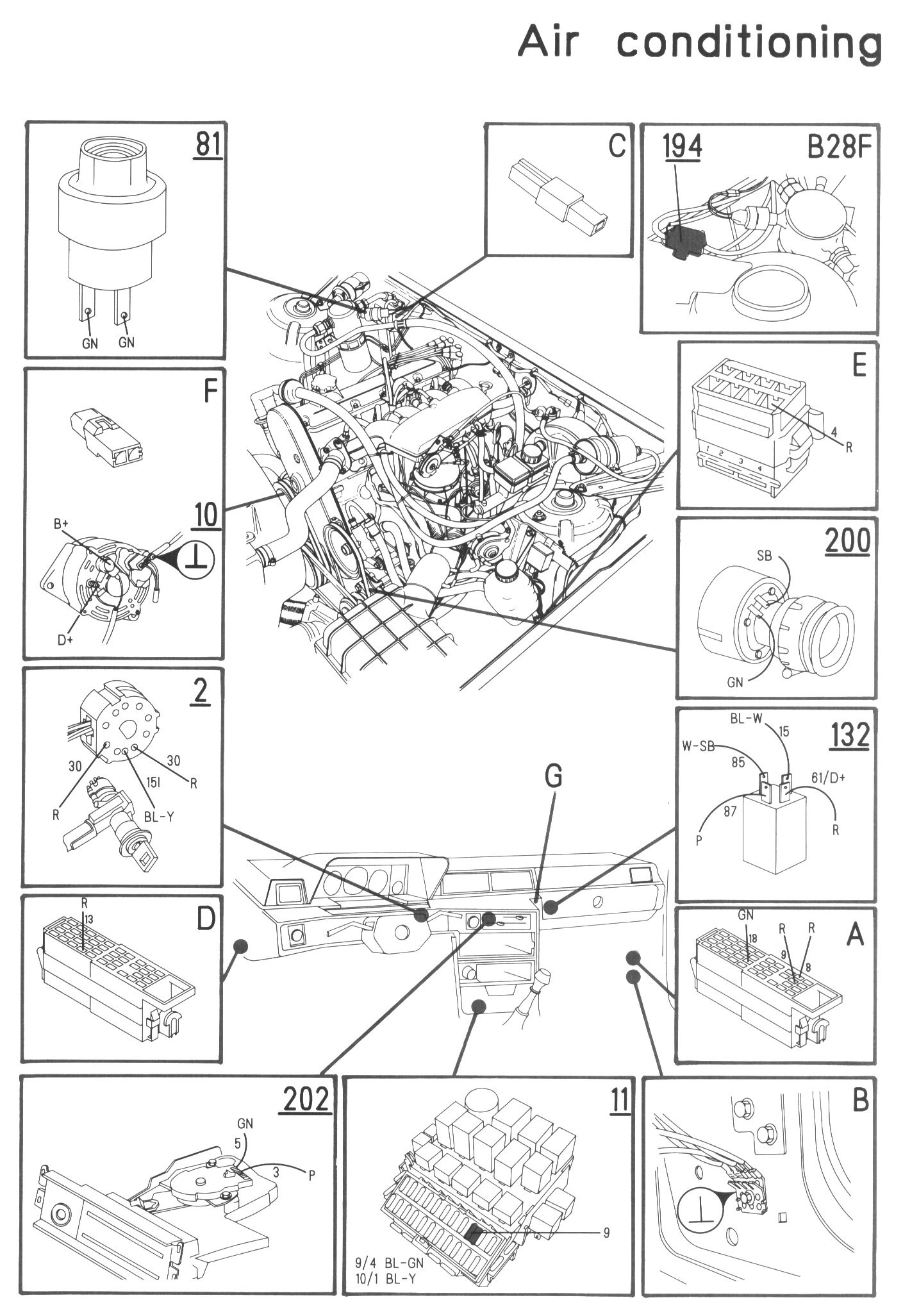

Component / Connector Views:

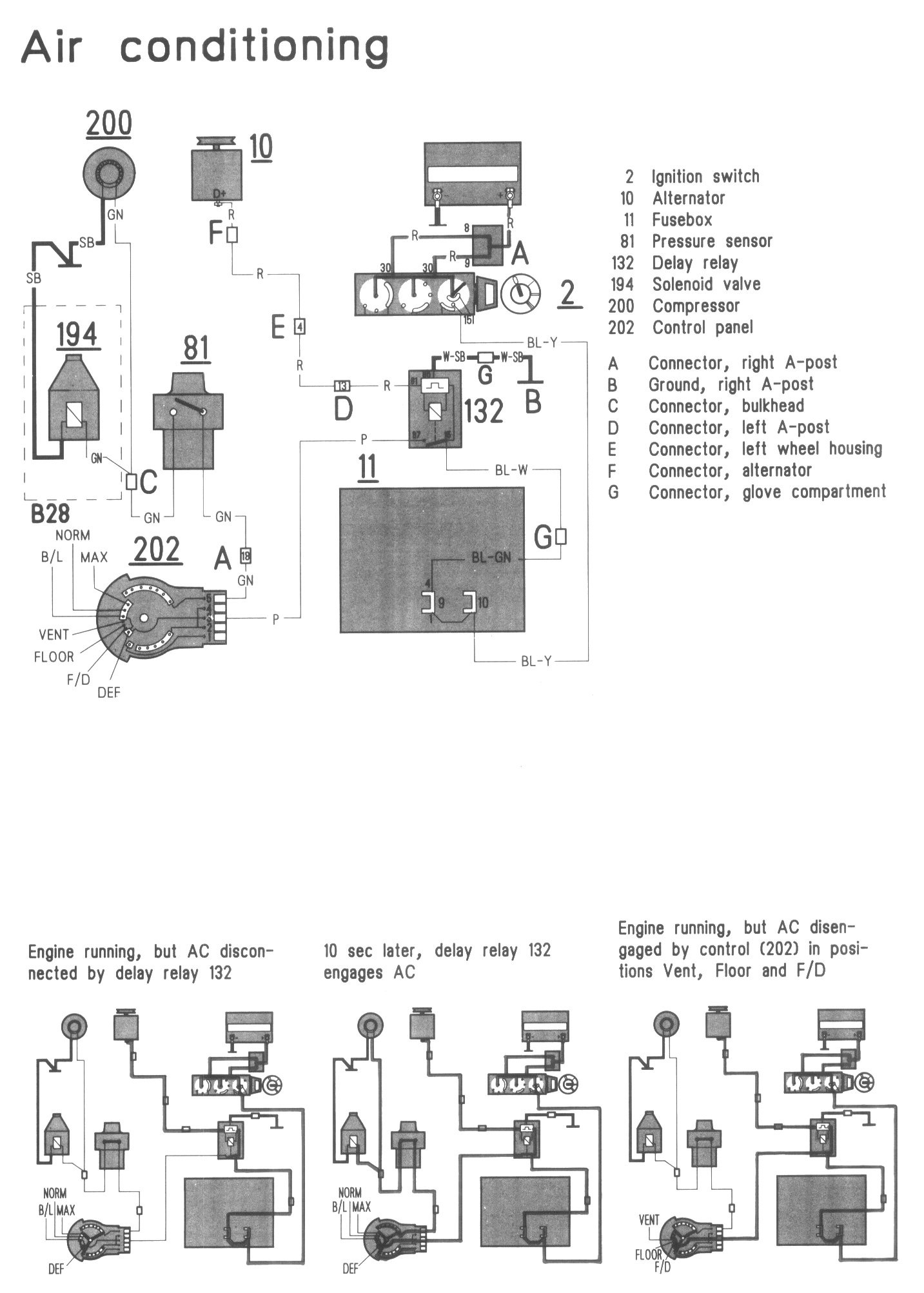

Wiring Diagrams:
LEGEND 2 Ignition switch
10 Alternator
11 Fuse box
81 Pressure sensor
132 Delay relay
194 Solenoid valve
200 Compressor
202 Control panel
A Connector, right A-post
B Ground, right A-post
C Connector, bulkhead
D Connector, left A-post
E Connector, left wheel housing
F Connector, alternator
G Connector, glove compartment
