EGR Diesel, California Models

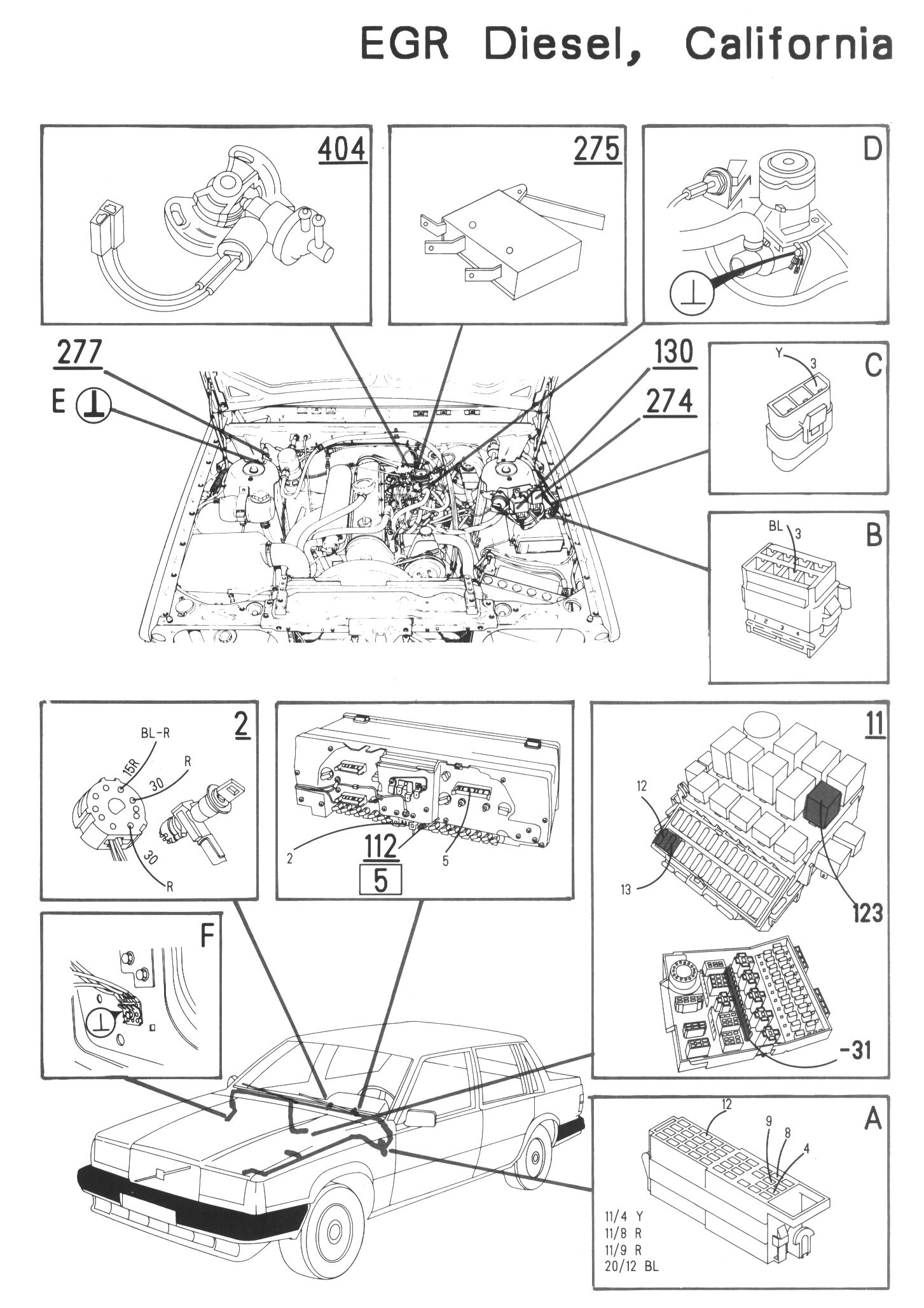

Component / Connector Views:

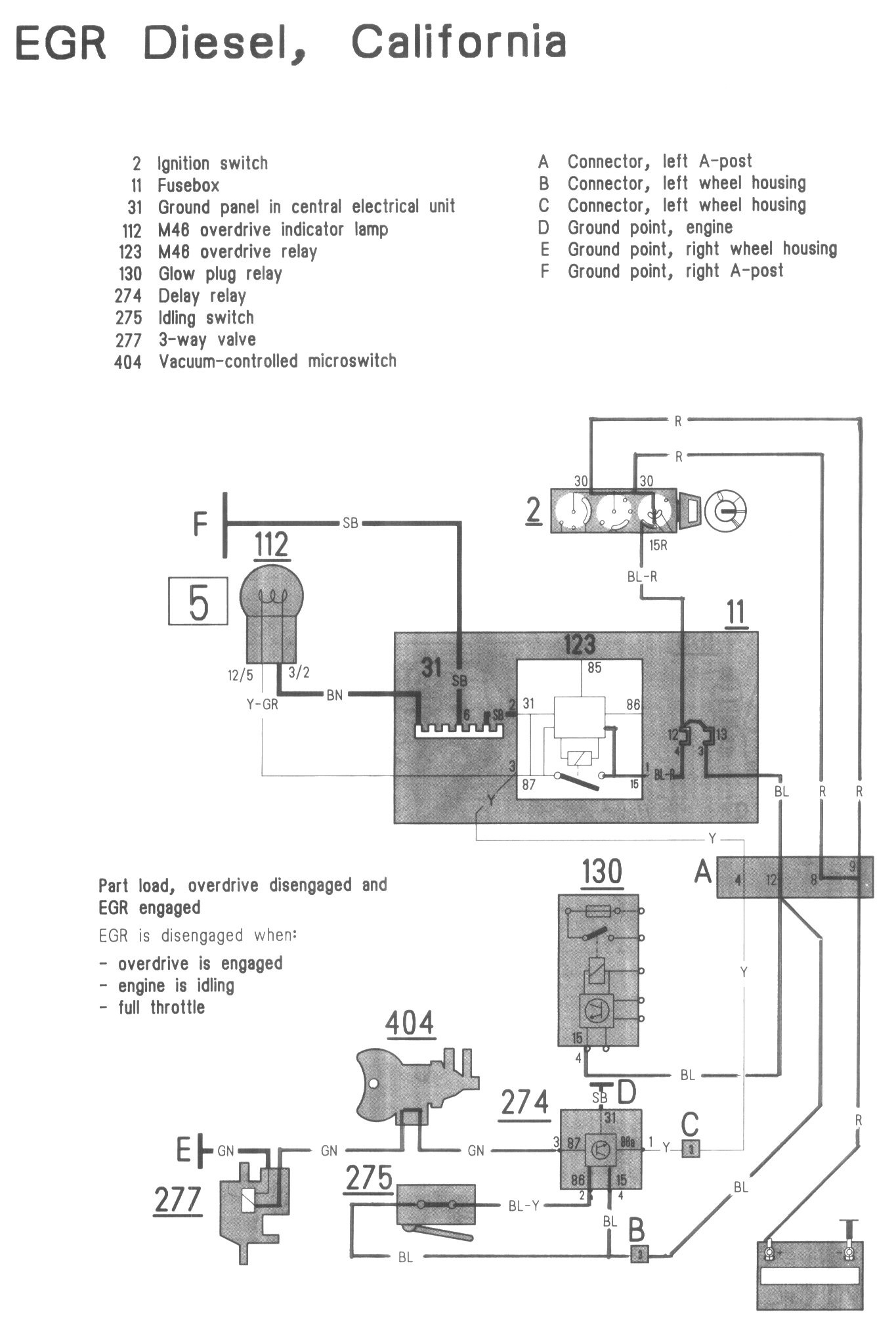

Wiring Diagrams:
LEGEND
2 Ignition switch
11 Fusebox
31 Ground panel in central electrical unit
112 M48 overdrive indicator lamp
123 M46 overdrive relay
130 Glow plug relay
274 Delay relay
275 Idling switch
277 3-way valve
404 Vacuum-controlled microswitch
A Connector, left A-post
B Connector, left wheel housing
C Connector, left wheel housing
D Ground point, engine
E Ground point, right wheel housing
F Ground point, right A-post
