Fuel Injection System

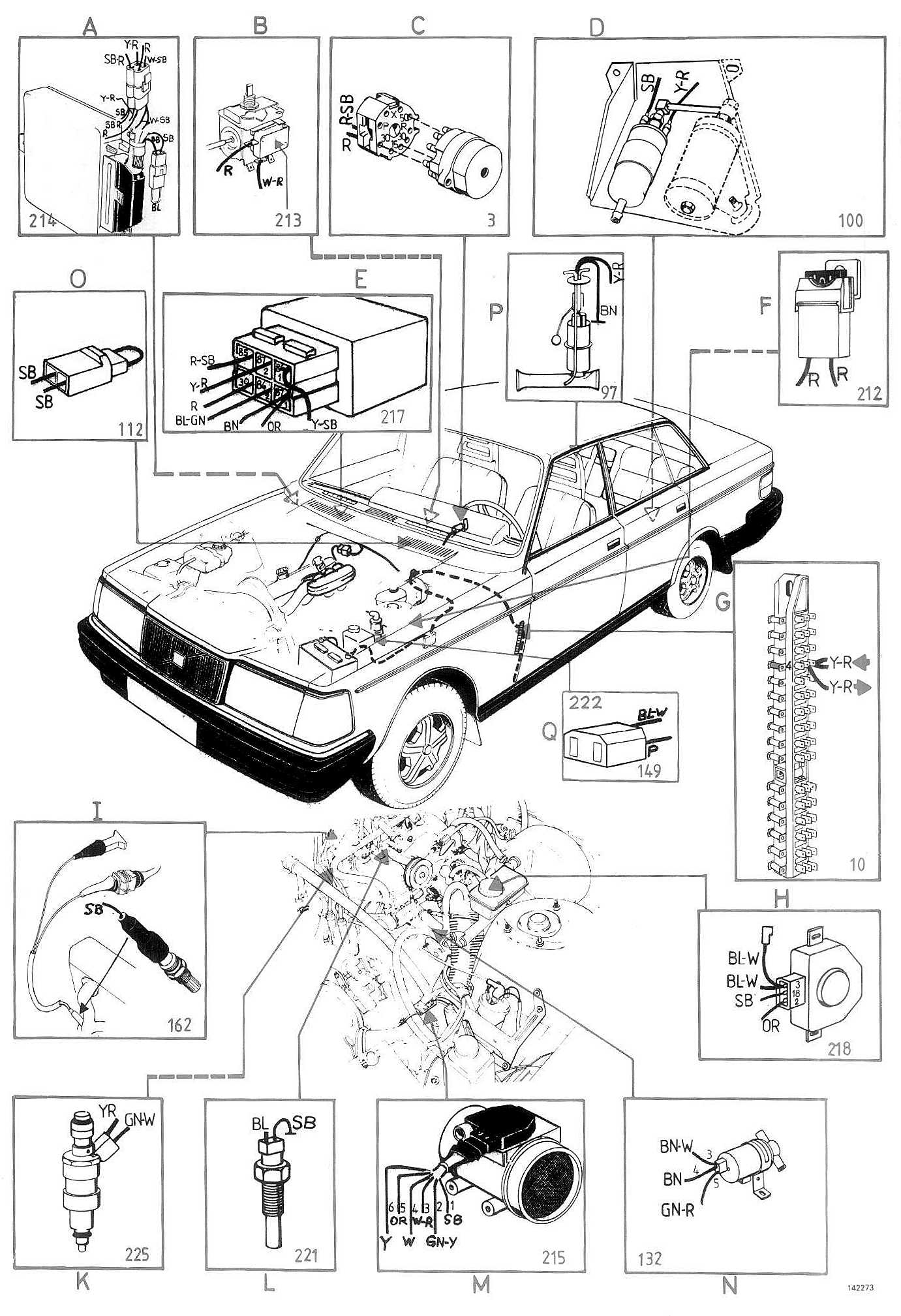

Locations/Connector Views:

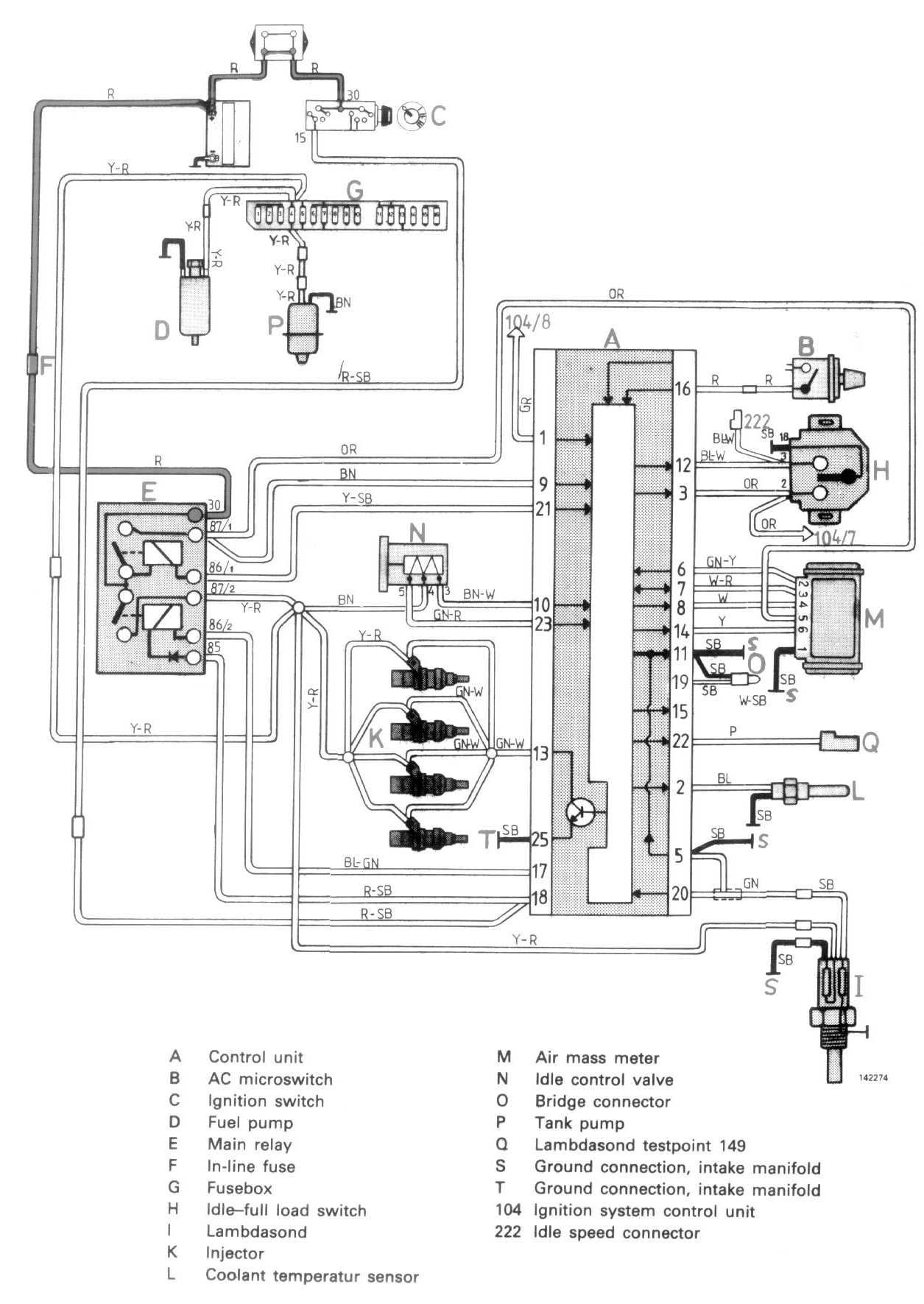

Wiring Diagrams:

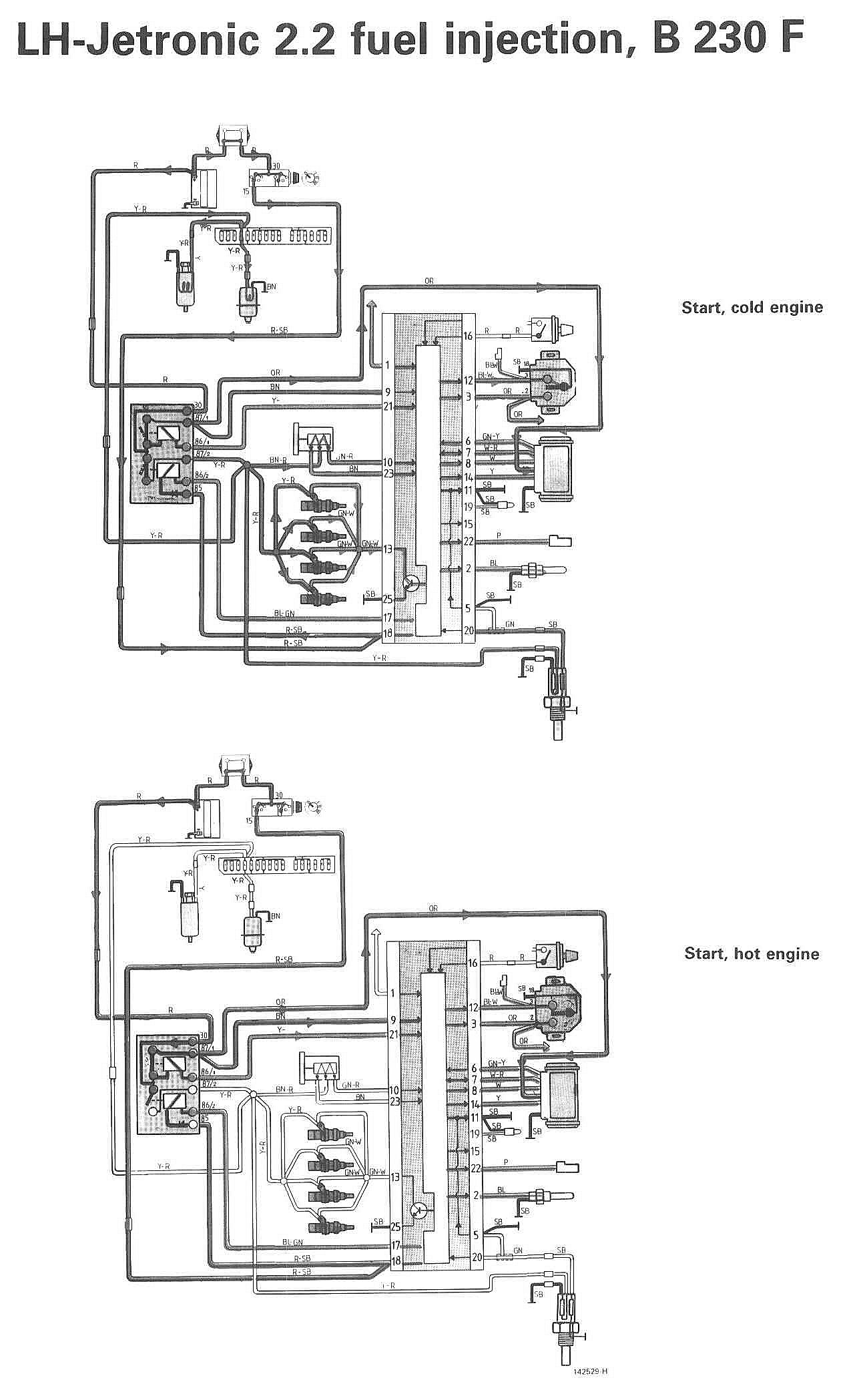

Start (Engine Hot/Cold):

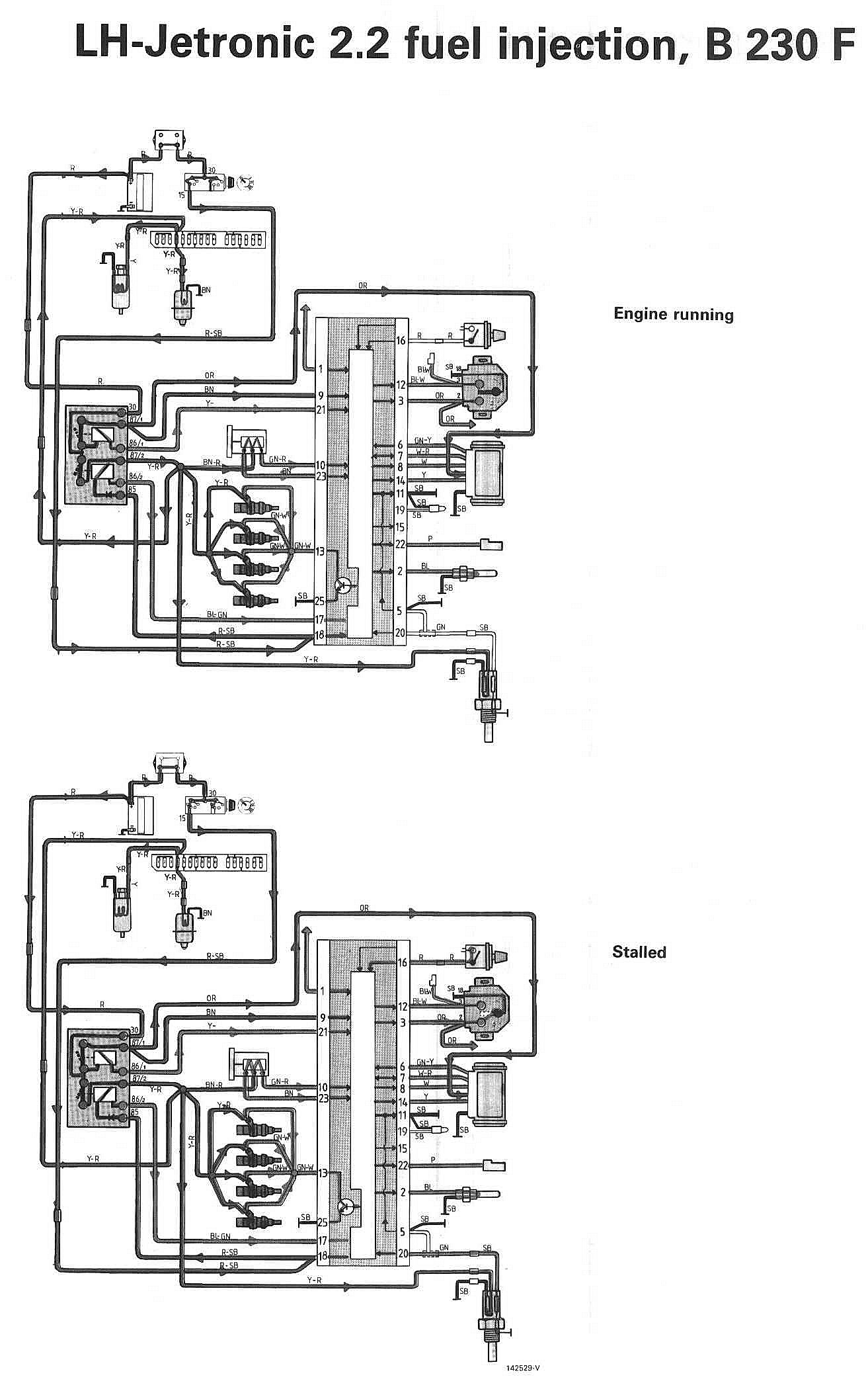

Engine Running/Stalled:
LEGEND A Control unit
B Relay, AC
C Ignition switch
D Fuel pump
E Main relay
F Fuel pump relay
G Fusebox
H Breaker
I Lambdasond
K Injectors
L Ambient temp sensor
M Air mass meter
N Idling valve
O Connector
P Tank pump
Q Test point, Lambdasond, 149 (P)
222 Idle speed adjustment
104 Ignition system, control unit
