Ignition System

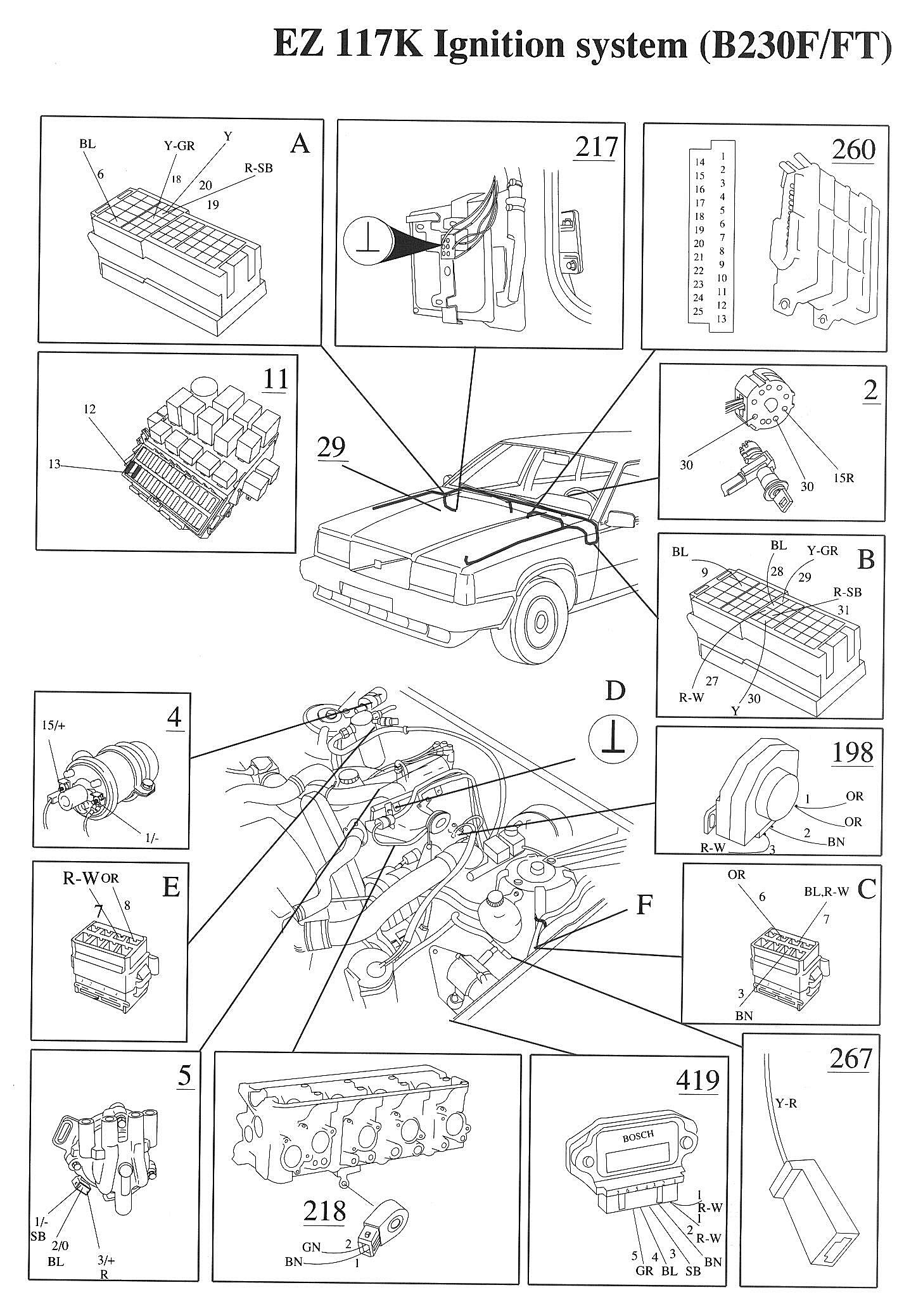

Component / Connector Views:

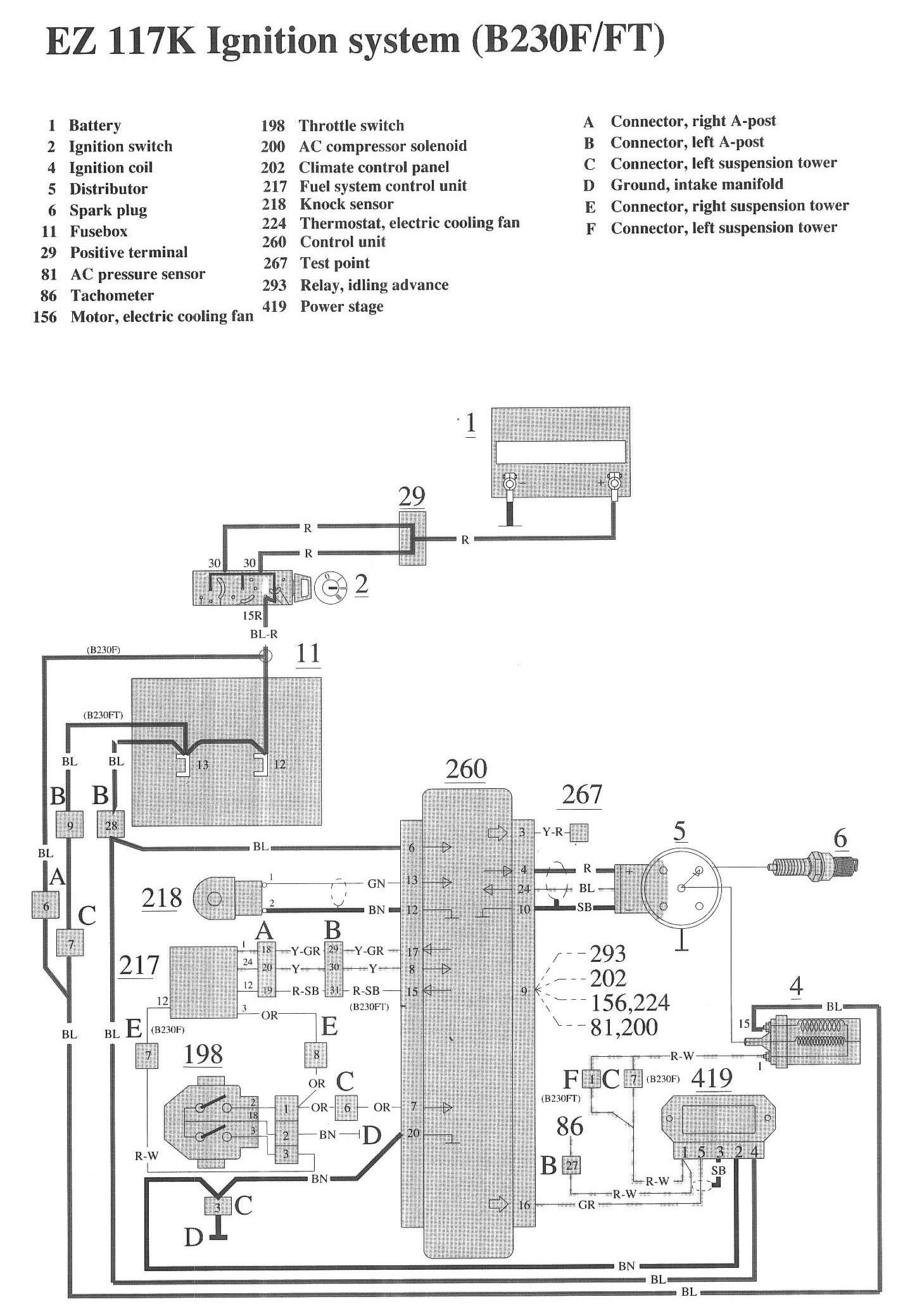

Wiring Diagrams:

LEGEND
1 Battery
2 Ignition switch
4 Ignition coil
5 Distributor
6 Spark plug

11 Fusebox
29 Positive terminal
81 AC pressure sensor
86 Tachometer

156 Motor, electric cooling fan
198 Throttle switch
200 AC compressor solenoid
202 Climate control panel
217 Fuel system control unit
218 Knock sensor
224 Thermostat, electric cooling fan
260 Control unit
267 Test point
293 Relay, idling advance
419 Power stage

A Connector, right A-post
B Connector, left A-post
C Connector, left suspension tower
D Ground, intake manifold
E Connector, right suspension tower
F Connector, left suspension tower
