Fuel Injection System

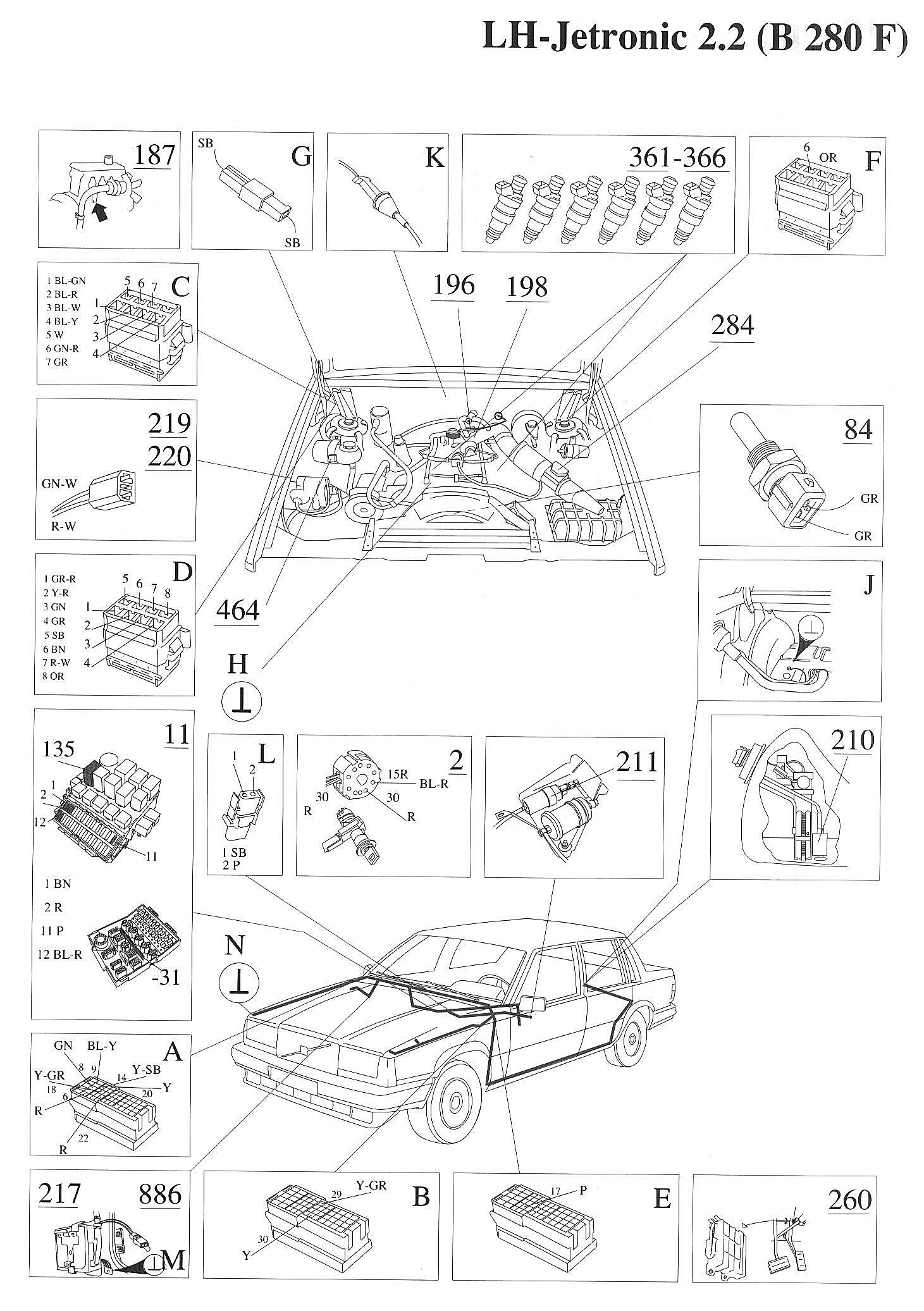

Component Locations:

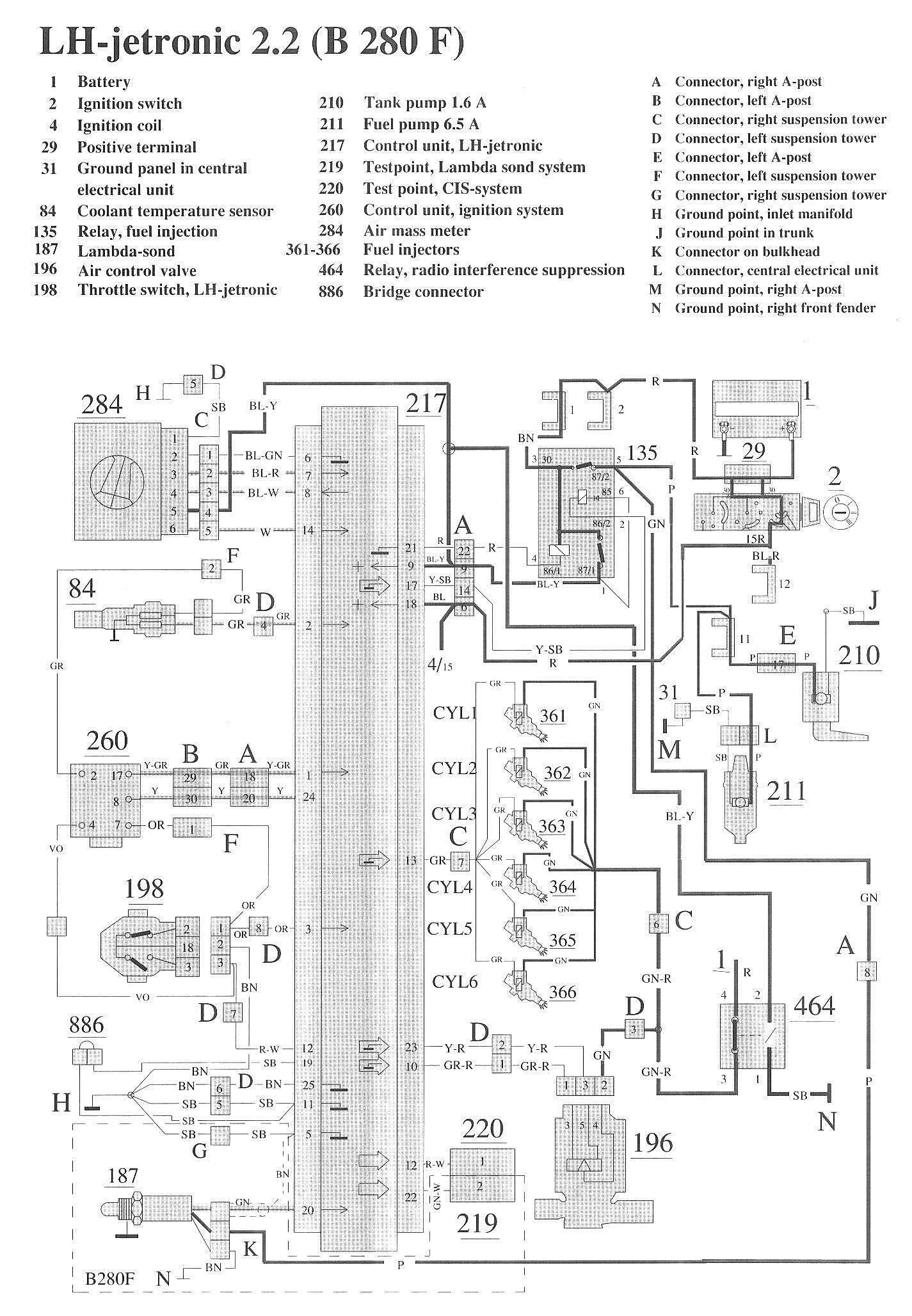

Wiring Diagram:

LEGEND
1 Battery
2 Ignition switch
4 Ignition coil

29 Positive terminal
31 Ground panel in central electrical unit
84 Coolant temperature sensor

135 Relay, fuel injection
187 Lambda-sond
196 Air control valve
198 Throttle switch, LH-jetronic
210 Tank pump 1.6 A
211 Fuel pump 6.5 A
217 Control unit, LH-jetronic
219 Test point, Lambda sond system
220 Test point, CIS-system
260 Control unit, ignition system
284 Air mass meter
361-366 Fuel injectors
464 Relay, radio interference suppression
886 Bridge connector

A Connector, right A-post
B Connector, left A-post
C Connector, right suspension tower
D Connector, left suspension tower
E Connector, left A-post
F Connector, left suspension tower
G Connector, right suspension tower
H Ground point, inlet manifold
J Ground point in trunk
K Connector on bulkhead
L Connector, central electrical unit
M Ground point, right A-post
N Ground point, right front fender
