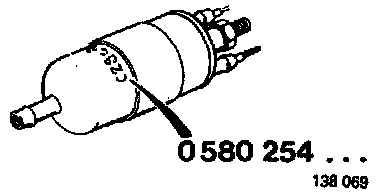

Fuel Pump
Pump capacity at line pressure of 250 +/- 10kPa
(36 +/- 1.4 psi)
+20°C=68°F
12V:
130 +/- 10 liters/hour (1.2 liters/30 secs)
11V:
120 +/- 10 liters/hour (1.0 liters/30 secs)
10V:
95 +/- 10 liters/hour (0.8 liters/30 secs)
Current consumption at line pressure of 250 kPa(36 psi)
+20°C and 12V:
max 5.0 A
