Brakes and Traction Control: Tools and Equipment

TOOLS AND EQUIPMENT

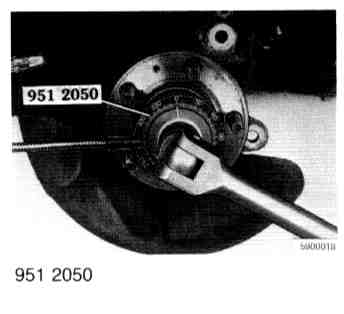

951 2050-7 Angle gauge

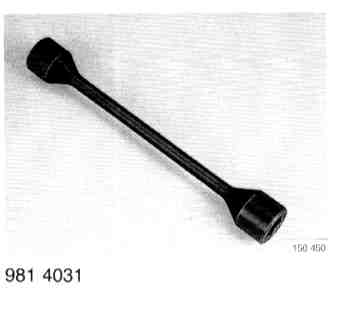

981 4031-2 Torque socket: for tightening wheel nuts using a conventional, pneumatic, impact nut runner delivering a torque of 250 - 350 Nm (184 - 258 ft. lbs.).

SPECIAL TOOLS
999

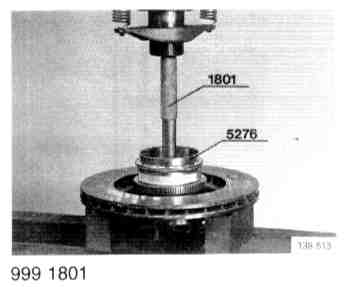

1801-3 Handle: for drifts

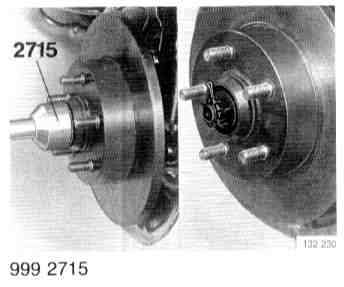

2715-4 Socket: for grease cup





2722-6 Puller: for front wheel bearing

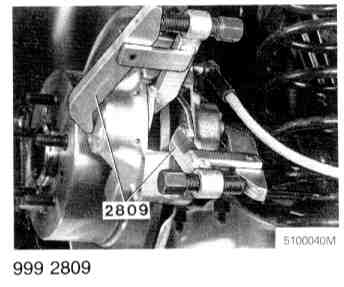

2809-5 Press tool: for brake pistons

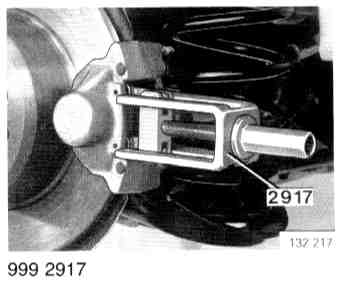

2917-6 Extractor: for brake pads

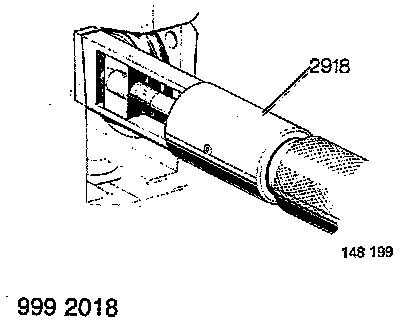

2918-4 Adjusting tool: for brake pistons

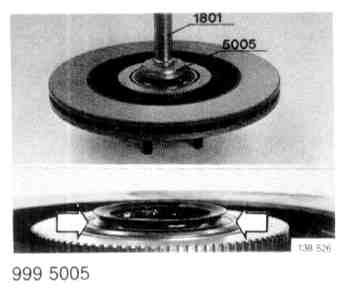

5005-7 Drift: for front wheel hub bearing race





5009-9 Drift: for removing sensor wheel from brake disc

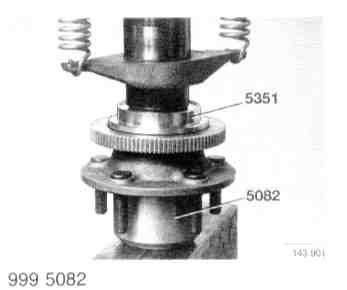

5082-6 Drift: for installing sensor wheel on front hub

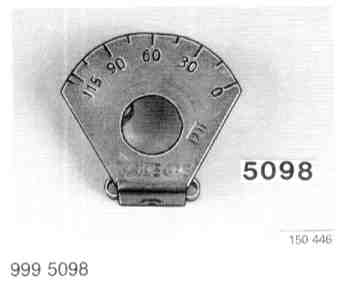

5098-2 Protractor: for tightening hub nut. Replaced successively by angle gauge 951 2050

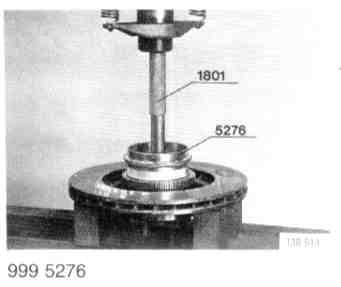

5276-4 Drift: for mounting sensor wheel on brake disc

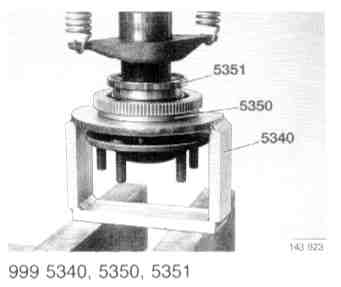

5340-8 Counterhold: for removing rear wheel hub from bearing housing
5350-7 Spacer: for removing sensor wheel from front hub
5351-5 Drift: for removing sensor wheel from front hub

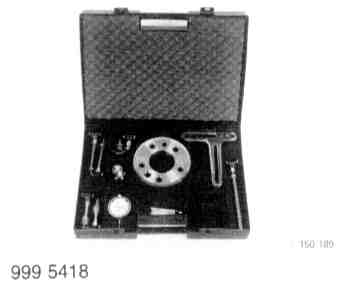

5418-2 Set of gauges

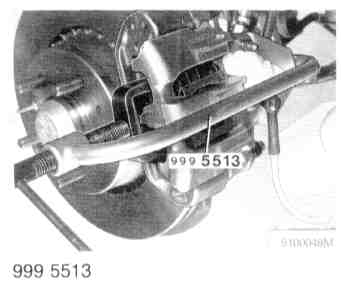

5513-0 Clamp: for compressing brake pistons

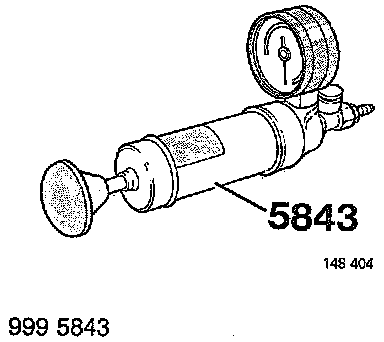

5843-1 Vacuum pump

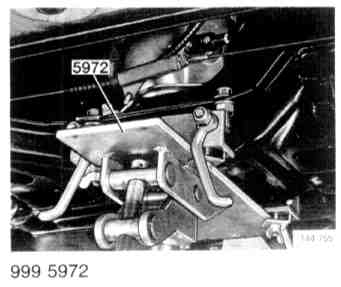

5972-8 Fixture: for mobile assembly hoist
