Ignition Timing: Adjustments

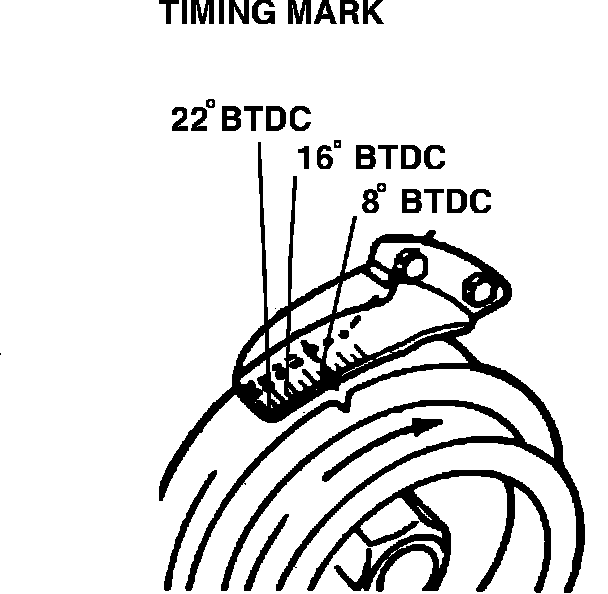

Timing Mark:

TIMING ADJUSTMENT

1. Engine must be at operating temperature and accessories turned off. Timing should be:

16° at 750 ±50 RPM

2. Timing can only be checked, no adjustments are possible. If timing is incorrect, refer to COMPUTERIZED ENGINE CONTROLS.
