Fuse, Ground Connections and Connectors

Complete Inspection Of The LH-Jetronic System 2.2

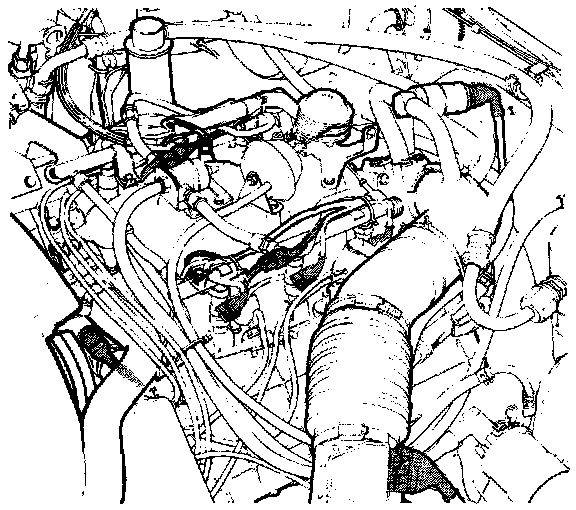

Check that ground connections on inlet manifold are correctly connected. Poor connections can cause many different fault symptoms. Also check that the Lambda sond's test socket (green/white) is at the front right fender and is not grounded (applies to the F-engine).


Check Fuses For Pump Relay And Tank Pump
.

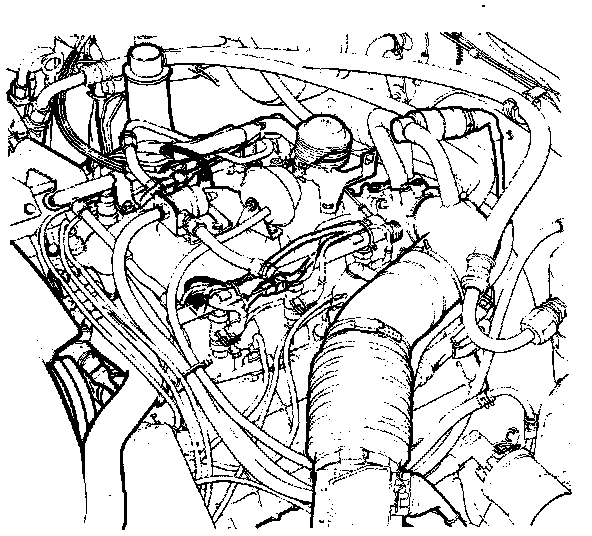

Check Connectors For Air Mass Meter, Air Control Valve, Knock Sensor, Coolant Temperature Sensor And Injectors.





The connectors should be correctly connected and make good contact.
