EZ-116 K Ignition System

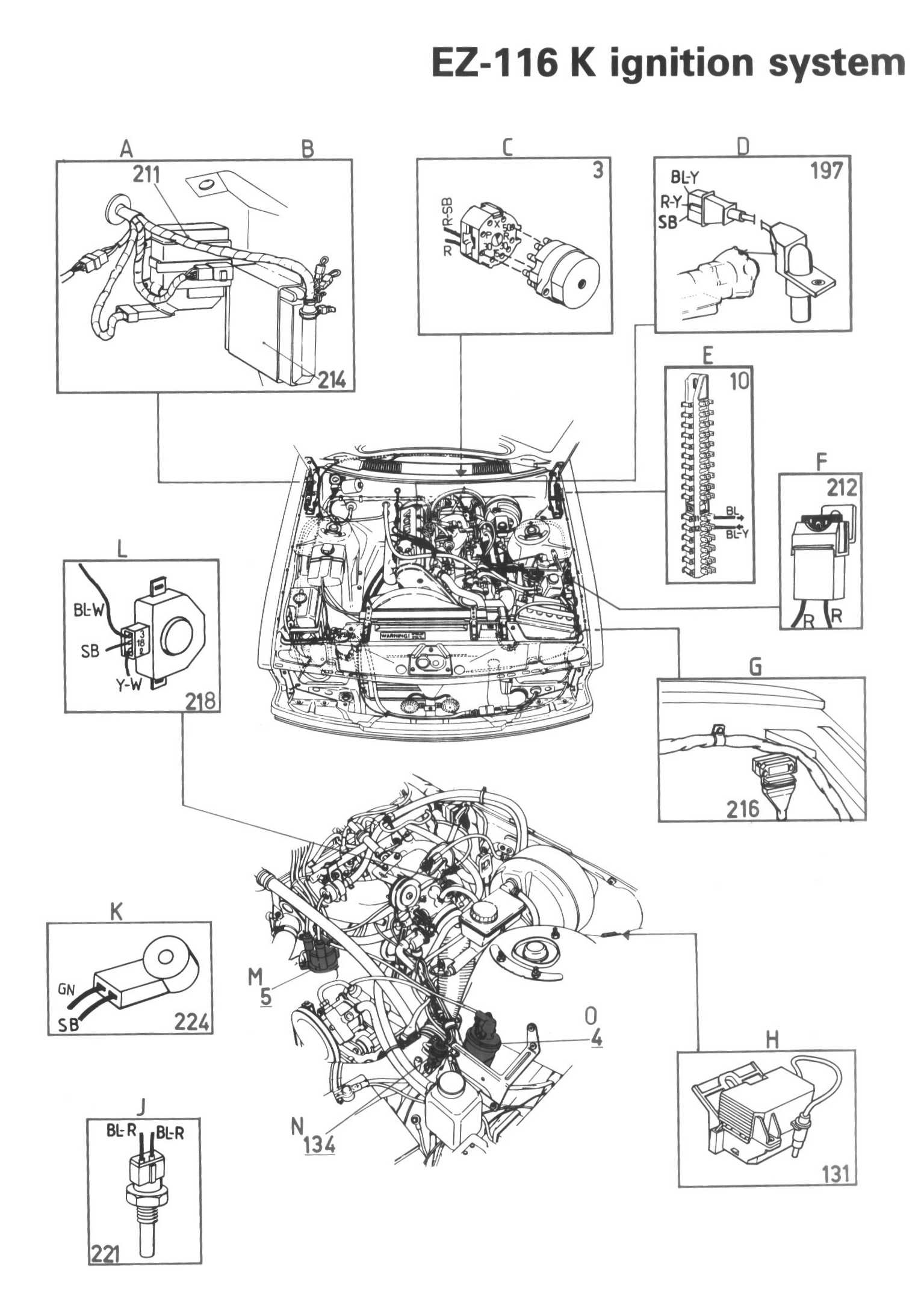

Component / Connector Views:

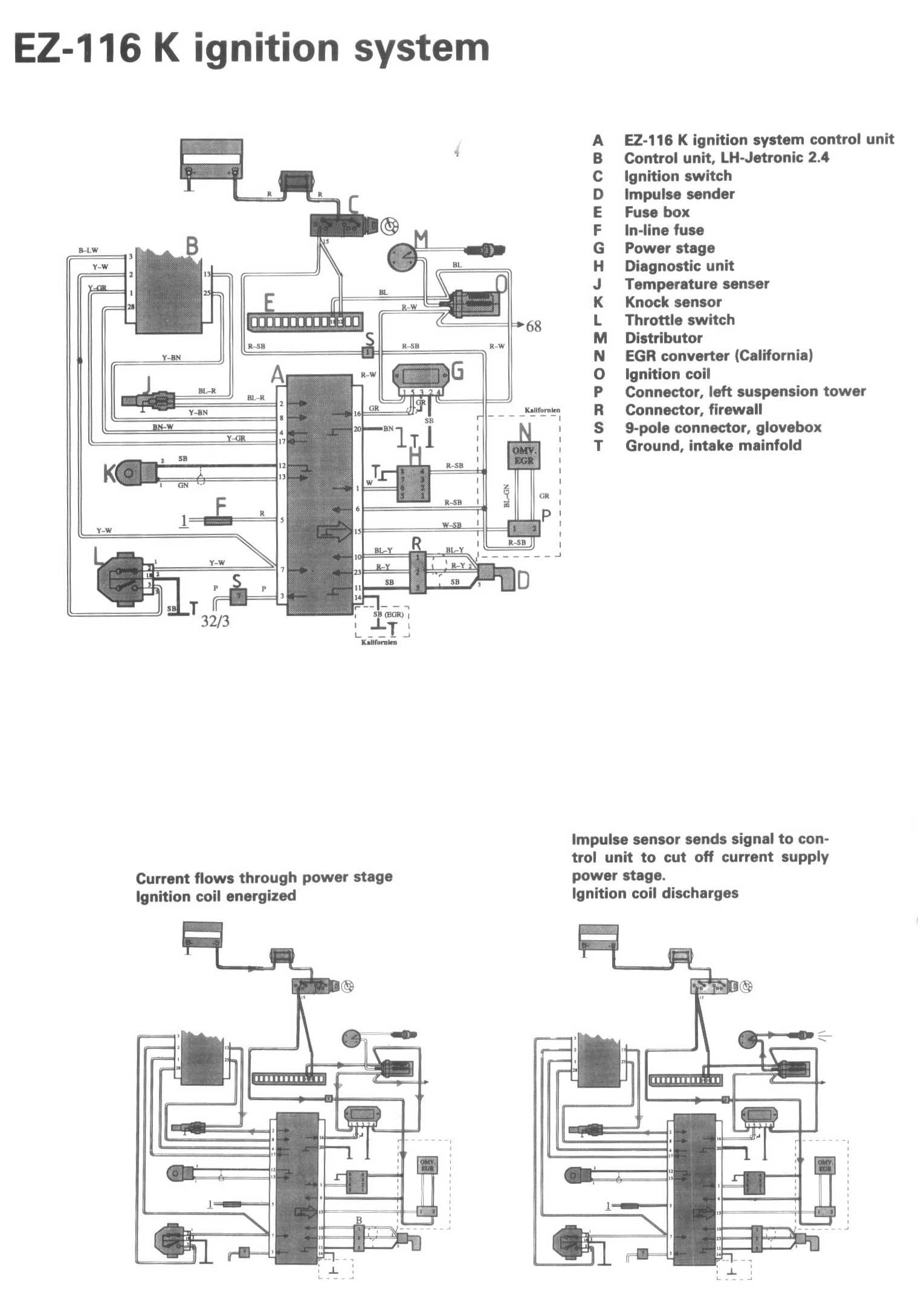

Wiring Diagrams:

LEGEND
A Ez-116 K ignition system control unit
B Control unit, LH-Jetronic 2.4
C Ignition switch
D Impulse sender
E Fuse box
F In-line fuse
G Power stage
H Diagnostic unit
J Temperature sensor
K Knock sensor
L Throttle switch
M Distributor
N EGA converter (California)
O Ignition coil
P Connector, left suspension tower
A Connector, firewall
S 9-pole Connector. glovebox
T Ground, intake manifold
