Fuel Injection System

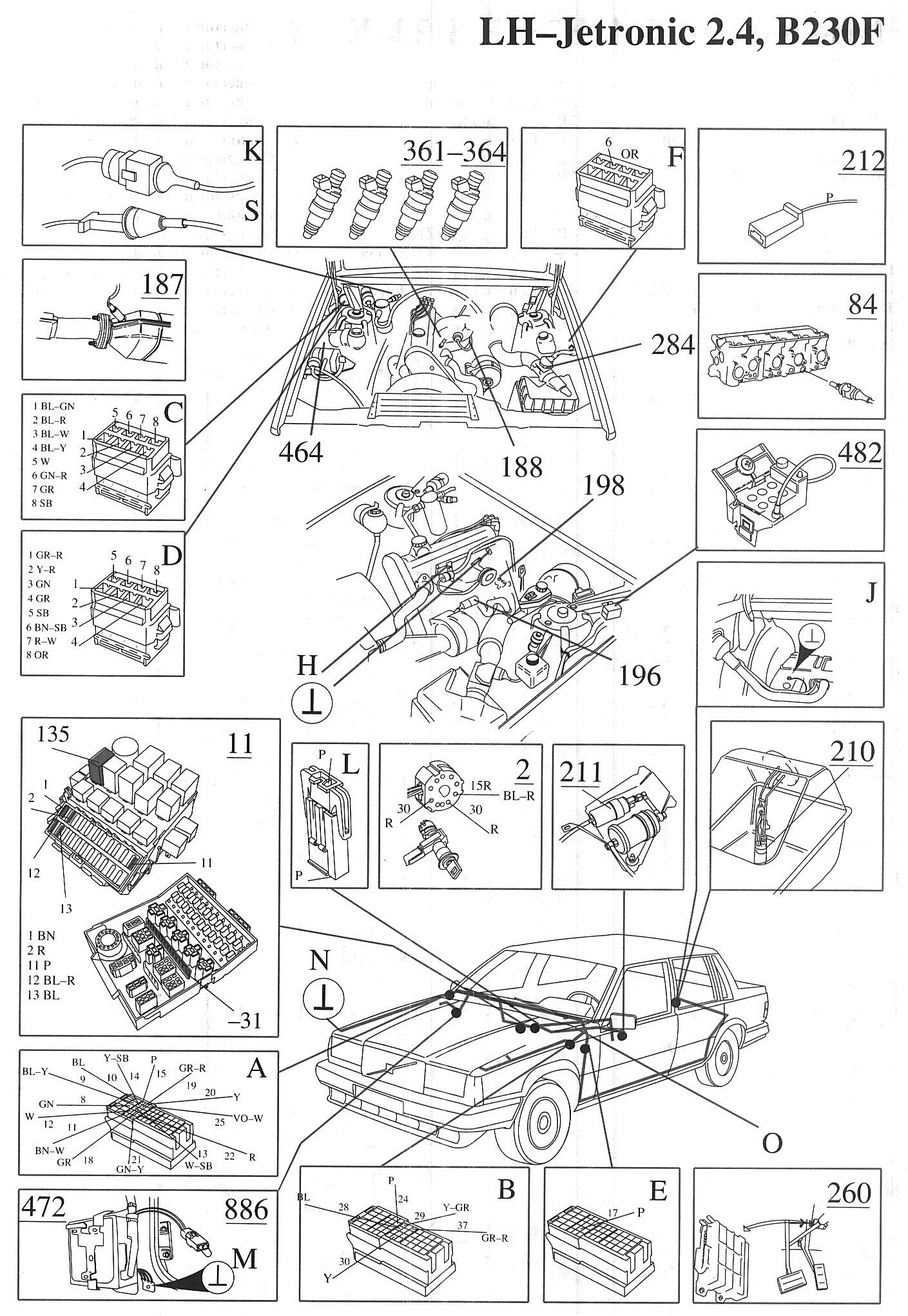

Component / Connector Locations:

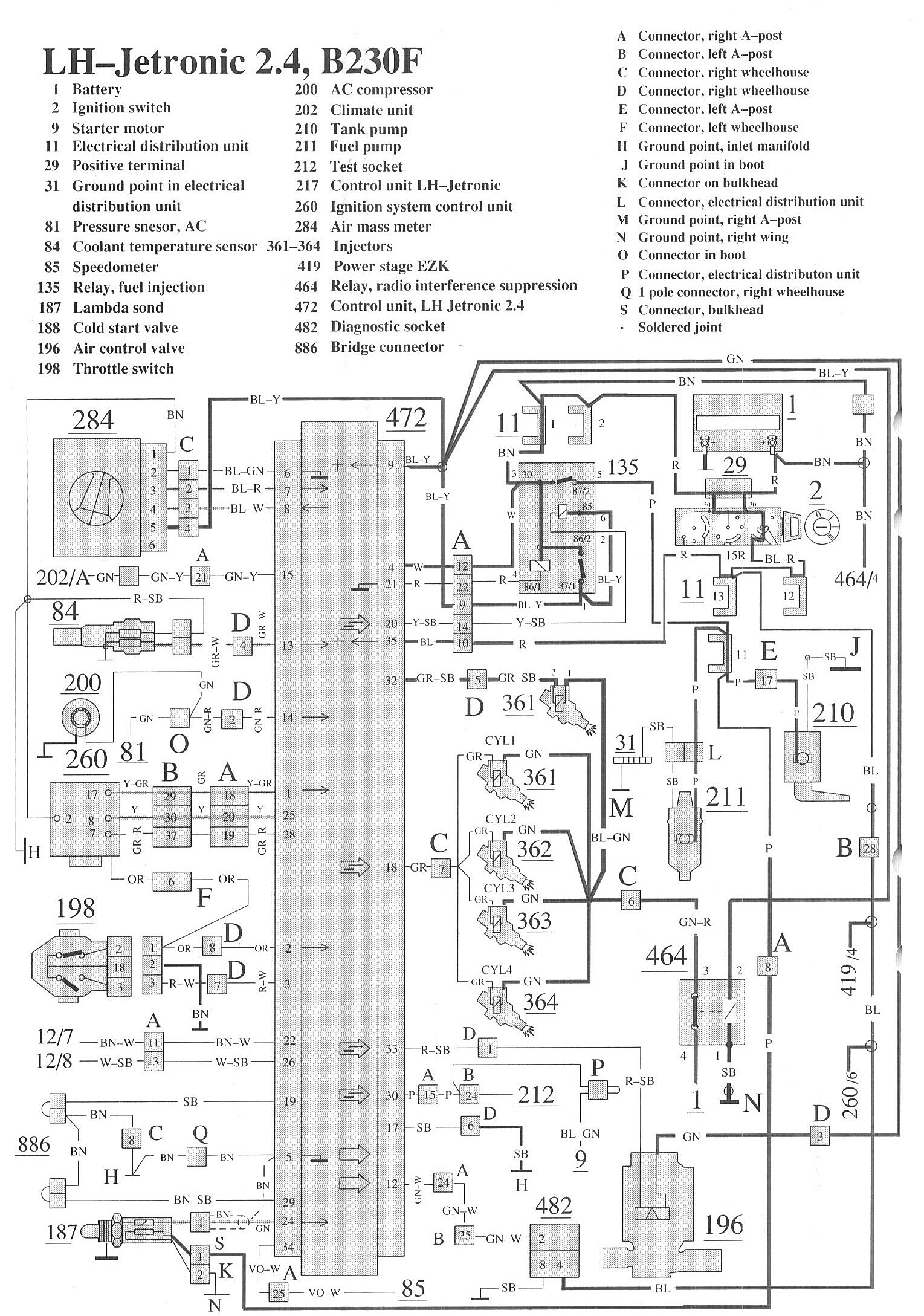

Wiring Diagrams:

LEGEND
1 Battery
2 Ignition switch
9 Starter motor

11 Electrical distribution unit
29 Positive terminal
31 Ground point in electrical distribution unit
81 Pressure sensor, AC
84 Coolant temperature sensor
85 Speedometer

135 Relay, fuel injection
187 Lambda sond
188 Cold start valve
196 Air control valve
198 Throttle switch
200 AC compressor
202 Climate unit
210 Tank pump
211 fuel pump
212 Test Socket
217 Control unit LH-Jetronic
260 Ignition system control unit
284 Air mass meter
361-364 Injectors
419 Power stage EZK
464 Relay, radio interference suppression
472 Control unit, LH Jetronic 2.4
482 Diagnostic socket
886 Bridge connector
