Rex I Ignition System (B230F)

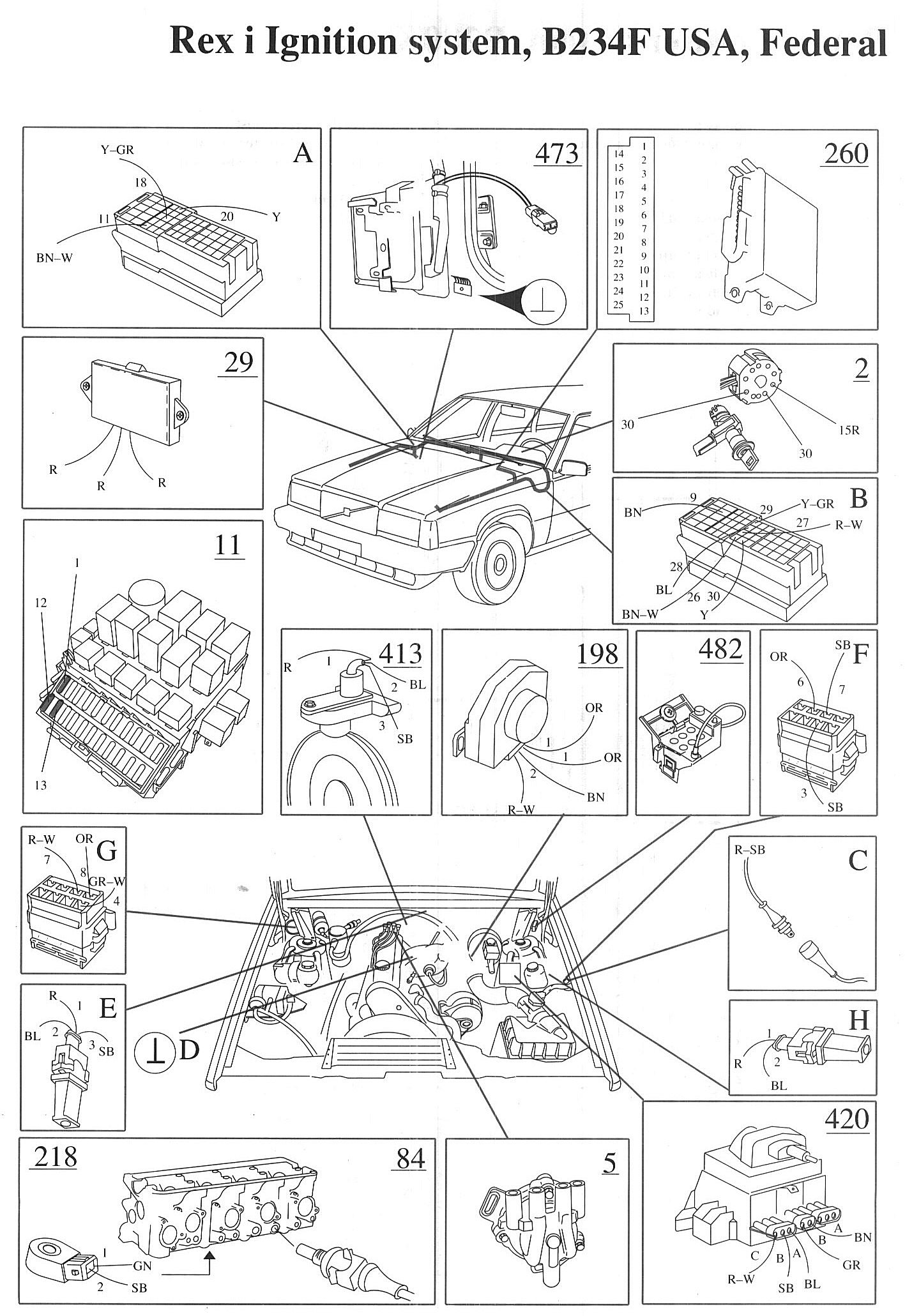

Component / Connector Locations:

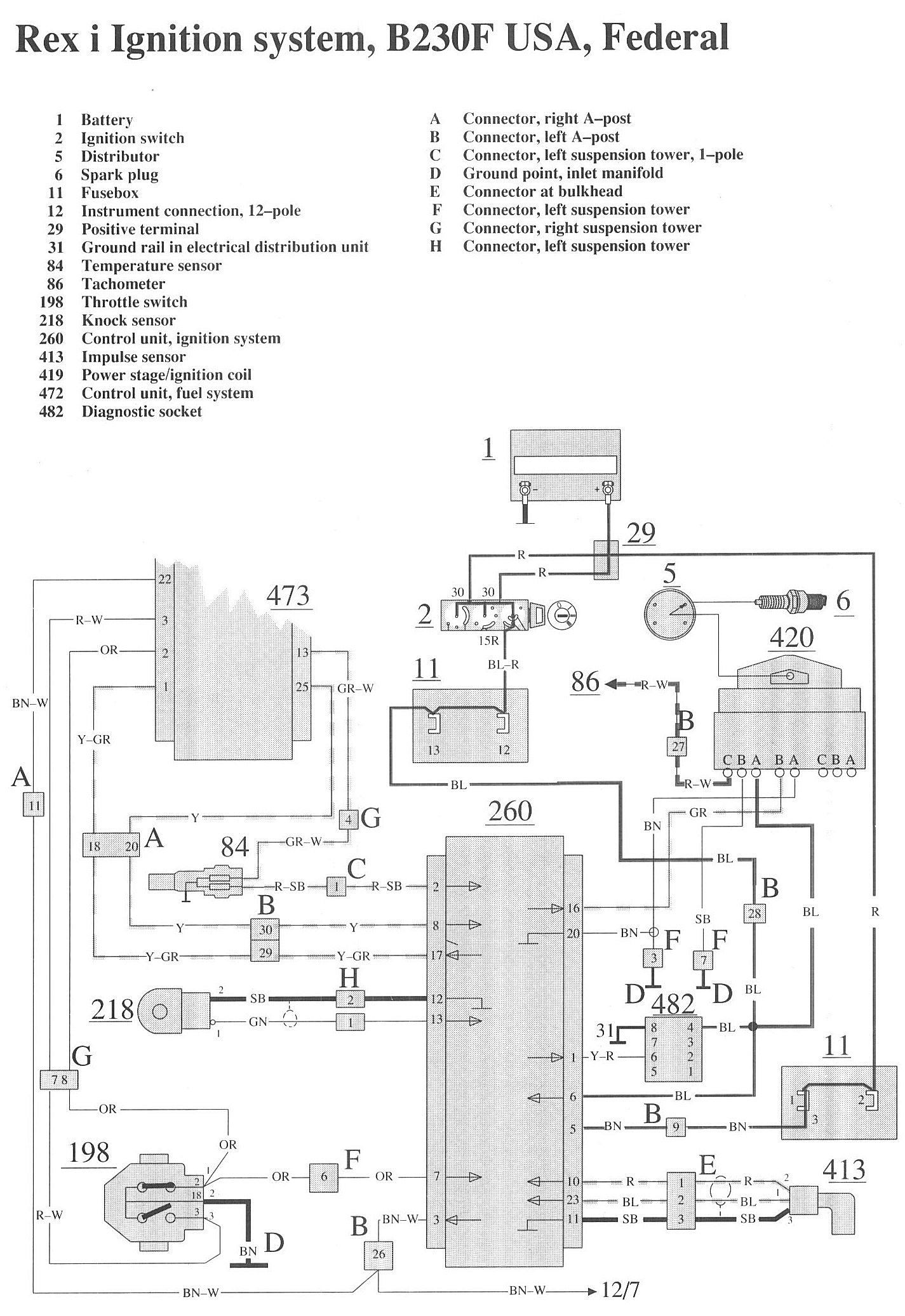

Wiring Diagrams:

LEGEND
1 Battery
2 Ignition switch
5 Distributor
6 Spark plug

11 Fusebox
12 Instrument connection, 12-pole
29 Positive terminal
31 Ground rail in electrical distribution unit
84 Temperature sensor
86 Tachometer

198 Throttle switch
218 Knock sensor
260 Control unit, ignition system
413 Impulse sensor
419 Power stage/ignition coil
472 Control unit, fuel system
482 Diagnostic socket
