Fuel Injection System

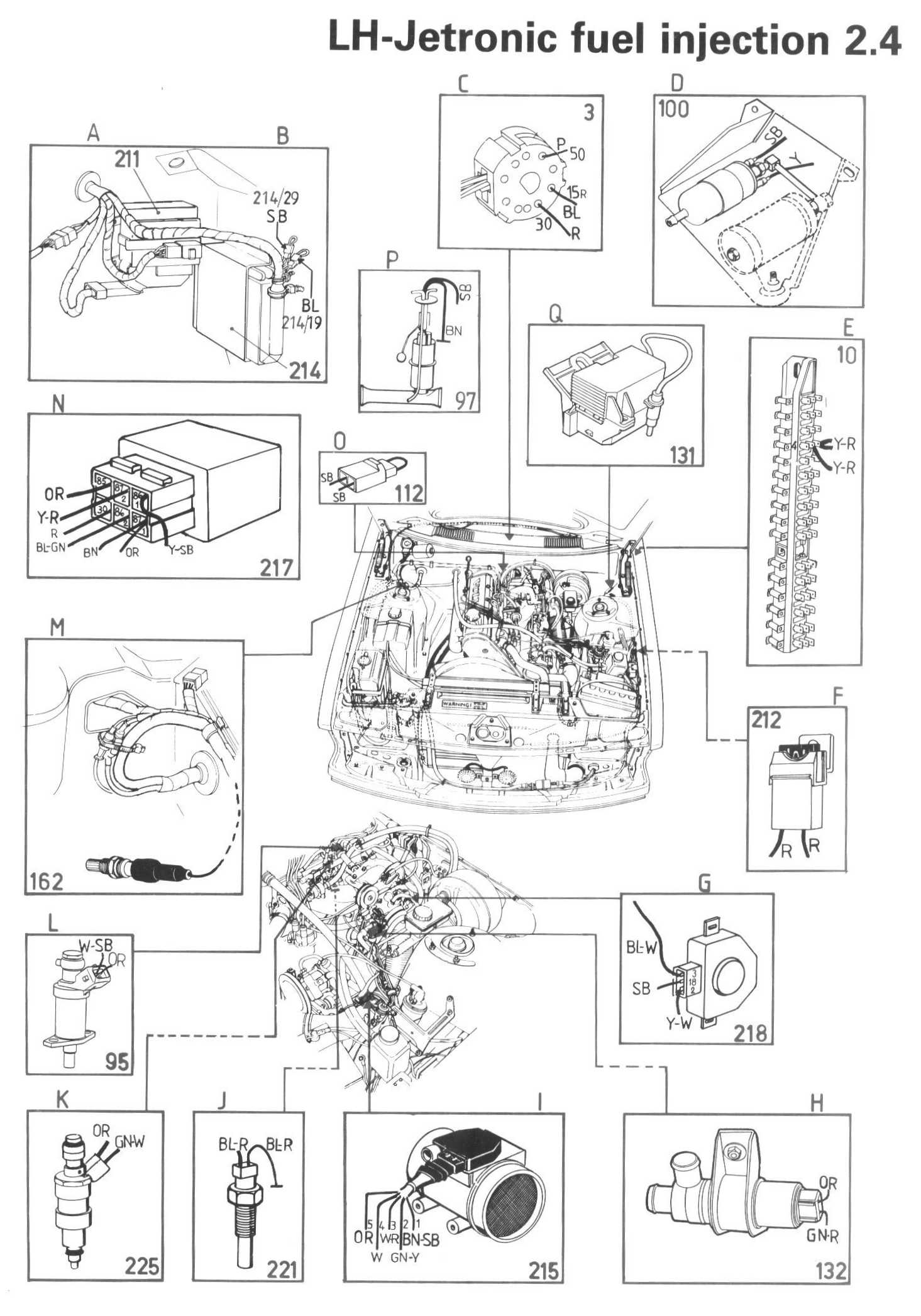

Component / Connector Views:

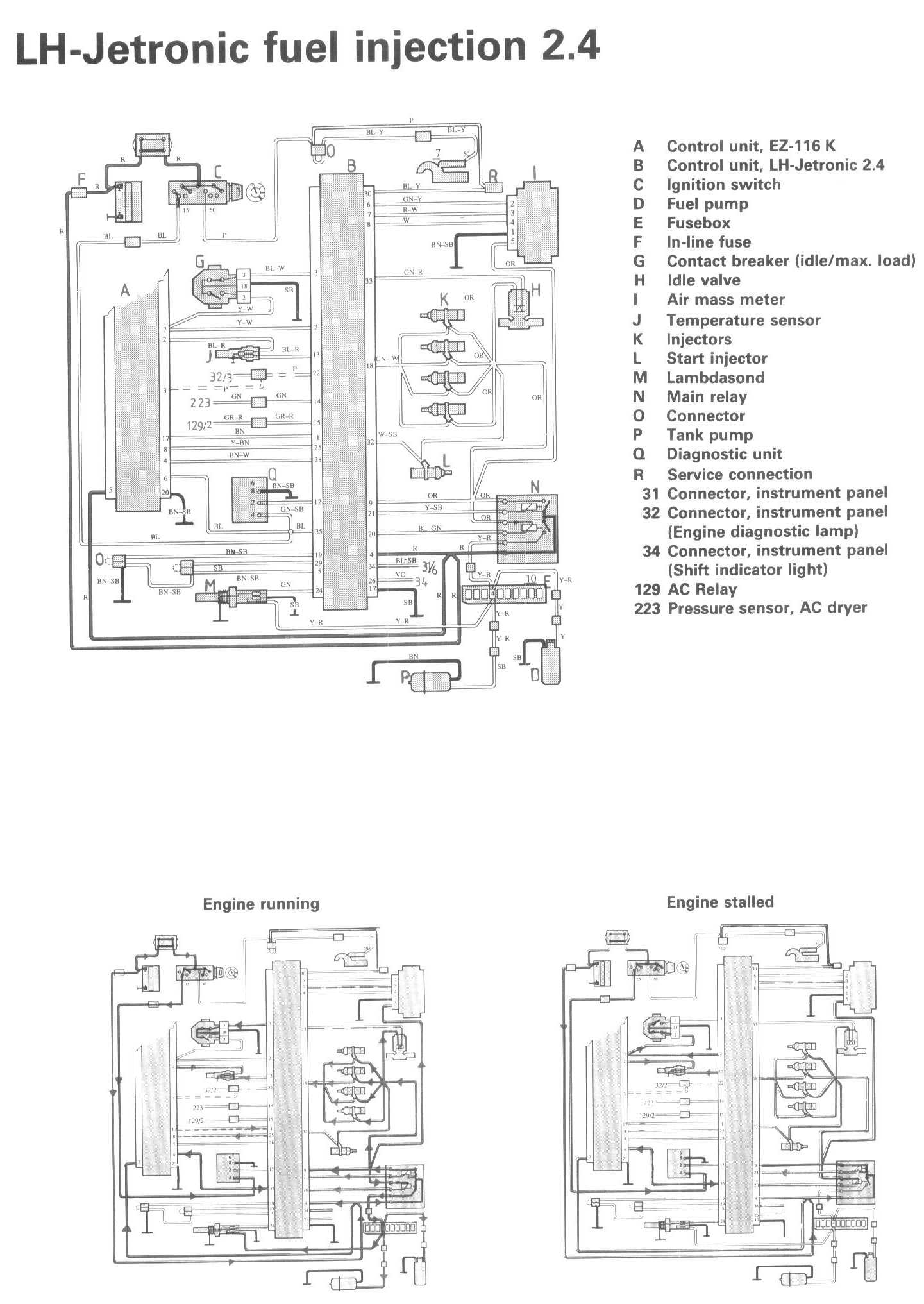

Wiring Diagrams:

LEGEND
A Control unit, EZ-116 K
B Control unit, LH.Jetronic 2.4
C Ignition switch
D Fuel pump
E Fusebox
F In-line fuse
G Contact breaker (idle/max. load)
H Idle valve
I Air mass meter
J Temperature sensor
K Injectors
L Start injector
M Lambdasond
N Main relay
O Connector
P Tank pump
Q Diagnostic unit
R Service connection
31 Connector, instrument panel
32 Connector, instrument panel (Engine diagnostic lamp)
34 Connector, instrument panel (Shift indicator light)
129 AC Relay
223 Pressure sensor. AC dryer
