Powertrain Management: Locations
BD.Location Of Components

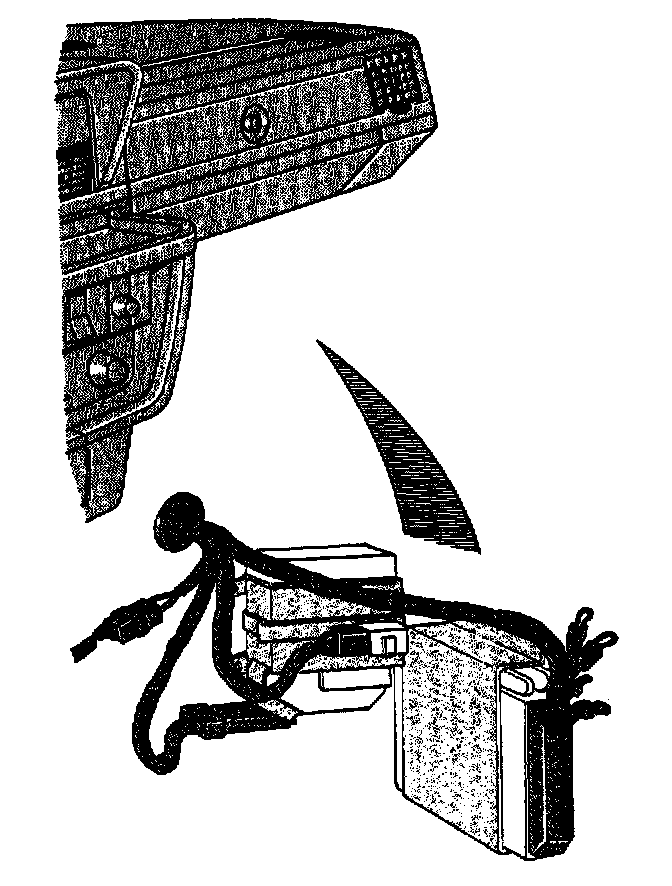

MFI LH 2.4/3.1 Control Module, DI EZ 116 K Control Module, And System Relay
Dashboard, right-hand side, inside trim.

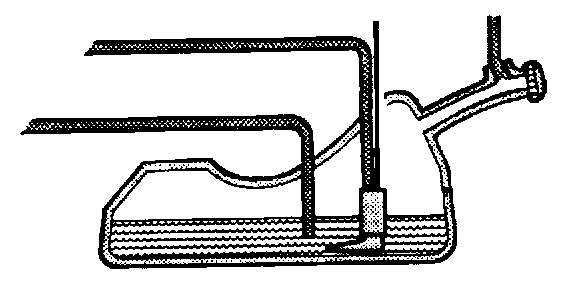

Tank Pump:
In the fuel tank.

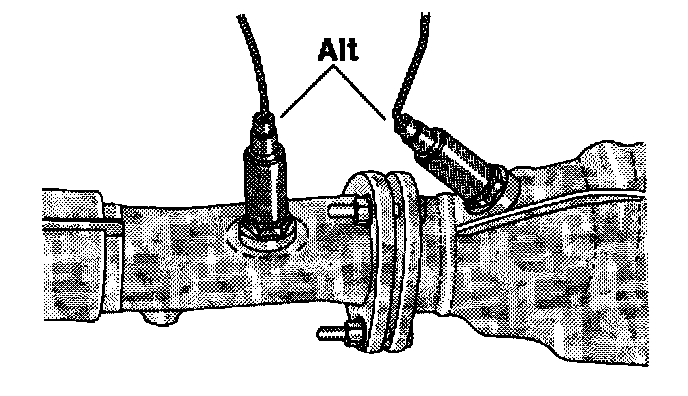

Heated Oxygen Sensor (HO2S)
1989-1990: In the front pipe before the TWC.
1991: In the TWC.

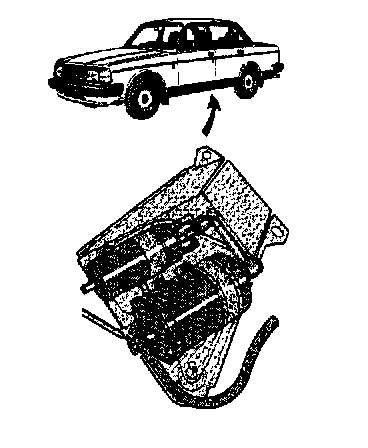

Fuel Pump (FP) And Fuel Filter:
On a shelf below the back seat, beneath the car.

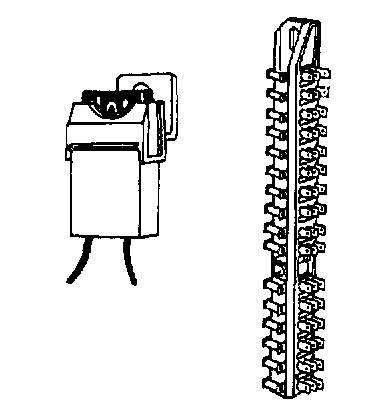

Fuses:
Left-hand side of driver's kick panel.
System fuse located in left hand side of engine compartment, next to the battery.
ENGINE COMPARTMENT

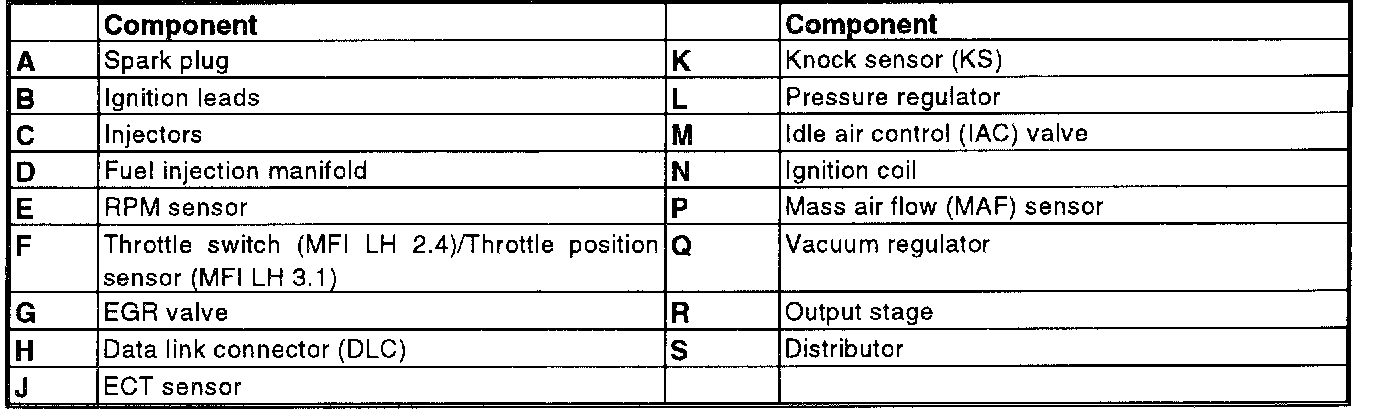

Component Index:

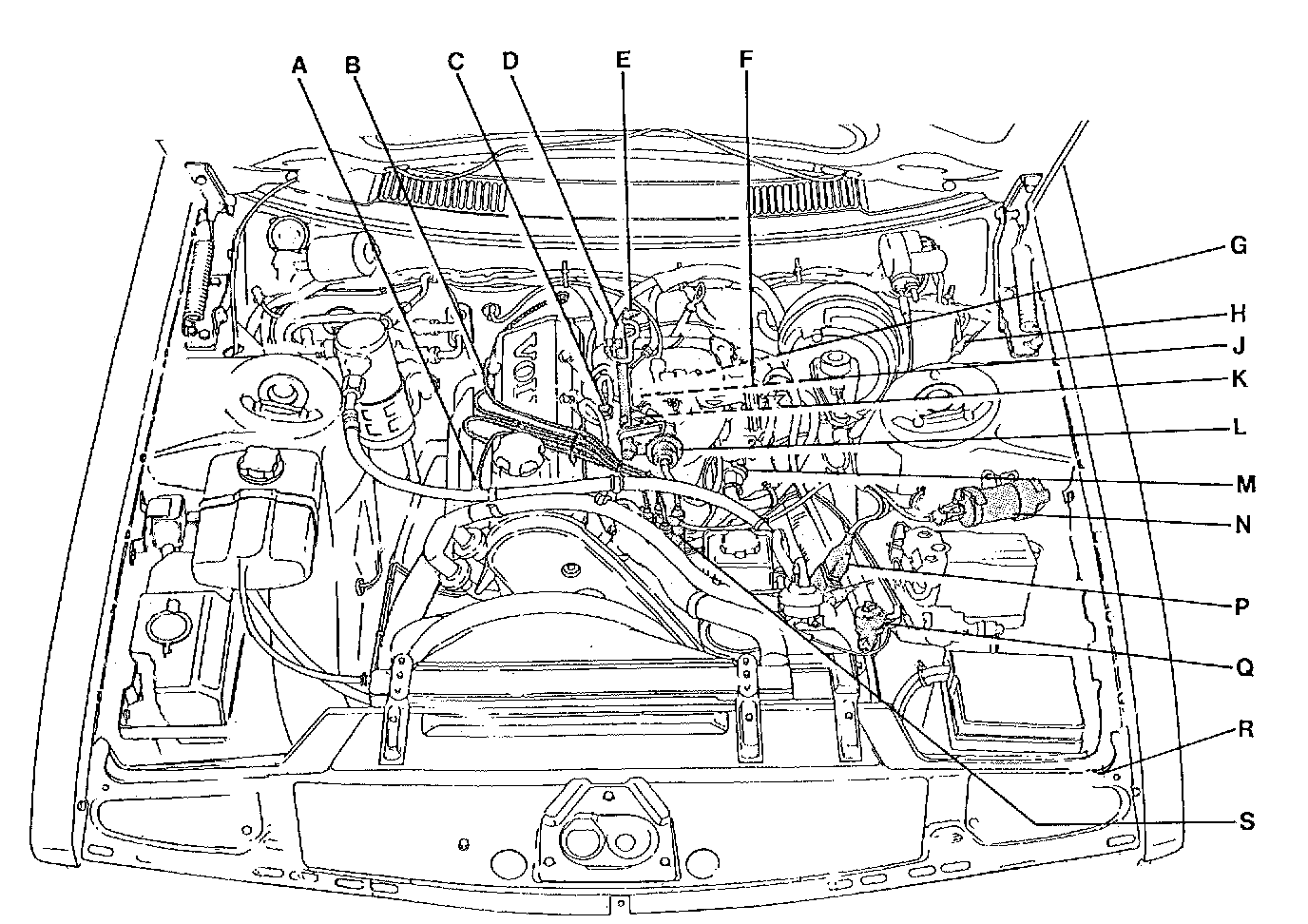

Underhood Component Locations:
